Product parameters
IVY Latching Relay

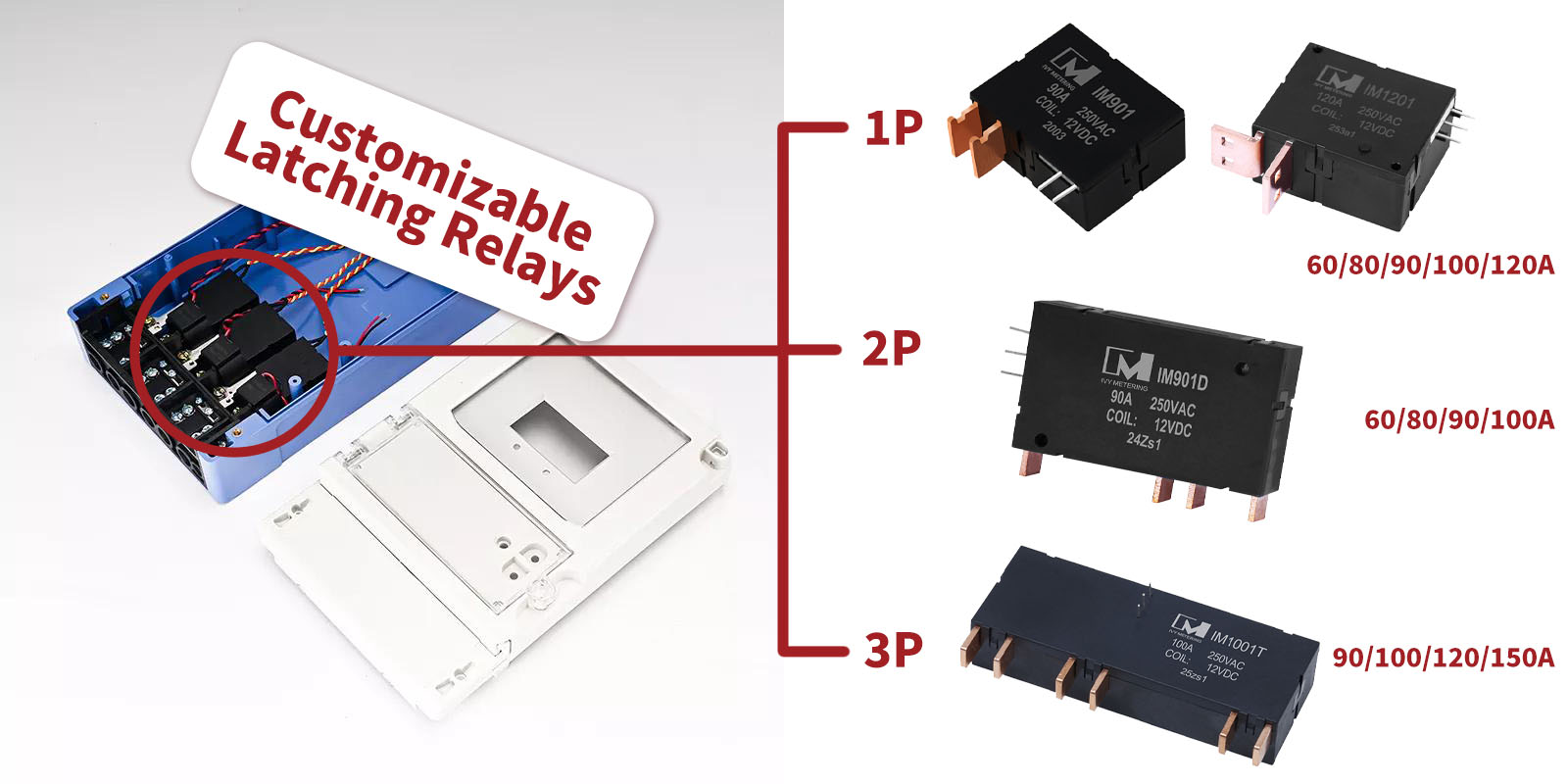

IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of latching relays spanning from 32A to 200A for single-phase Two-phase and three-phase switching purposes. our relays meet the industry's highest performance standards and offer the best value in the energy management market. In particular, we have developed an innovative relay switch-motor latching relay.

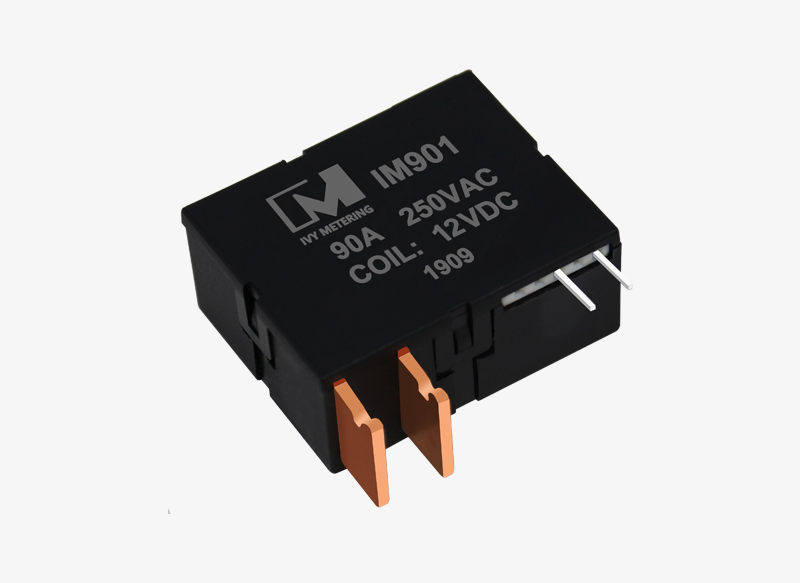

IM901 90A High Power Magnetic Latching Relay
Switching Capacity:90A, 250VAC
Single/Dual Coil Optional
Dimension:38*30*16.5mm
4kV dielectric strength between coil and contacts
Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt
RoHS compliant materials and process
IEC62055-31 UC2/UC3 Certified
Product Parameters
Contact Form: 1A/B
Contact Material: AgSnO2
Max. Switching Voltage: 250VAC
Max. Switching Current: 90A
Max. Switching Power: 22500VA
Contact Resistance： <2mΩ
Pick-up Time： 20ms
Release Time： 20ms
Electrical Endurance： 10000 Cycles
Mechanical Endurance： 100000 Cycles
Temp.Rise： ≤55K When Ambient 40℃
Application
- Prepayment energy meter
- Smart meter
- Solar PV System, EV Charger
- Concentrated meter reading system
- Street lamp control system
- Compound switch, Combination switch
- Automatic control device/ system
- AMR system
- Elevator control
