Types of transformers

Pulished on Sep. 01, 2020

Transformer also known as instrument transformer. It is the general name of current transformer and voltage transformer. It can change high voltage to low voltage and high current to low current, liver measurement or protection system.Next,let me introduce these two kinds of different transformers.



The basic structure of the voltage transformer is similar to transformer. It also has two windings, one is called primary winding,and the other is called secondary winding. Both of windings should be installed or wound around the iron core. There is insulation between the two windings and between the windings and the iron core, so that there is electrical isolation between the two windings and the iron core.



current transformer

The current transformer is a kind of measuring devices, which can convert the primary side high current into the secondary side low current.It's a little winding circle number, series in the current need to measure the line, so it often have all the current flows through the line. It has more secondary winding circle number, and it can concatenated in measuring instrument and protection circuit. When the current transformer actives, its secondary loop is always closed. So the measuring instrument and protection circuit in series with the coil impedance is very small. The working state of the current transformer is nearly closed. When we talked about this, I have to say the current transformers of IVY Metering. We have a wide variety of current transformers, including DCT,NCT and anti-theft CT, high accuracy current transformers, open core transformers with 500MT of their own transformers and so on.It website is https://www.ivy-metering.com

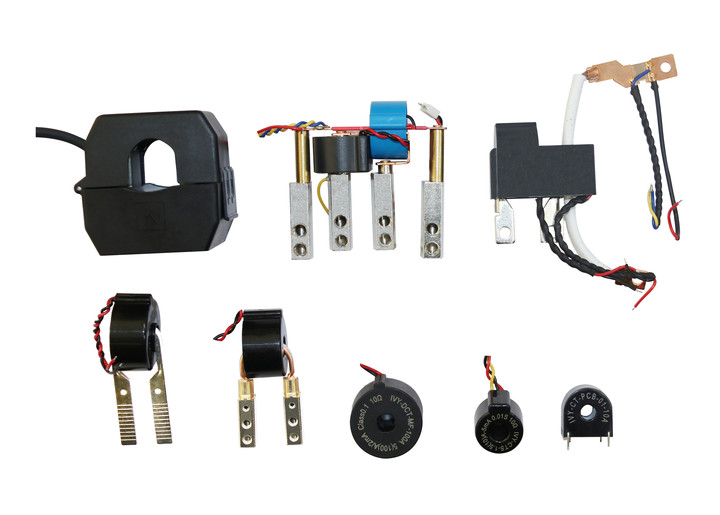

Types of transformers

The above is the analysis of transformer classification I Shared to you. If you have any help, please do not hesitate to contact IVY.
