IM-NE801A UL 40A 277VAC Coil 12VDC 2 Form A General Purpose Power Relay for Industrial Automation

Share :
Product parameters

Product Details

IM-NE801A is a 40A monostable power relay, also called general purpose relay, pcb relay, industrial relay, and new energy relay. with low coil-holding voltage for reduced power consumption. The Relay are PCB mounted with two contacts (2 Form A) for easy board assembly. IM-NE801A allows for the cut-off of all 2 phases plus neutral simultaneously and meets the necessary Short Circuit Current Rating to pass UL and IEC standards for EV charging equipment. With its high capacity switching and carry current capability, this relay is suitable for various applications such as ev charging, industrial automation, power generation, and solar.


Low Temperature Rise; Sealed Structure to Resist Harsh Environment; Strong short-time overcurrent carrying capacity, the relay can withstand 3 times of 1000A 1ms overcurrent, and the contacts will not be damaged, and can continue to work normally to open and close. Its contact gap can be up to 3mm, and the contact gap of the general relay is about 0.8mm or 1.5mm. which improves the tensile arc resistance of the contact and prolongs the service life of the relay.

IM-NE801A UL 40A 277VAC Coil 12VDC 2 Form A General Purpose Power Relay for Industrial Automation


It's main features as follow:

- Mounting type: PCB mounted through hole

- Contact arrangement: 2 form A (NO)

- Rated coil voltage: 12VDC/24VDC

- Maxmum contact voltage: 277VAC

- Contact gap: 3mm (@4kV overvoltage)

- Number of operations: 50 000 cycles @32A, 230-250V

- Contact resistance/load category: CC2


2.Technical Parameters:

Dimension(mm)49×30×26.5
Weight ( g )≈70g
Contact Arrangement2A
Contact MaterialAgSnO2
Environment TemperatureOperation:-40℃~85℃ ; Storage:-40℃~125℃
Continuous Current40A
Max. Switching Voltage277VAC
Initial Contact Resistance10mΩ (at 20A)
Insulation Resistance100MΩ, at 500VDC, 50%RH
Mechanical Endurance1×10^6 ops
Electrical Endurance

50000 ops@32A 230VAC

20000 ops@40A 230VAC

Power Consumption1.8W/3.0W
Rated Voltage12VDC/24VDC
Pick-up Time30ms. typical
Release Time10ms. typical
Dielectric withstanding voltageAcross Open Contact801A: 4000VAC 1min
Coil to Contact4000VAC 1min
Shock Resistance20g, 11ms
Dielectric Strength500Vrms, 1 min


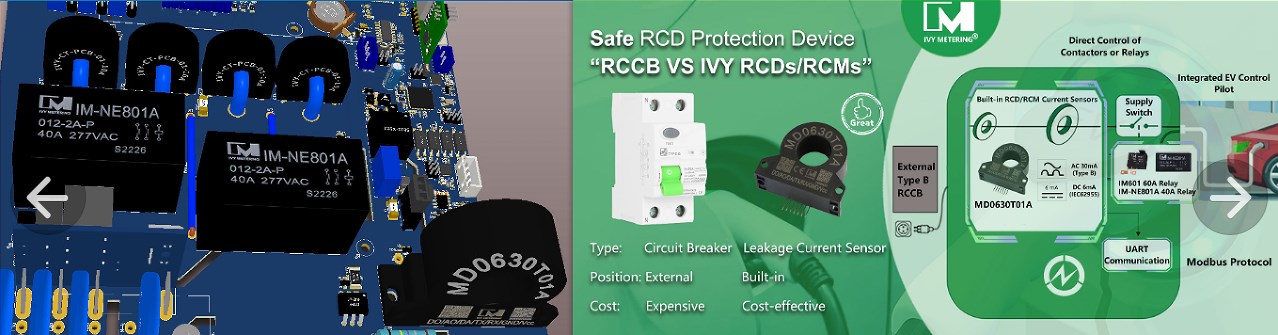

3. Typical Application

Electric Vehicle Charging

Solar Inverter

Industrial Motor Control

Home Automation
