Product parameters
Product Introduction
IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of latching relays spanning from 40A to 200A for single-phase Two-phase and three-phase switching purposes. Our relays meet the industry's highest performance standards and offer the best value in the energy management market.
In particular, we have developed an innovative relay-motor latching relay. IVY latching relays are highly customisable with many variants of terminal arrangements. Compared with the magnetic latching relay, our motor latching relay has 500mT permanent magnetic immunity, preventing contacts from being interfered by magnetic fields. And, the size is much smaller.
Product Feature

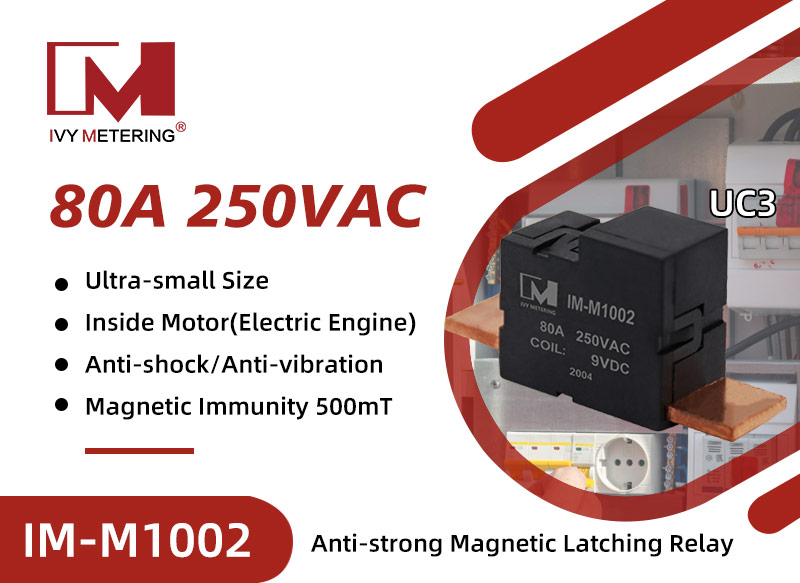

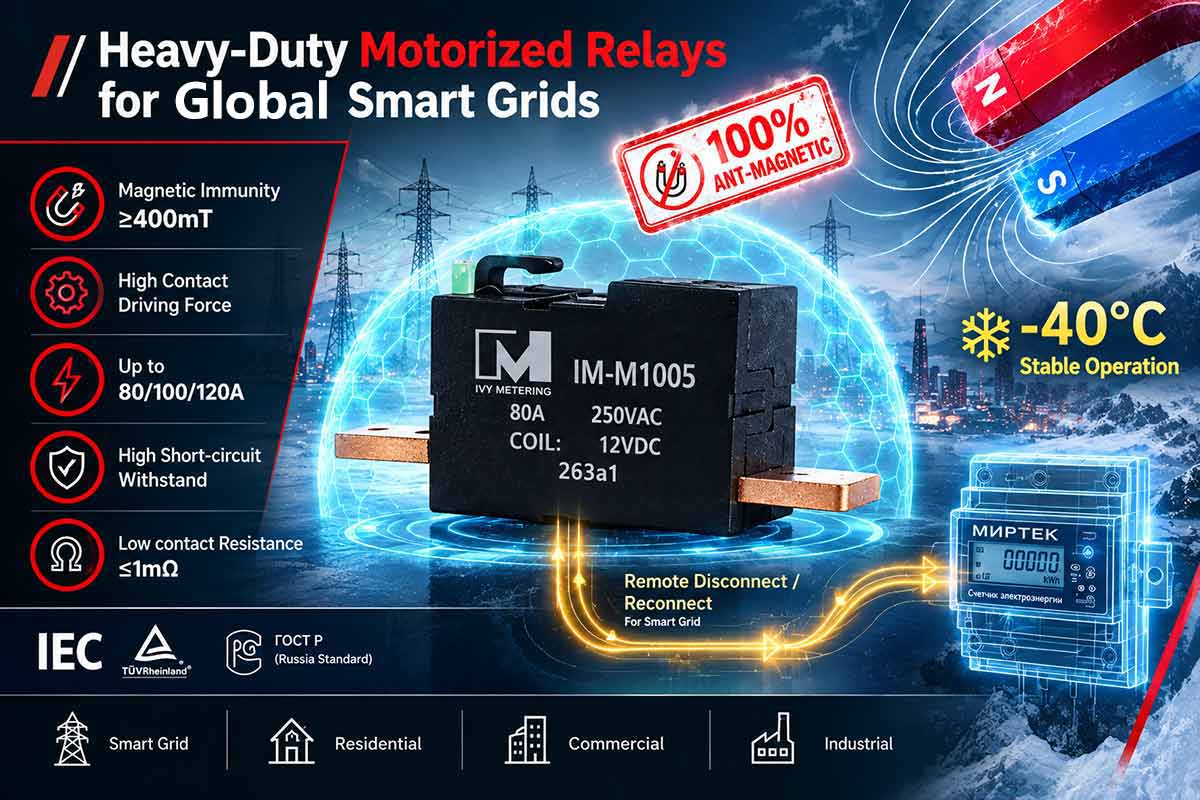

Mode: IM-M1005(Now replaces IM-M1002)
Contact Capacity:80A 250VAC
Contact Form: Single Phase/Pole
According to RoHS requirements
Large switching power with a small body
Big strength of motor-driven force, anti-shock/anti-vibration
Permanent magnetic strength to keep stability, and save power consumption
Small contact resistance and little self-consumption with reliable working
Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt
IEC62055-31 UC3 compliant with Appearance Patent
Application Scenarios
1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation control equipment, etc.
Product Parameter
Basic Data | Dimension (mm) | 26.5*23.5*13.8 | |
Weight | ≈40g | ||
Contact Form | 1A/1B | ||
Contact Material | AgSnO2 | ||
Ambient Temperature | -20~+55℃ | ||
Vibration | 1.5mm(DA),10 to 55Hz | ||
Shock | 1000m/s²,(100G) | ||
Power Consumption | ＜3W | ||
Specifications Data | Rated Voltage | 9V | |
Max. Switching Current | 80A (250VAC) | ||
Surge Immunity | 6000A/10ms | ||
Motor Resistance | 14±2Ω | ||
Contact Voltage | 60mV | ||
Contact Resistance | ≦1.0mΩ | ||
Dielectric Strength | Micro-motor to contact | ＞4000VAC,50/60Hz,1 Min | |
Across open contacts | ＞2000VAC,50/60Hz,1 Min | ||
Electrical Endurance(120 cycles/H) | 5,000 Cycles | ||
Mechanical Endurance(3600 cycles/H) | 100,000 Cycles | ||
Pulse Time | Advise 30ms~40ms | ||
Pick-up Time (@9V) | ≦25ms | ||
Release Time (@9V) | ≦25ms | ||
Insulation Resistance | ≧1000MΩ（500VDC） | ||
