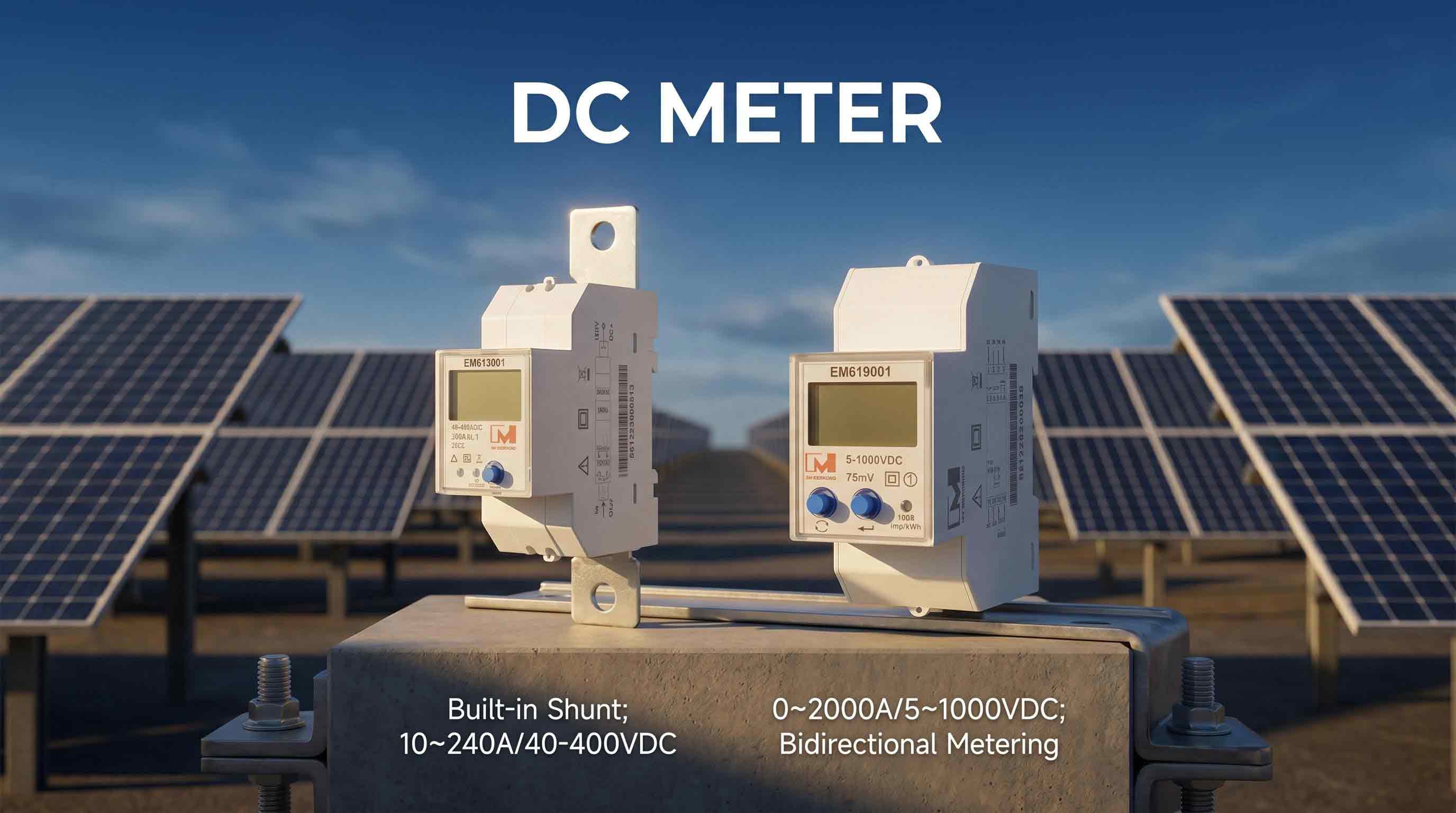

IVY Brand EM613001&EM619001 multi-function DC energy meter

Pulished on Jul. 13, 2022

The multi-function DC energy meter can directly measure the power consumption of the DC power consumption system, and can be equipped with an RS485 interface for data exchange with the microcomputer. The multi-function DC energy meter is suitable for the use of battery, solar panel, communication power supply and other DC signal equipment to test the charging and discharging electric energy and measure the reference electric energy value.


The multi-function DC energy meter is a power meter that integrates measurement, metering, LCD display and communication. It can measure grid voltage, current, power, and electric energy. The communication interface supports the MODBUS-RTU communication protocol. The multi-function DC power meter is a high-performance digital smart power meter that integrates data acquisition and control functions, with data analysis and transmission functions; it can replace the DC ammeter, DC voltmeter, DC power meter, relays, transmitters, etc. The multi-function DC energy meter can directly measure the power consumption of the DC power consumption system, and can be equipped with an RS485 interface for data exchange with the microcomputer. The multi-function DC energy meter is suitable for the use of battery, solar panel, communication power supply and other DC signal equipment to test the charging and discharging electric energy and measure the reference electric energy value.


IVY multi-function DC energy meters (EM619001/EM613001/EM613005/EM613002) can have infrared communication interface and RS-485 communication interface, support Modbus-RTU protocol and DLT645-97(07) protocol at the same time; can have relay alarm output and Switch input function; according to different requirements, set the ratio, alarm and communication through the buttons on the instrument panel; with switch event record (Modbus protocol), programming and event setting record (645 protocol), data instantaneous and timing freeze functions (645 protocol), the function of recording large and small values of voltage, current and power.


It is suitable for power measurement and electric energy measurement of DC signal equipment such as charging piles, batteries, solar panels, etc. It can also be used in modern DC power supply and distribution systems such as industrial and mining enterprises, civil buildings, and building automation.


The product is composed of measurement unit, data processing unit, communication unit, display unit, etc. It has the functions of electric energy measurement, data processing, real-time monitoring, and LCD display. The electric energy meter has the characteristics of high overload, high precision, low power consumption, automatic storage of power failure data, and long life. This meter complies with the relevant technical requirements of Q/GDW1825-2013 Technical Specifications for Direct Electric Energy Meters, GBT29318-2012 Electric Vehicle Off-Board Charging Electric Energy Measurement, and Q/GDW364-2009 Technical Specifications for Single-Phase Smart Electric Energy Meters.
