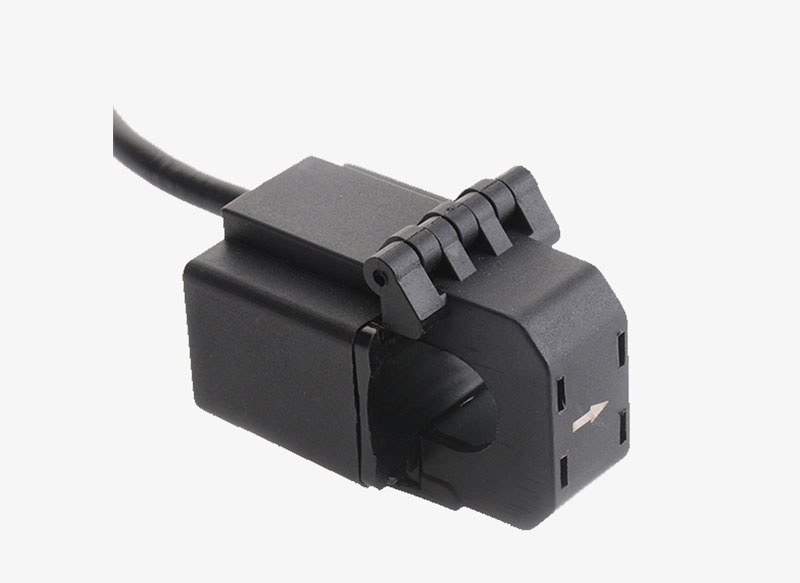

IVY-CT-OC-24-12 CE RoHs High Accuracy 100A 33.3mA Split Core CTs Current Transformer

Share :
Product parameters

Product Detail

The split core current transformer (CT) uses high-quality ferrite as the magnetic conductive material, which has the characteristics of opening and closing, small magnetic circuit loss, and high magnetic field density. Small size, stable performance, suitable for various complex environments. In addition, it can be quickly assembled and disassembled without power off, making work more efficient. It is used for measurement and monitoring.


Product Feature

Sealed, suitable for outdoor use

Open-ended design, no need to cut off power, faster assembly and disassembly, and more efficient work

Hinge connection, the number of opening and closing is guaranteed

The contact surface of the magnetic core adopts mirror processing to make the CT contact surface closer


IVY-CT-OC-24-12 High Precision 3000:1 50A 100A 15mA Output Current Monitoring Split Core Current Transformer

Product Parameter

Rated input current 5A~100A

Applicable frequency range 50~60Hz

Rated output current 1.67mA~33mA

Working temperature -40℃~80℃

Transformation ratio 3000

isolation withstand voltage >2kVAC

Accuracy level 1.0  Ratio difference ≤±0.3

Load resistance ≤10Ω  phase difference ≤10’

Internal resistance ≤400±10Ω  series connection hole ≤φ12mm
