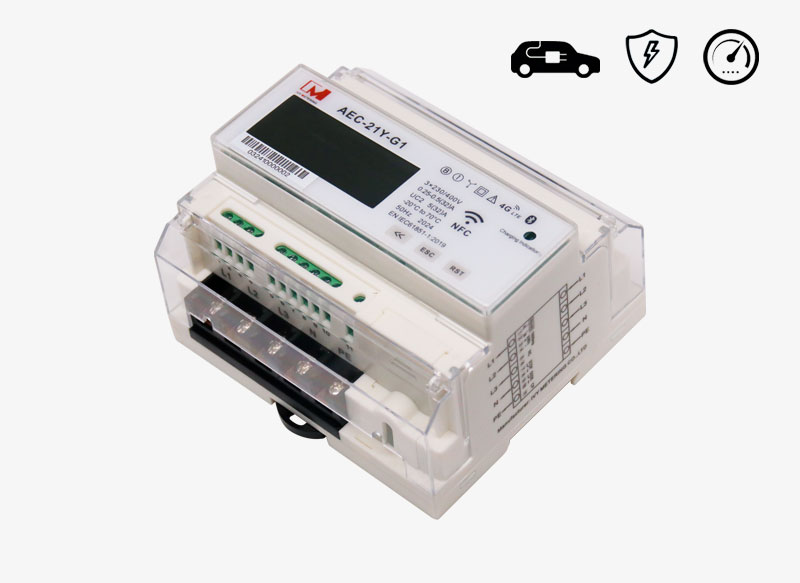

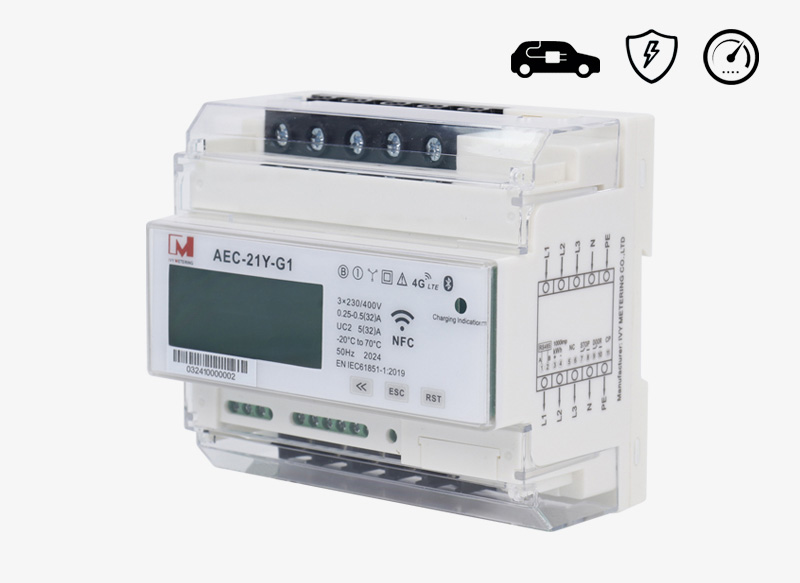

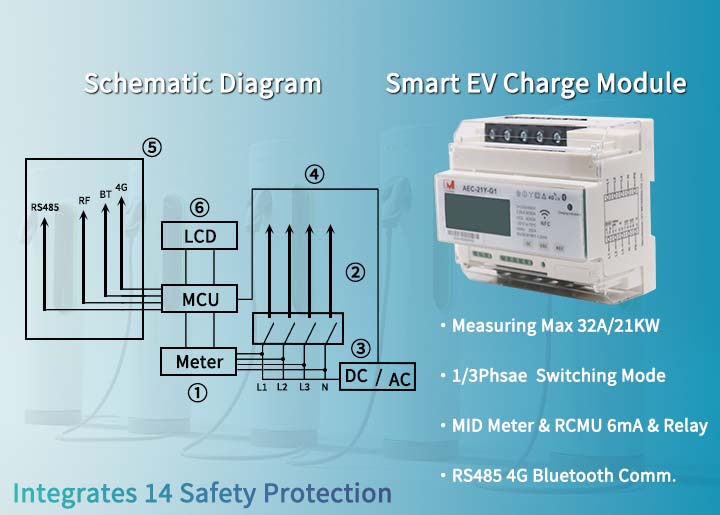

AEC-21Y-G1 Introduction
As an integrated smart charging module, AEC-21Y-G1 is equivalent to a small charging station. It supports wall or pole mounting, type 1&2 socket or plug options, and single-phase or three-phase charging. Integrates charging, metering, and 14 types of safety protection, ideal for home and commercial EV charging. Besides, EV charger boxes can be customized, and compared with other brands of charging piles on the market, the price is more advantageous.

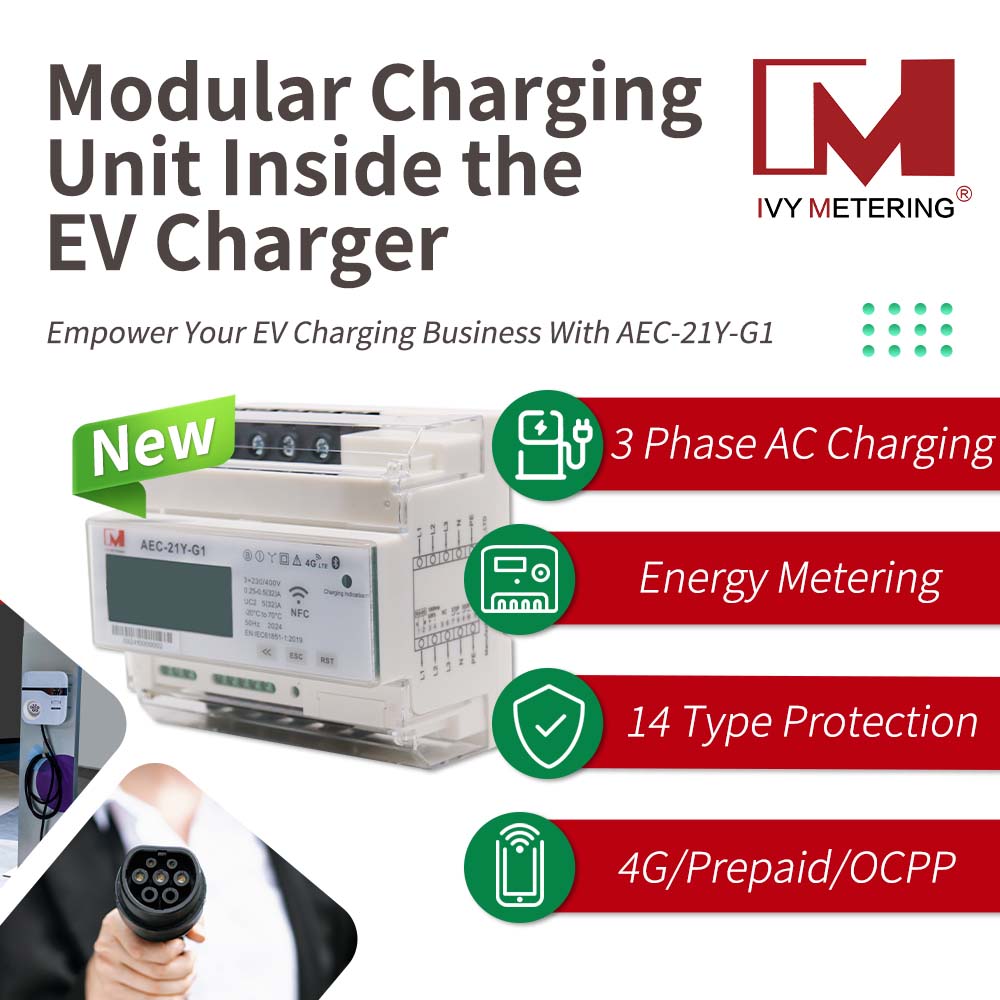

Product Features
• Complies with standard IEC61851-1 (mode 3 charging)
• Metering funtion
• Supports M-bus protocol, 4G, RS485 communication, OCPP-J-1.6/Wi-Fi/Ethernet pending
• Modular design, rail installation
• Adjustable charging current (maximum 32A)
• Status LED and LCD display
• RCMU detects 6mA or greater DC leakage current detection
• 14 Type safety protectoion, inclduing PEN fault protection, etc
Product Parameters
Charging & Metering Parameters | Charging Type | AC charging (three-phase & single-phase) |
Charging Mode | Mode3 | |
Charging Voltage | 3*230/400V±15%（three phase）； 230V±10%（single phase）； | |
Charging Current | Maximum 32A | |
Charging Power | Maximum 21KW(22) | |
Pulse Constant | 1000imp/kWh | |
Frequency | 50/60Hz | |
Accuracy | Class 1.0 | |
Leakage Protection Parameters | AC leakage current threshold | 30mA |
DC leakage current threshold | 6mA | |
Communication Parameters | Communication | 4G |
Bluetooth4.0-5.0（2.4 GHz） | ||
NFC（For charging by swiping card） | ||
RS485（For parameter configuration, etc.） | ||
Communication Protocol | IVY-BUSprotocol（IVY Own agreement） | |
Other Parameters | Dimensions | 123.5*110*75mm |
Weight | 0.6kg | |
Operating Temperature | -25～70℃ | |
Storage Temperature | -40～80℃ | |
Humidity | average≤75%，maximum≤95% | |
Protection Level | Determined by the charging pile shell, the module itself IP30 | |
Applicable Charging Gun Type | Type 1 (SAE J1772)；Type 2 (IEC 62196-2) |

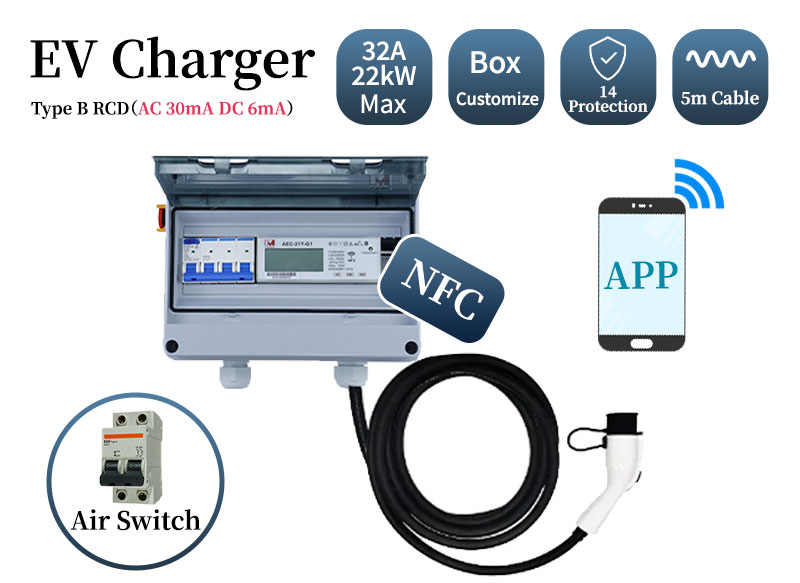

Product Function

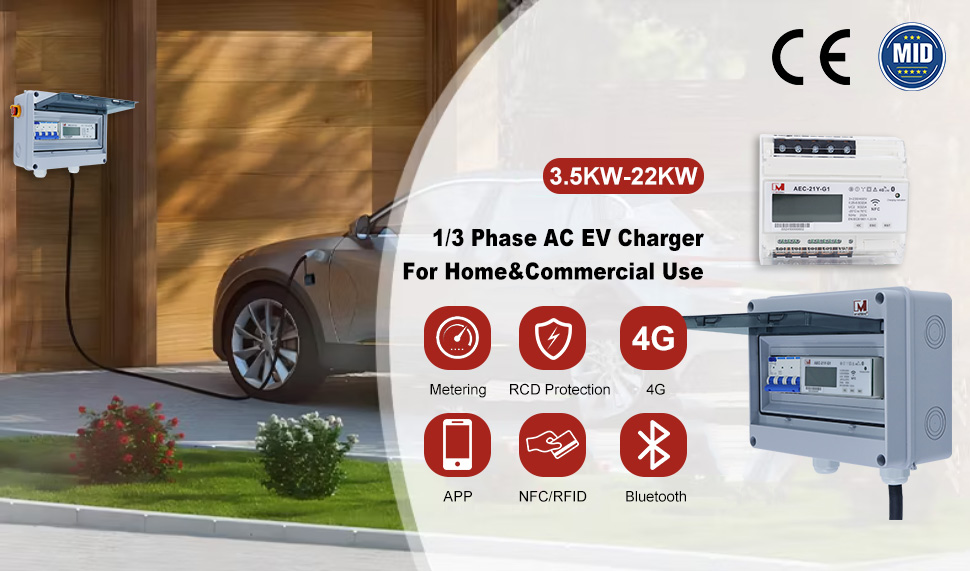

【Fast Charging】32A electric vehicle charging station can achieve high-speed charging, significantly shortening the charging time of electric vehicles equipped with Type 1 & Type 2 (IEC 62196-2 & SAE J1772 standard) sockets.
【Multiple Protection】Our electric vehicle charger has better quality and higher durability. Safety protection measures such as overcurrent protection, overvoltage protection, under-voltage protection, leakage protection, overheating protection, IP66 waterproof level, etc. They can ensure the safety of your car charging.
【4G Communication】Remote communication functions: with 4G remote communication, can achieve control, authorization, payment, setting, and other functions
