What should be considered in the design of meter latching relays?

Designing a suitable latching relay for an energy meter requires careful consideration of performance, safety, reliability, fault tolerance, and environmental suitability. The relay should be able to withstand the load of the energy meter, maintain a stable and reliable latched position, and be rugged enough to withstand a variety of environmental conditions and potential faults.

Here is a detailed description of some key design considerations:

1. Performance requirements:

Contact switching load:

The relay must be able to switch the voltage, current, and type of power (AC or DC) required for the energy meter to operate.

Load characteristics:

Consider the type of load the relay will be switching, as different loads (resistive, inductive, etc.) may have different switching requirements.

Input power:

The rated input power (coil power) of the relay should be sufficient to energize and latch without overheating or damaging the relay.

Actuation time:

The relay should have a response time fast enough to accommodate the control system of the energy meter.

2. Safety requirements:

Insulation level:

Ensure that there is sufficient insulation between conductors of different potentials inside the relay to prevent electrical hazards.

Lightning impulse withstand voltage:

The relay should be able to withstand surges and lightning strikes without failure.

Electrical clearance and creepage distance:

Sufficient electrical clearance and creepage distance should be maintained between insulated conductors to prevent arcing and breakdown.

Temperature rise:

The relay should not overheat during operation, and its temperature rise should be within an acceptable range.

Fire resistance:

The relay should be made of fire-retardant materials.

3. Reliability and durability:

Electrical life:

The relay should have a sufficiently long electrical life to withstand repeated switching cycles.

Mechanical life:

The relay should have a sufficiently long mechanical life to withstand repeated operations of the locking mechanism.

Failure rate:

The relay should have a low failure rate to ensure the reliable operation of the meter.

4. Fault resistance:

Overload: The relay should be able to withstand short-term overload without damage.

Short-circuit current: The relay should be able to withstand short-circuit current without permanent damage.

Magnetic field: The relay should have good resistance to external magnetic field.

Shock and vibration: The relay should be able to withstand shock and vibration during transportation and use.

In summary, a latching relay is a wise choice for an electric meter because it can provide a stable power supply and keep the meter running normally when there is a problem with the power grid. In addition, it also has the advantages of low power consumption and lower heat generation, which is conducive to extending the life of the relay.

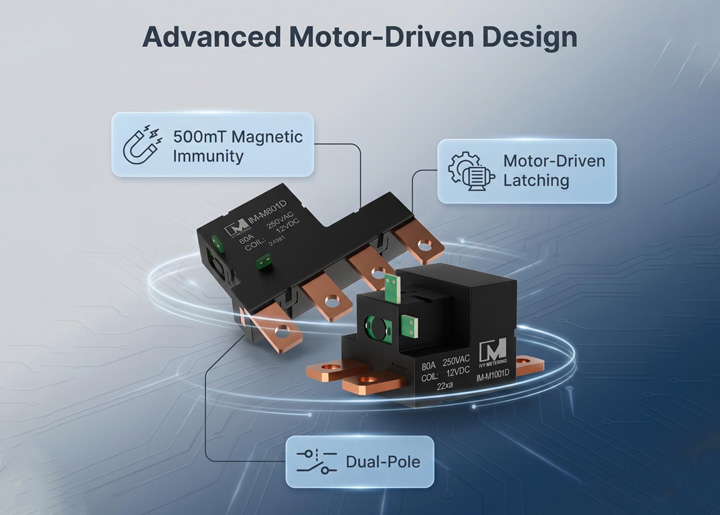

As a professional manufacturer of electric meters and latching relays, IVY Metering has rich production experience and a wide range of products, and is committed to providing customers with high-quality electric meters and relays. It is worth noting that the emergence of motor latching relays makes our products more advantageous and unique in the market. If you are interested in our relays, please do not hesitate to contact us.
