D129072 100A Alarm Output Split Core Current Sensor M-bus Smart Sensor for Electrical Measurement

Share :
Product parameters

Product Details

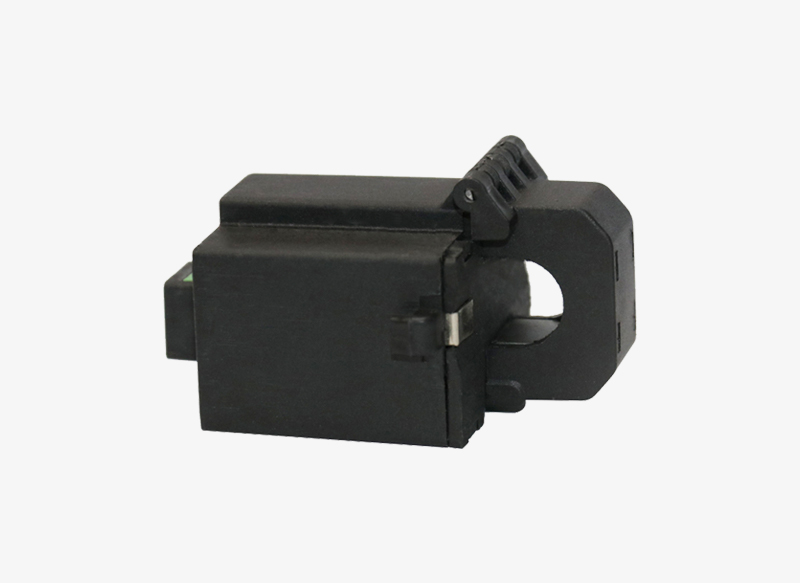

D129072 is a split core (open core) current sensor for EV Charging Pile Station. Its structural design ensure fast speed load and unload under constant power, which is greatly improve the construction efficiency. The contact surface of iron core is machined by mirror surface, ensures that the contact surfaces are more compact and restless. widely used in smart meter, smart grid, monitoring device, EV charger, circuit protection, and machine equipment etc.

D129072 Real-Time Monitoring Alarm System 100A Split Core Current Transformer AC Current Sensor

1.With M-BUS communication, current and temperature values can be read.(voltage,current,Kwh can be customized)

2.Split core structure, without destroying circuit, easy installation. machined by mirror surface, the contact surfaces are more compact and restless.

3.Alarm output function: Overheat alarm/overcurrent alarm. With the output function of over current or over temperature alarm, by setting the upper limit of the current or temperature.


D129072 Real-Time Monitoring Alarm System 100A Split Core Current Transformer AC Current Sensor

Product Parameters

Measuring Current Range: 200mA~100A

Current accuracy : Class 1

Temp accuracy: 2℃

Rated frequency: 50~60Hz

Threading bore dimension: ≤φ12mm

Response time: 200mS

Withstand voltage: >3000Vac

Temp range: -20/+85℃


Dimension&Application

D129072 Real-Time Monitoring Alarm System 100A Split Core Current Transformer AC Current Sensor



Cautions of Smart Sensor:

1.Current value- Please specify your measurement range as per your application, for example if you are going to
   use it for detecting and sensing mA level or high  current range such as 500A/600A shall be first factor.
2.AC,DC,or both AC&DC shall be the second factor. Now current sensor on the market usually are AC or DC type.
   But if you need both AC& DC you may need to use IVY brand- AC DC leakage sensor.
3.Parameters-Please confirm what kind of parameters shall be measured or detected. For example our smart sensor
   with shunt can readout current, voltage,kWh, kVar, Cosφ, Hz, THF, current cycle, starting waveform.
4.Communication-RS485,M-bus, UART serial port are optional, if you have more requirements we can also develop for you.
5.Installation Method, after making above decision you may also need to confirm the output terminal type, for example we have
   shunt / terminal / pillar / pins/ cable etc.
6.
As there are many models of smart electrical sensor, plz refer to the detailed specification and use it as per the instruction.
