Product parameters
Product Details
D129072 is a split core (open core) current sensor with M-bus communication. This split core current sensor selects high quality ferrite as magnetic conductive material, with the characteristics of high precision, stable performance, small size, convenient installation, applicable for current & temperature measurement and monitoring communication; Its structural design ensure fast speed load and unload under constant power, which is greatly improve the construction efficiency. Widely used in smart meter, smart grid, monitoring device, EV charger, circuit protection, and machine equipment etc.

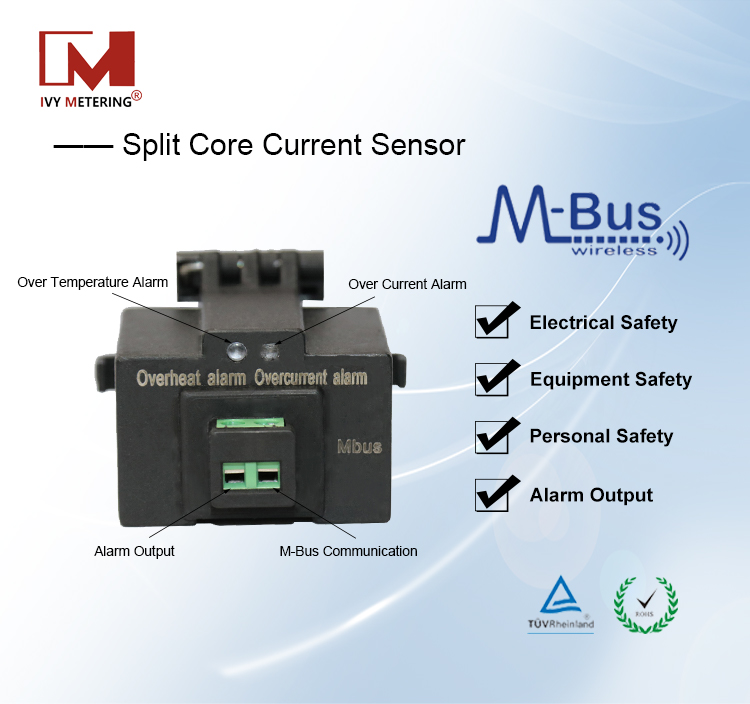

1.With M-BUS communication, current and temperature values can be read.
2.Split coce structure, without destroying circuit, low cost, easy installation, machined by mirror surface, the contact surfaces are more compact and restless.
3.Alarm output function: Overheat alarm/overcurrent alarm. With the output function of over current or over temperature alarm, by setting the upper limit of the current or temperature.
Product Parameters
Measuring Current Range: 200mA~100A
Current accuracy : Class 1
Temp accuracy: 2℃
Rated frequency: 50~60Hz
Threading bore dimension: ≤φ12mm
Response time: 200mS
Withstand voltage: ＞3000Vac
Temp range: -20/+85℃
Applications
1:Current measurement, monitoring and protection for electrical wiring and equipment.
2:Current and power measurement for electric motors, lighting, air compressor,heating and ventilation system, air-condition equipment and automation – control system.
3:Current, power and energy monitoring device.
4:Relay protection device.

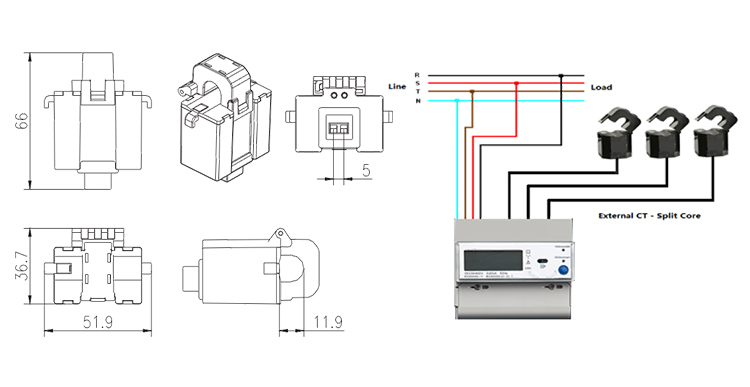

Dimension
