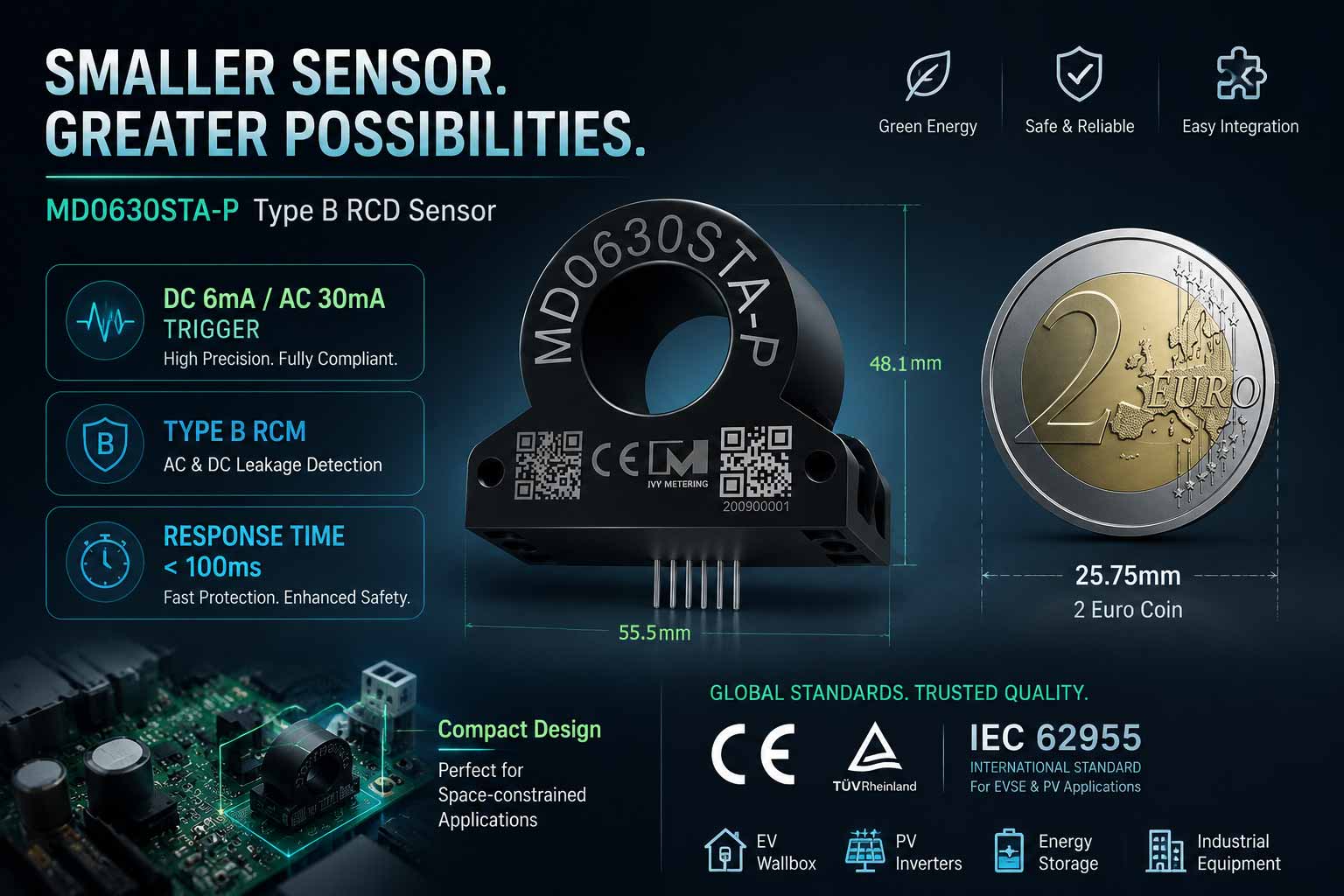

MD0630STA-P earth leakage sensor detect both AC and DC ground faults in a very small, PCB-style form factor. The RCD module is designed for integration directly into inverters. Outputs way is open collector output. With the characteristics of high sensitivity, accurate measurement, small size, and integration. When a DC leakage current of 3~6mA or an AC leakage current of 15~30mA is detected, an alarm signal will be output.
The ground fault detection module is intended for the detection of DC and/or AC residual currents in 50Hz/60Hz AC or DC installations. Residual current detection options for IEC based requirements are 30mA AC & 6mA DC or 20mA AC & 6mA DC for UL requirements. It can not only detect AC fault current, DC pulsing and smooth DC fault current, but also sinus wave AC fault current at a high frequency up to 1kHz. IVY MD series leakage current sensors are optimized for fast, low-cost assembly, combined with the highest product and production quality. In addition to the use of PV inverter. Also suitable for EV charger, medical instruments, UPS, smart home, industrial machines, fire distribution cabinet, IOT etc. Protecting personal and electrical equipment safety.
Product Advantages
DC 2~15mA/AC 3~100mA micro current detection
DC 3~6mA/AC 15~30mA Alarm (Needn’t Set)
Self-test Function, Open Collector Alarm Output
Integrated Design, PCB/Vertical Type Installation
Robust mechanical and electrical design suitable for harsh environmental conditions
Electrical safety at low cost (compared to RCCB type B)
Compliant with standard IEC 62752 and UL 2231
Pin Definition
Solar PV Application
Running renewable energy systems efficiently requires a high level of availability, as well as effective protection against electrical safety hazards that may occur. IVY's extensive experience in the renewable energy industries ensures that your system is provided with the most advanced electrical safety equipment on the market. A wide portfolio of products works with virtually every type of array and measure at different system levels.
Compliance with the latest standards and code requirements for the photovoltaic industry
Integratable solutions for virtually all levels of photovoltaic systems, including arrays, inverters, and combiner boxes
Early detection of ground faults
Fufills ground fault detection requirements of UL 1741
Detects both AC and DC ground faults
Detects low-mA ground faults from both positive to ground and negative to ground
0 - 100 mA measurement range, AC/DC
Wide frequency range
