IM-M1002 Anti-magnetic Field 500mT 80A 250VAC 6VDC Control Latching Relay with 200 Micro Ohm Shunt

Share :
Product parameters

Prouduct Details

IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of latching relays spanning from 32A to 200A for single-phase Two-phase and three-phase switching purposes. our relays meet the industry's highest performance standards and offer the best value in the energy management market. In particular, we have developed an innovative relay switch-motor latching relay. IVY latching relays are highly customisable with many variants of terminal arrangements, which can be made to suit customer's needs. Shunts and current transformers can also be included to special order.

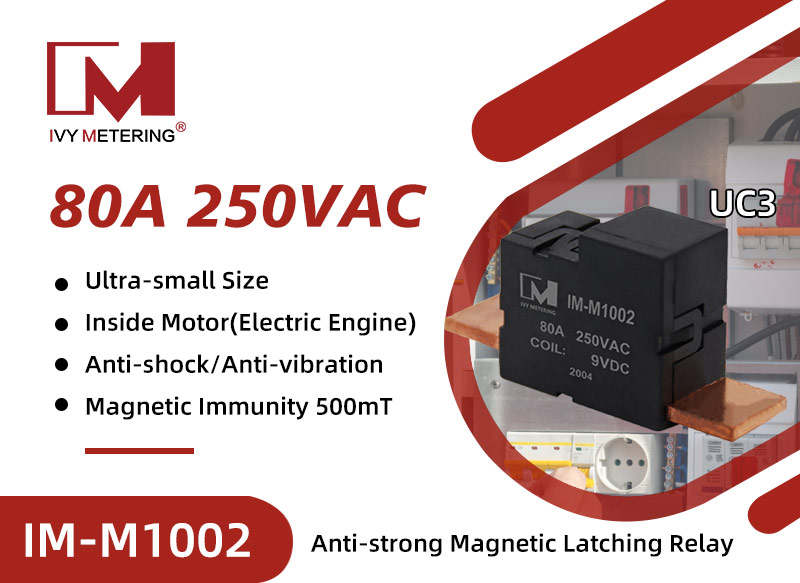

IM-M1002 is a small industrial bistable latching power relay with continuous current up to 80A, and switching 80A 250VAC. Used in utility meters and for solar, EV charger and energy conservation. Compared with magnetic latching relay, motor latching relay with 500mT permanent magnetic immunity, prevent contacts from being interfered by magnetic fields. And, the size is much smaller.


IM-M1002 Anti-theft Low Power Consumption 80A 250VAC 12VDC Mini Latching Relay for Smart Meter


Product Feature

Meet the requirements of anti-frequency magnetic field and magnetic interference in the national network.

According to RoHS requirements

Large switching power with mini body

Big strength of magnetic latching power, anti-shock of vibration

Pulse drive,economy of power consumption and no heat rising

Permanent magnetic strength to keep stability,and save power consumption

Small contact resistance ,and little self-consumption with reliable working

Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt

IEC62055-31 UC3 Certified with Appearance Patent


Application Scenarios

1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation equipment, etc.

4) New Energy Field: EV charger, PV Inverter


Product Parameter

Basic Data

Dimension (mm)

26.5*23.5*13.8

Weight

40g

Contact Form

1A/1B

Contact Material

AgSnO2

Ambient Temperature

-20~+55

Vibration

1.5mm(DA),10 to 55Hz

Shock

1000m/s²,(100G)

Power Consumption

3W

Specifications Data

Rated Voltage

9V

Max. Switching Current

80A (250VAC)

Surge Immunity

6000A/10ms

Motor Resistance

14±2Ω

Contact Voltage

60mV

Contact Resistance

1.0mΩ

Dielectric Strength

Micro-motor to contact

4000VAC,50/60Hz,1 Min


Across open contacts

2000VAC,50/60Hz,1 Min

Electrical Endurance(120 cycles/H)

5,000 Cycles

Mechanical Endurance(3600 cycles/H)

100,000 Cycles

Pulse Time

Advise 30ms~40ms

Pick-up Time (@9V)

25ms

Release Time (@9V)

25ms

Insulation Resistance

1000MΩ(500VDC
