IM-NE801A UL/IEC61851-1 32A 250VAC 12VDC PCB 2 Pole DPST-NO Power Relay for 22kW EVSE

Share :
Product parameters

Product Details

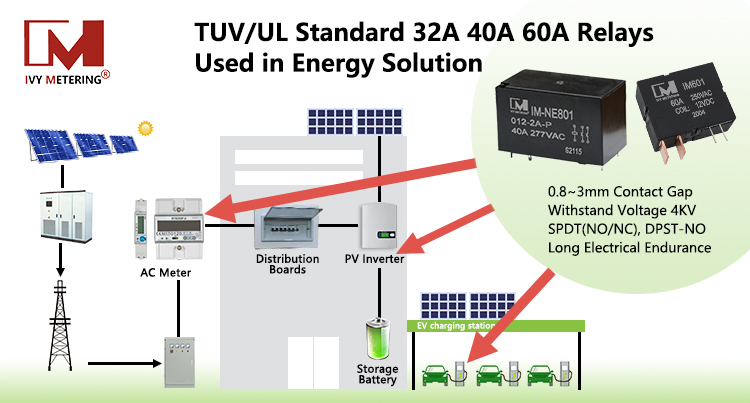

AC switching elements are a crucial part of safety and protection function in charging stations and cables. Key parts of the IVY line-up are the 40A IM-NE801A 2 pole power relay and 60A IM601 bistable relay. Both types are availabe with a mirror contact according to IEC 60947-1 and VDE / TUV/UL approvals. They can be used in the latest generation of wallboxes which fulfill either IEC 61851-1 or the recent IEC 62955 norm.

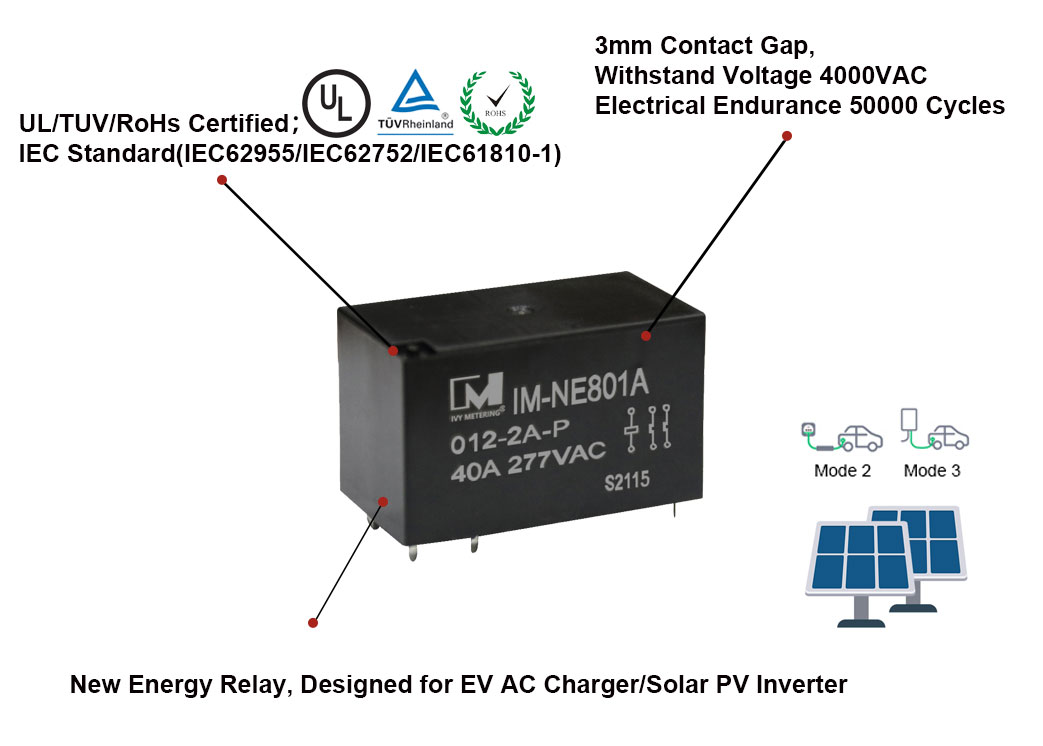

IM-NE801A is a UL/TUV certified 32A 40A Two-pole PCB power relay. It's main features as follow:

Continuous Current: 40A; with Contact Form:2A; High Dielectric Strength 4000VAC; Low Temperature Rise; Sealed Structure to Resist Harsh Environment; UL Certified, IEC61810-1 Compliant.

The relay has short-time overcurrent characteristics, can withstand three times of 1000A 1ms overcurrent, and the contacts will not be damaged, and can continue to work normally to open and close.

Short-time overcurrent (an overcurrent carrying capacity)


Compared with other power relays on the market, the main advantages of lie in 3mm conntact gap:

Its contact distance can be up to 3mm, and the contact spacing of the general relay is about 0.8mm or 1.5mm. In some ways this feature made contact between medium pressure can improve a lot, the higher the withstand voltage value, and also solve the problem of contact resistance increase rapidly, etc, under non-operation status it can avoid wrong operation or damage caused by external factors. which improves the tensile arc resistance of the contact and prolongs the service life of the relay.


IM-NE801A UL/TUV 40A Coil 12VDC PCB DPST NO 2 Pole Power Relay for 1PH 230VAC Mode 3 Charger


2.Technical Parameters:

Dimension(mm)49×30×26.5
Weight ( g )≈70g
Contact Arrangement2A
Contact MaterialAgSnO2
Environment TemperatureOperation:-40℃~85℃ ; Storage:-40℃~125℃
Continuous Current40A
Max. Switching Voltage277VAC
Initial Contact Resistance10mΩ (at 20A)
Insulation Resistance100MΩ, at 500VDC, 50%RH
Mechanical Endurance1×10^6 ops
Electrical Endurance

20000 cycles @40A 230VAC on-off ratio 1s:4s resistive load room temperature

50000 cycles @32A 230VAC on-off ratio 1s:9s resistive load room temperatur

Power Consumption1.8W/3.0W
Rated Voltage12VDC/24VDC
Pick-up Time30ms. typical
Release Time10ms. typical
Dielectric withstanding voltageAcross Open Contact801A: 4000VAC 1min
Coil to Contact4000VAC 1min
Shock Resistance20g, 11ms
Dielectric Strength500Vrms, 1 min


IM-NE801 IEC61810-1 32A 40A 250VAC Coil 24VDC DPST 2NO 2 Pole EV AC Power Relay


3.Ordering Information

IM-NE801     -     A    -     12   -    2A    -   P

Relay series:





Contact distance: A:3mm

Blank):Normal contact distance

Coil voltage:     12V  plz refer to above coil parameters

Contact form:    2A:2 poles-normally open  2B:2 poles-normally close

Environment-friendly:      P:Lead free(ROHS) (Blank):With lead
