Product parameters
IVY Latching Relay
IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of latching relays spanning from 32A to 200A for single-phase Two-phase and three-phase switching purposes. our relays meet the industry's highest performance standards and offer the best value in the energy management market. In particular, we have developed an innovative relay switch-motor latching relay.

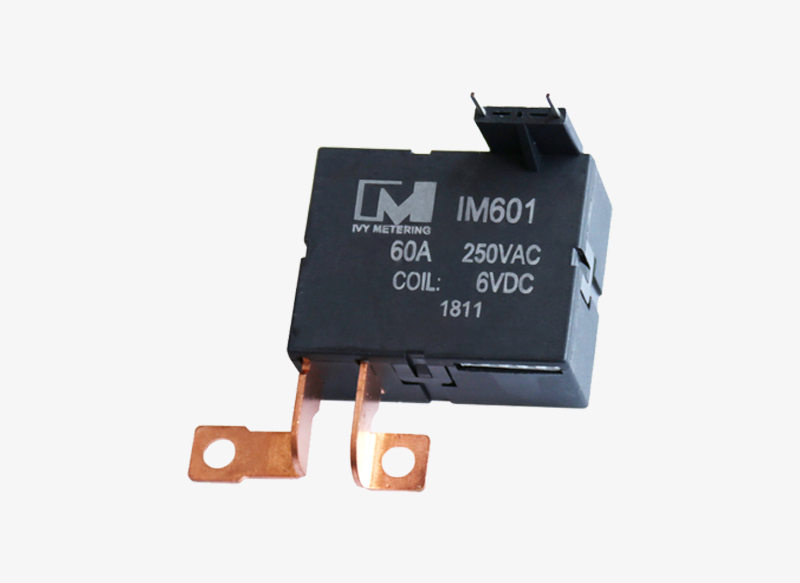

IM601 60A Bistable Magnetic Latching Relay
Switching Capacity: 60A, 250VAC; Single/Dual Coil Optional
Can be Used as EV Charger Relay/Solar PV Relay
4kV dielectric strength between coil and contacts
Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt
RoHS compliant materials and process
IEC62055-31 UC2 Certified
Application Scenarios
1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation equipment, etc.
4) New Energy Field: EV charger, PV Inverter
Product Parameters
Rated Load: 60A 250VAC
Contact Form: 1A/B
Contact Material: AgSnO2
Max. Switching Voltage: 250VAC
Max. Switching Current: 60A
Max. Switching Power: 15000VA
Contact Resistance: <1.5mΩ
Pick-up Time: 20ms
Release Time: 20ms
Electrical Endurance: 10000 Cycles
Mechanical Endurance: 100000 Cycles
Temp.Rise: ≤55K When Ambient 40℃
