IM901 IEC62055-31 UC2 90A 250VAC Single Double Coil 12V Magnetic Latching Relay for Industrial Control

Share :
Product parameters

IVY Latching Relay

IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of latching relays spanning from 32A to 200A for single-phase Two-phase and three-phase switching purposes. our relays meet the industry's highest performance standards and offer the best value in the energy management market. In particular, we have developed an innovative relay switch-motor latching relay. IVY latching relays are highly customisable with many variants of terminal arrangements, which can be made to suit customer's needs. Shunts and current transformers can also be included to special order.

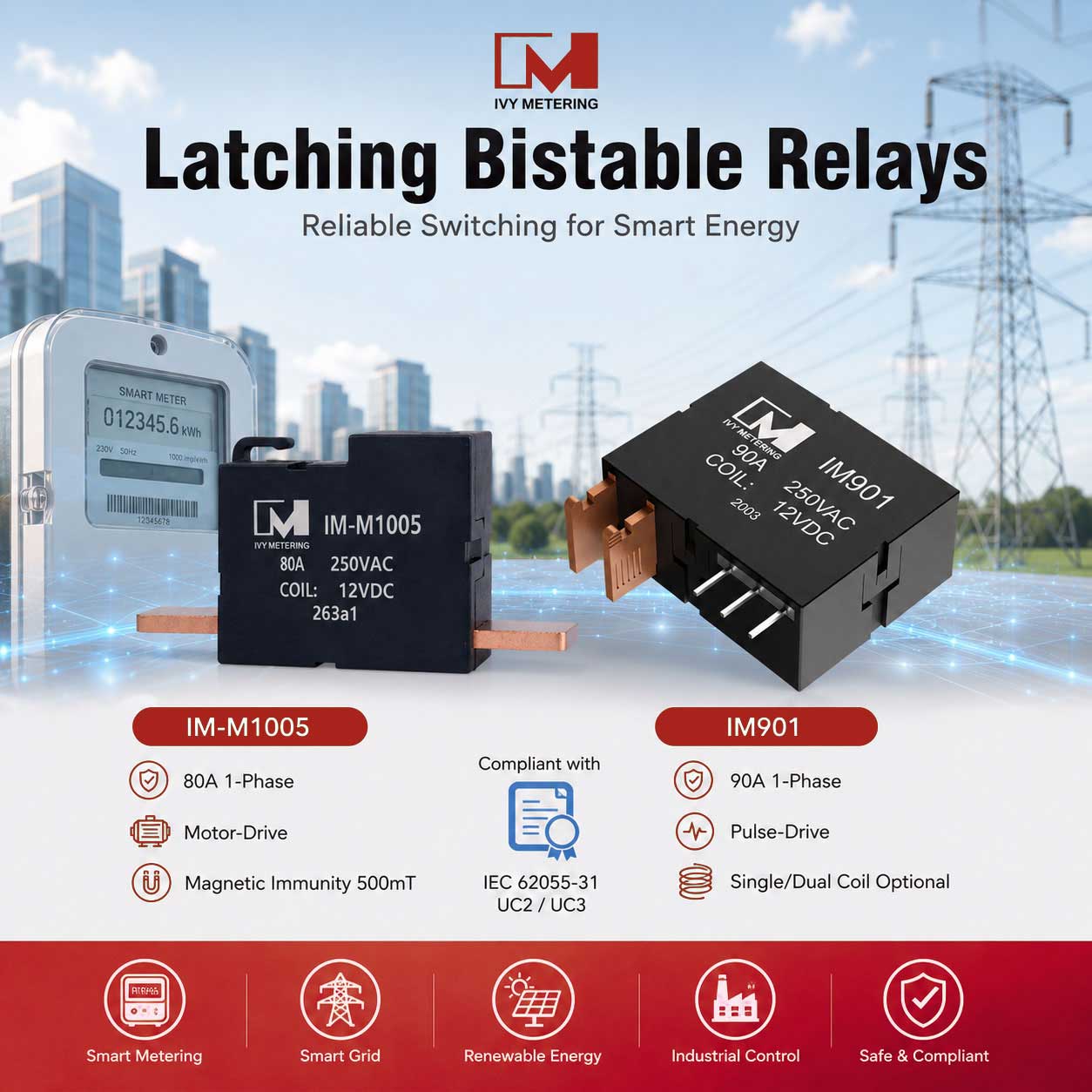

IM901 is a small industrial bistable latching power relay with continuous current up to 90A, and switching 90A 250VAC. Single and Double coil latching. Used in utility meters, AMR system Combination switch, reactive power compensation devices, automatic control and for solar, EV charger and energy conservation.IM901 High Performance 90A 250VAC Safety on off PCB Latching Relay for Automatic Control Device


IM901 90A Product Features

Switching Capacity:90A, 250VAC

Single/Dual Coil Optional

Dimension:38*30*16.5mm

4kV dielectric strength between coil and contacts

Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt

RoHS compliant materials and process

IEC62055-31 UC2/UC3 Certified


Product Parameters

Dimension(mm)

38×30×16.5

Weight ( g )

≈33g

Contact Arrangement

1A/1B

Contact Material

AgSnO2

Ambient Temperature

-40~+70℃

Ambient Humidity

45%~90%RH

Vibration

10~55Hz,1.5mm(DA)

Nominal Voltage

6~48VDC

Power Consumption

Single Coil:1.5W, Dual Coil:3W

Max. Switching Voltage

250VAC

Max. Switching Current

90A

Max. Switching Power

22500 VA

Contact Resistance

<2.0

Insulation Resistance

1000MΩ(DC 500V)

Dielectric Creepage

10mm

Dielectric Strength

Across Open Contact

>2000VAC   1min

Coil To Contact

>4000VAC   1min

Electrical Life

>10,000cycles

Mechanical Life

>100,000cycles

Picking-up & Release Time

≦20ms

Pulse Duration

≧100ms

Functional Shock Resistance

10G

Destructive Shock Resistance

100G


Application Scenarios

1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation control equipment, etc.

4) New Energy Field: EV charger, PV Inverter, Wind Energy
