EM613005 Low Voltage 8-48V Din Rail Solar Battery Monitor Smart Shunt Modbus DC Electricity Meter

Share :
Product parameters

Product Details

1.There are 5 models of DC meter: EM613005(8~48VDC),EM613001&EM613002(40~400VDC),EM619001&EM619002(5~1000VDC). It's worth to highlight that RS485 & NB-IOT communication are optional.

2.EM series DC energy meters are designed for measuring and monitoring in DC systems.

3.The din rail DC energy meters can measure of important DC parameters: Voltage, current, power and energy etc. It also support bi-directional measurement. All data in the meter are accessible via RS485 using Modbus RTU/DTL645.

4.The meter working with DC power supply. Input voltage range up to 1000VDC, and current inputs are flexible with DC shunt.

5.The multi-tariff version has a RTC equipped inside, it can provides multi-tariff information and monthly records.

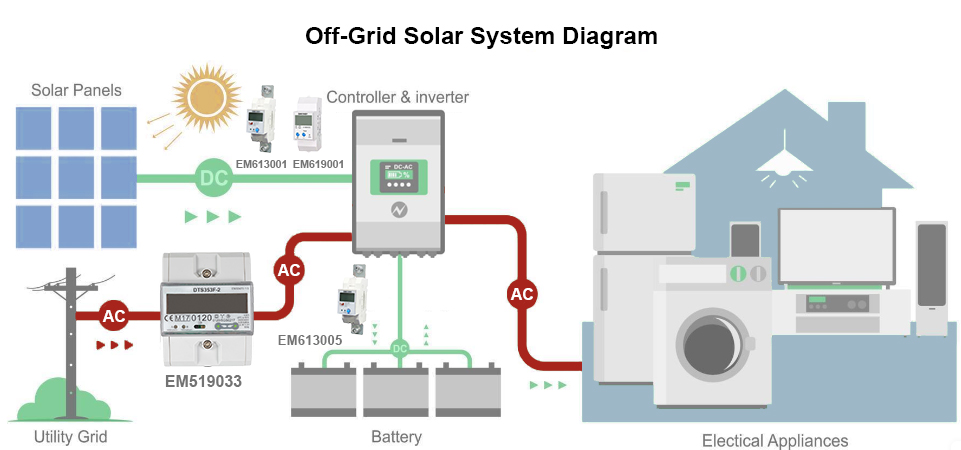

6.EM series dc meter is suitable for DC energy metering of EV charging piles, battery storage system, telecom tower, solar panels and other devices with DC signals. It is also suitable for DC power distribution electricity system of mining industry, civil buildings, building automation system base and so on.

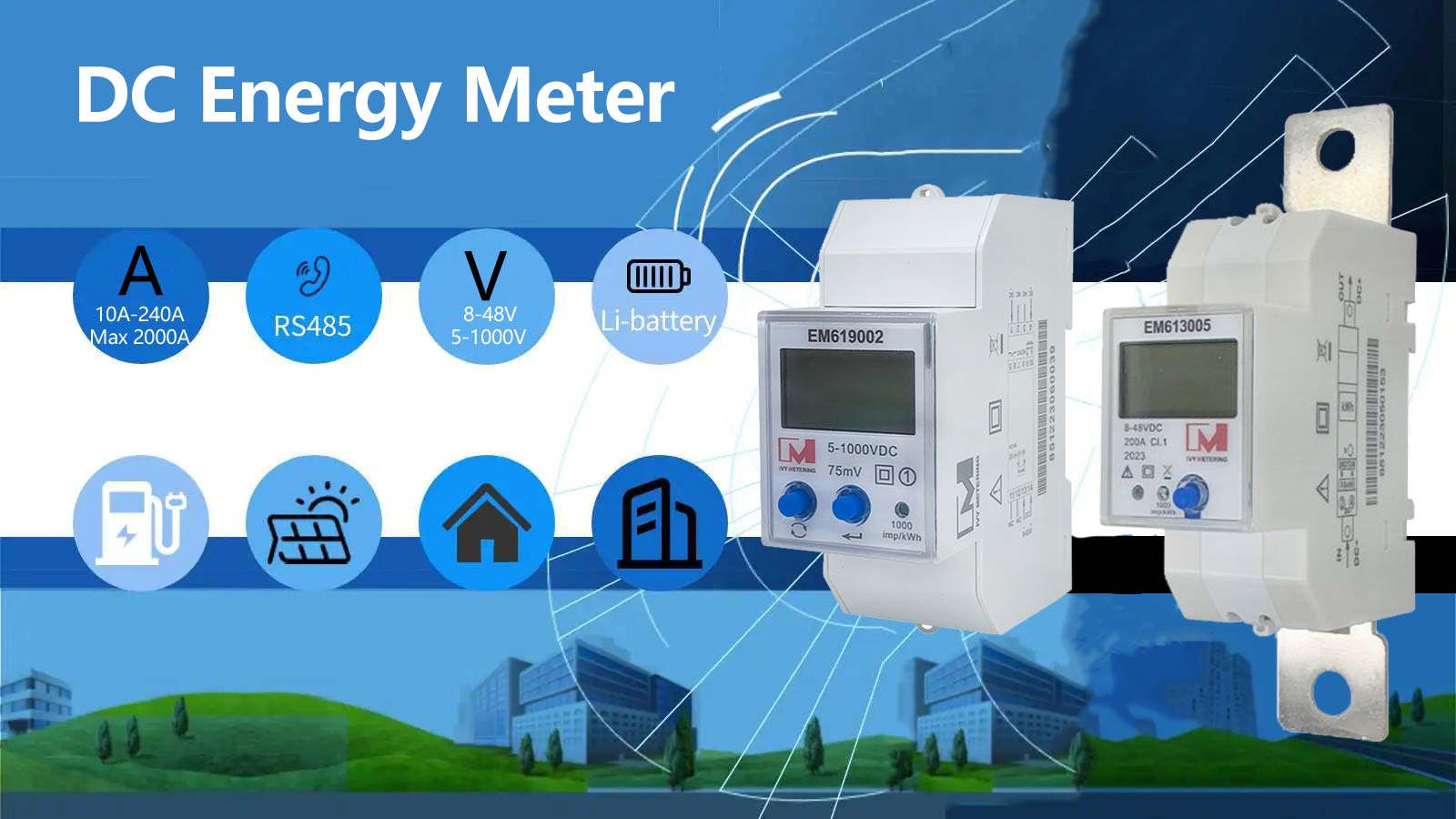

EM613005 Low Voltage 8-48V Din Type Solar Battery Monitor Smart Shunt Modbus DC Electricty Meter


EM613005 DC Meter Features

Din Rail Mount; Shunt Sampling; Class 1

Voltage Input DC8~48V; Current 10-240A

RS485 Communication with DLT645/Modbus Protocol

Over-current/Over-voltage/Over-load Alarm

Net metering for Renewable systems

LCD Backlight; Multi-tariffs(RTC), Monthly Records


EM613005 Low Voltage 8-48V Din Type Solar Battery Monitor Smart Shunt Modbus DC Electricty Meter


Features

  • Rate: Four Tariffs with 8 Time Slots

  • Alarm function: over-voltage, over-current alarm, threshold can be set.

  • Event record: The device itself stores the last 20 records when overvoltage, undervoltage, and overcurrent occur

  • Display: LCD displays DC power, current, voltage, tariff power, data wheel display (time interval 5S), you can also turn pages by pressing an external button.

  • Backlight: Press the page turning button to light up the backlight, which is convenient for viewing data when the light is insufficient

  • Communication: Supports RS485 communication with protocol DTL645, which allows parameters setting and read or write power data


Application

  • New Energy Field- PV, Solar Power/EV charger

  • Telecommunication Based Station

  • Energy Management /Battery Storage System

  • Power Generation System
