MD0630T01A EVSE GFCI Ground Fault Protection 30mA AC 6mA DC RCD Leakage Current Sensor with Uart

Share :
Product parameters

Product Overview

MD0630T01A is a high sensititivity AC DC leakage current sensor which has the characteristics of accurate measurement, small size and integration. The leakage sensor can be set separately for AC and DC leakage. An alarm signal is generated when the set current is reached. The leakage sensor has a digital output function, it can directly read the current value of DC and AC. Which can also be called residual current sensor, residual current monitor (RCM), residual current device (RCD), differential current sensor, earth leakage current detector and fault current sensor etc. “Residual current” refers to the leakage current from an electrical system to the ground, often as a result of a “ground fault”. Leakage currents can flow through a human body to ground resulting in a risk of electric shock, injury or burns, and can cause overheating and risk of fire. It is intended to provide protection against electric shock and leakage current detection for AC & DC Application.

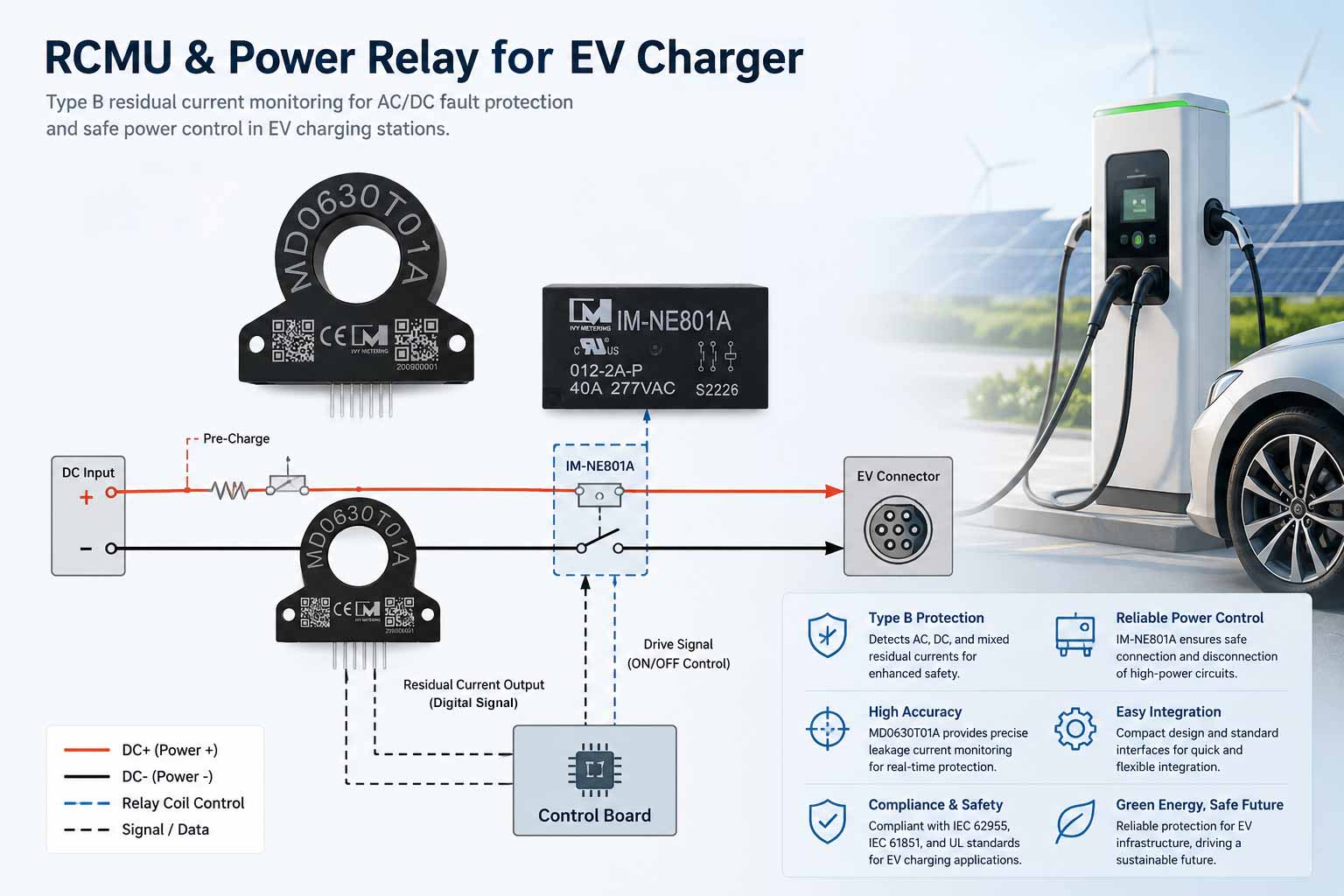

MD0630T01A is a small device installed inside the charging station equipment to detect whether there is a DC fault in the car battery. If a fault is detected, it outputs an alarm signal and the auxiliary contactor/relay cuts off the power. This protects your equipment from incoming DC surges.

In electric vehicle charging if the DC fault current is greater than 6mA, it could change the characteristics of a Type A RCD due to its core saturation, resulting in the type A failing to trip and a lack of detection of the DC fault. In this instance, the risk of electric shock is increased, and safety is compromised.

Use type B RCD, which is suitable for AC and DC fault protection.

Use type A RCD and a DC 6mA sensor to provide a means of disconnection of supply in case of DC fault.

IVY type B RCD(type A + 6mA dc) enables compliance with the updated BS7671:2018 and reduces the cost of developing electric vehicle charging solutions, which is more cost-effective than using a Type B RCCB.

MD0630T01A EVSE GFCI Ground Fault Protection 30mA AC 6mA DC RCD Leakage Current Sensor with Uart


Product Features

1. Complies with the DC and AC protection requirements of IEC62752 or IEC62955

2. Small Size, Integration Design, Vertical(Pin, Pin&Cable Type)/Horizontal(Cable Type) Mounting Optional

3. AC DC Leakage Alarm Value Setting; High and Low Level Digital Signal(Push-pull Output)

4. With UART Comm&Modbus Protocol; Standard: EN 61000-6-3:2007+A1, EN IEC 61000-6-1:2019

5. Professional Certification: TUV(IEC62955/IEC62752/IEC61851-1); UL 2231-1/UL 2231-2; IS17017; CE-EMC

6. Type B RCD Protection; Electrical Safety at Low Cost (Compared to Type B RCCB)

7. Robust Mechanical and Electrical Design for Harsh Environmental Conditions


MD0630T01A Type B RCD 6mA DC 30mA AC Zero Phase EV Current Sensor for E-mobility ProjectResidual Current Sensor


Product Parameters

Wide voltage input: 12V±20%

Measuring current range: DC current 2-15mA; AC current 3-100mA (default threshold: DC 6mA, AC 30mA)

Accuracy : at 25℃, DC±0,2mA, AC±0.3mA

Can read current value and set alarm current value

Three outputs: DC alarm, AC alarm, AC/DC alarm

Working environment temperature: -25℃~+80℃

Plastic case, small SIP package


Product Application

Comprehension of the coexistence of AC and DC

In addition to the use of charging piles, Also suitable for electro-medical instruments, ventilation systems, inverters, UPS, escalators, welding equipment, smart home, industrial machines, elevators, IOT, photovoltaic systems etc.          There is a DC component leakage scenario. Provide more reliable protection.
