MD0630T01A-Z EV Charger 6mA DC 30mA AC Residual Current Protection Type B RCD Leakage Current Detector

Share :
Product parameters

Product Introduction

Any electrical leak can be dangerous for your staff and production site. By using IVY Residual Current Detection (RCD) you can protect both staff and equipment. Thanks to its zero-flux technology expertise, IVY developed a range of highly flexible Residual Current Monitor of Type B/B+ for measuring DC and AC residual currents up to 100kHz, with digital signal output.

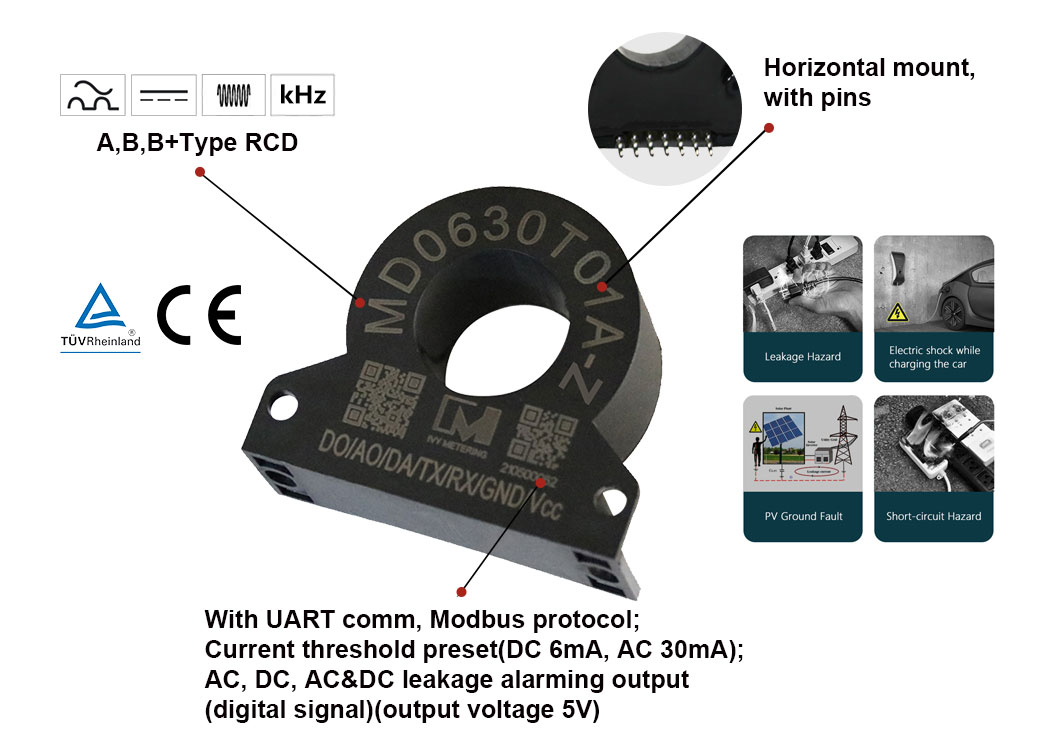

MD0630T01A-Z sensor is a new, compact, horizontal type rcd current sensor with pins designed for use in e-mobility infrastructure and AC charging station designs to monitor leakage currents in mode two/three/four electric vehicle charging. The RCD sensor is connected in series with the AC supply to an EV and will provide a signal output if a DC current ≥ 6mA DC flows in the circuit.

MD0630T01A-Z Type A, B and B+ RCD, dedicated to detect to DC, AC and DC+AC leakage current measurement. The sensor can issues an alarm signal when the DC component of the residual current reaches a preset value.

MD0630T01A-Z is an automotive grade leakage current sensor also called residual current monitoring (RCM), residual current detection (RCD), differential current sensor, leakage current detector and fault current sensor. It has the characteristics of accurate measurement, small size and integration. The RCD sensor can be set separately for AC and DC leakage and has a digital output function. It can detect sinusoidal AC, pulsating DC, composite of multi-frequency as well as smooth DC residual currents. Widely used for electro-medical instruments, ventilation systems, inverters, UPS, Electric vehicle charging stations, lifts, escalators, welding equipment, smart home, industrial machines, elevators, IOT, photovoltaic systems. In addition, our delivery time is also guaranteed.

MD0630T01A-Z EV Parts UART Modbus Digital Signal Output 6mA DC Fault Detection RCD Sensor with Pins

Product Features

1. Small Size; Compact/Integration Design; Horizontal Type, with Pins.

2. Integrated self-monitoring and test functions; 3000A surge withstand capability

3. AC DC Leakage Data Readable; Alarm Value Programmable; 3 Way Alarm Outputs; Digital Output

4. URAT Comm, with Modbus Protocol; Standard: EN 61000-6-3:2007+A1, EN IEC 61000-6-1:2019

5. Certification: TUV(IEC62955/IEC62752/IEC61851-1/IEC62196); UL2231-1/UL2231-2; IS17017; CE-EMC

6. Type B RCD/RCM for EV Charger Protection; Electrical Safety at Low Cost (Compared to Type B RCCB)

7. Robust Mechanical and Electrical Design for Harsh Environmental Conditions

Product Parameters

  • Wide voltage input: 12V±20%

  • Measuring current range: DC current 2-15mA; AC current 3-100mA (default threshold: DC 6mA, AC 30mA)

  • Accuracy : at 25℃, DC±0,2mA, AC±0.3mA

  • Can read current value and set alarm current value

  • Three outputs: DC alarm, AC alarm, AC/DC alarm

  • Working environment temperature: -25℃~+80℃

  • Plastic case, small SIP package

MD0630T01A-Z 6mA 30mA RCM AC DC Leakage Detection RCD Residual Current Sensor

1.Being able to detect smooth DC residual currents which can occur in EV charger stations and photovoltaic systems, IVY RCD guarantees the safety of the people and of the installation

2.can guarantee dependable protection for field technicians and installed machinery by detecting high frequency residual current and protecting against smooth DC residual currents in the event of a fault.

3.can prevent damage to installed equipment and avoid operational impacts in situations where service interruption and out of order can cause discomfort.

4.In installation where we cannot necessarily withstand any sort of interruption, IVY RCD can minimize outages, equipment damage, failures and interruption of any critical operation
