AEC-21Y-G1 Introduction
IVY Metering has launched a new AC charging station that comes with more functions to enhance user experience. The new EV Charger combines all of the control and monitoring functions essential for the charging process in one compact housing.

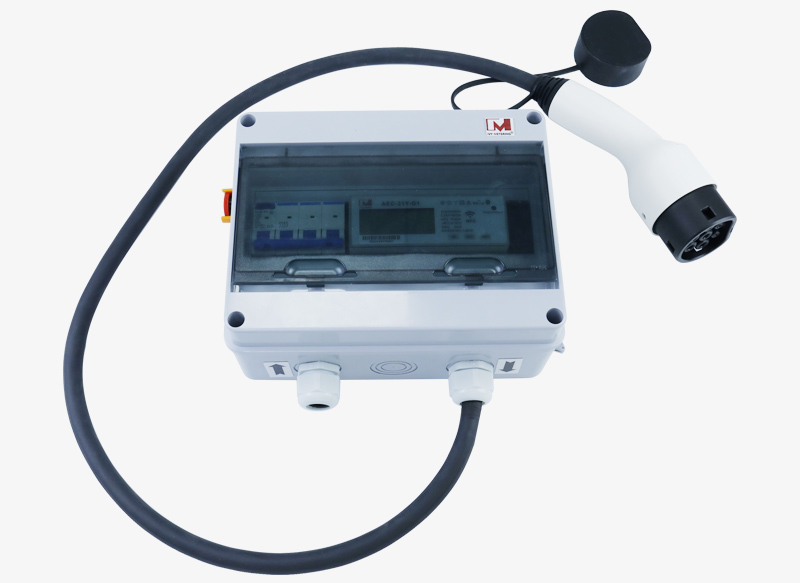

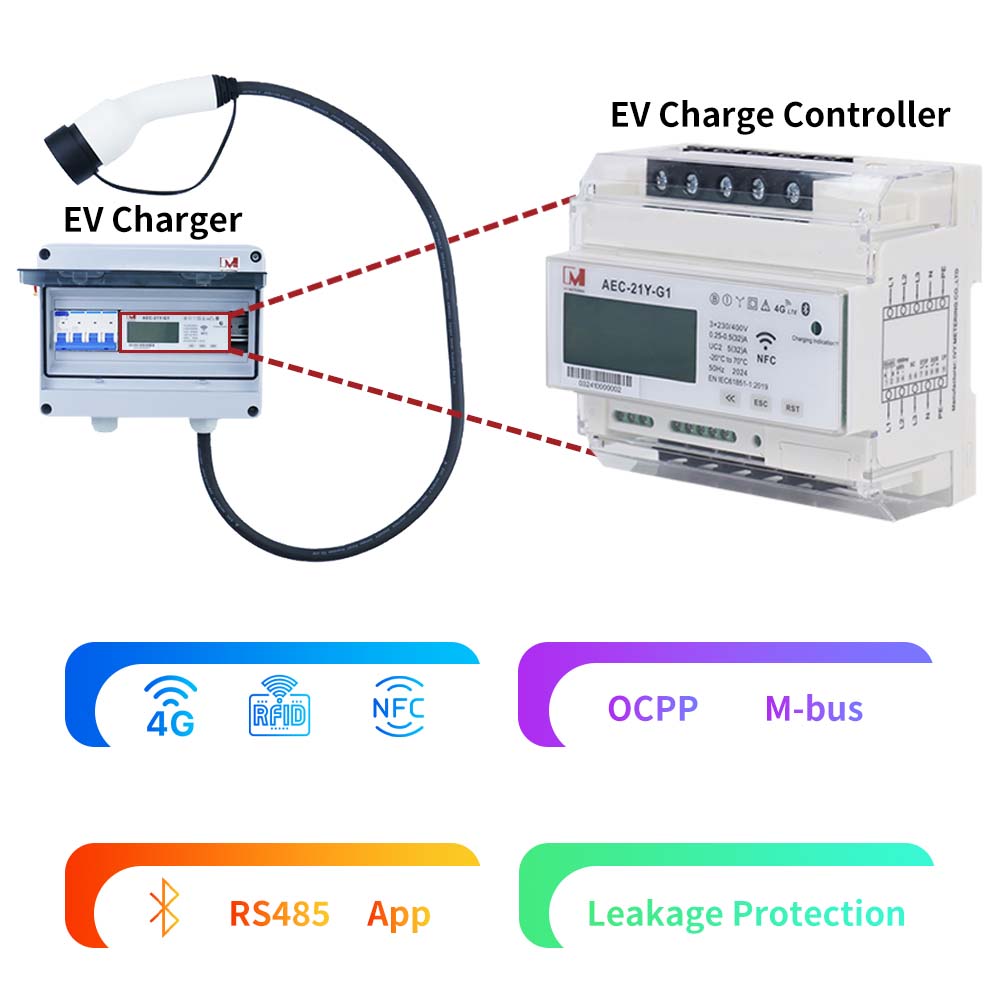

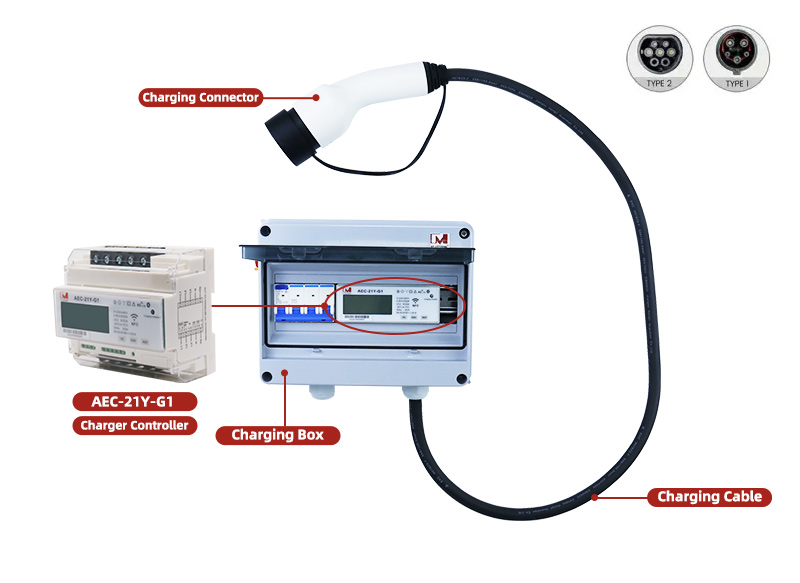

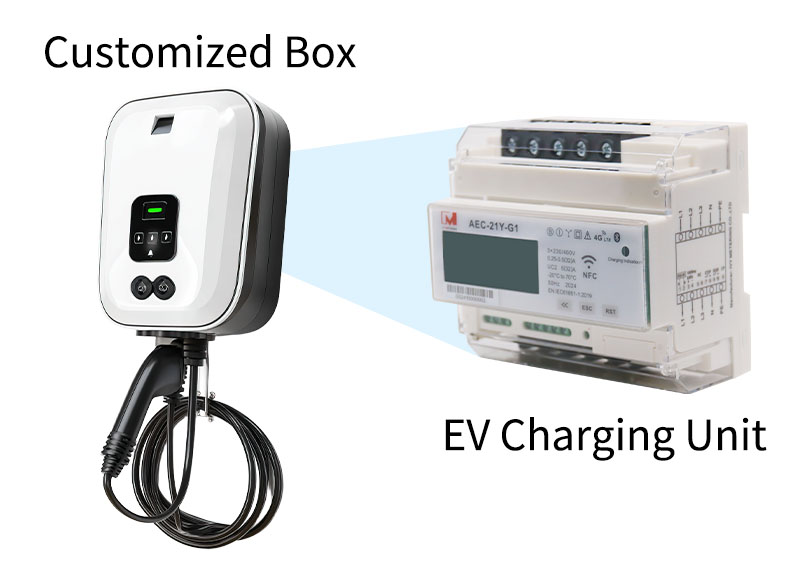

IVY EV Charger Controller (AEC-21Y-G1) is designed to provide all of the required control functions for EV charging. The AEC-21Y-G1 can be integrated into an Electric Vehicle Charging Station for Mode 3 Level 2 chargers, e.g. Charging Stations or charging units. The AEC-21Y-G1 controller with 4G/Wireless/RS485/Bluetooth communication and M-BUS OCPP(pending) protocol. Integrated charging, metering, and 14 types safety protection functions, so simple too easy to install.

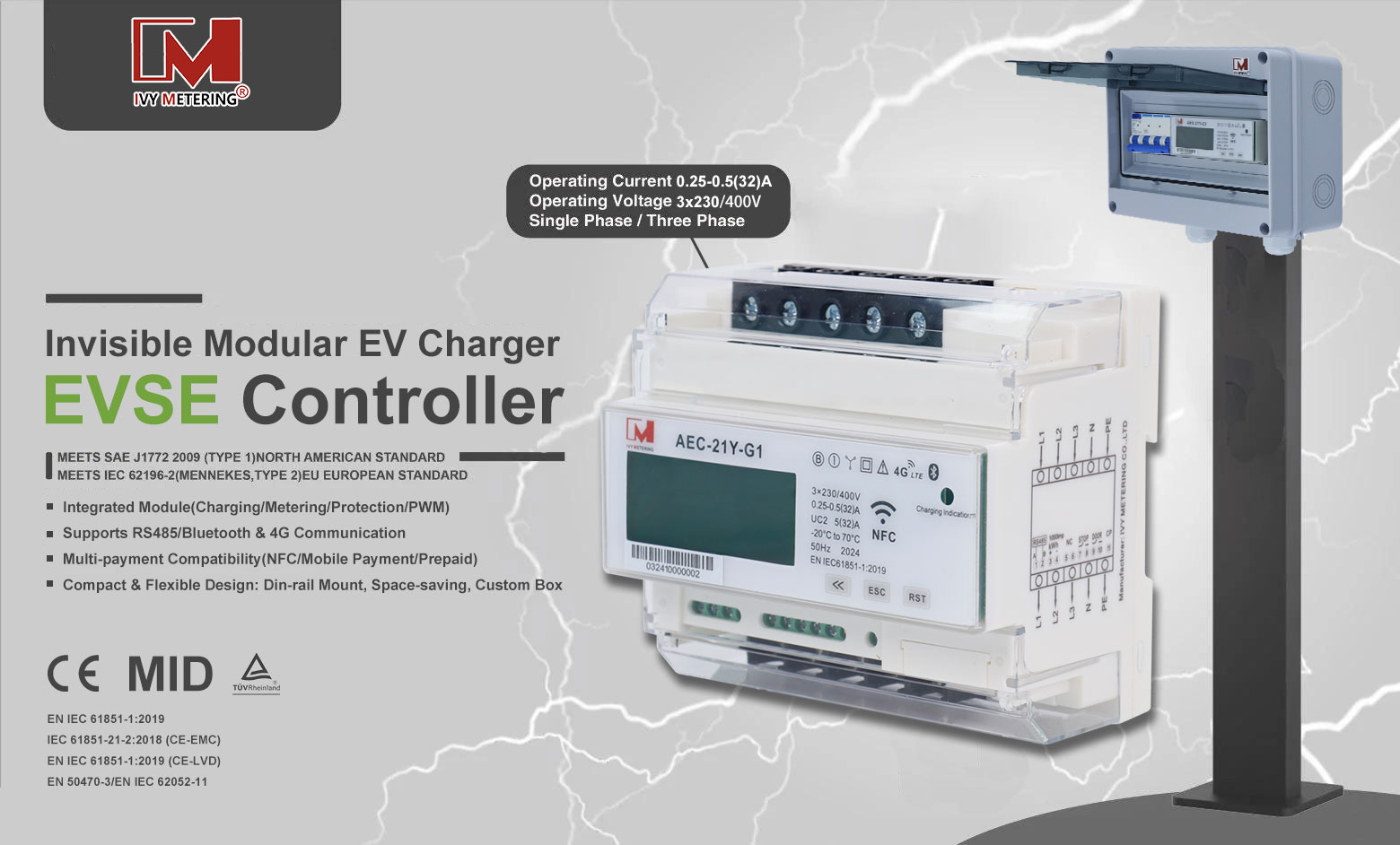

Product Features
• Complies with standard IEC61851-1 (mode 3 charging)
• Metering funtion
• Supports M-bus protocol, 4G, RS485 communication, OCPP-J-1.6/Wi-Fi/Ethernet pending

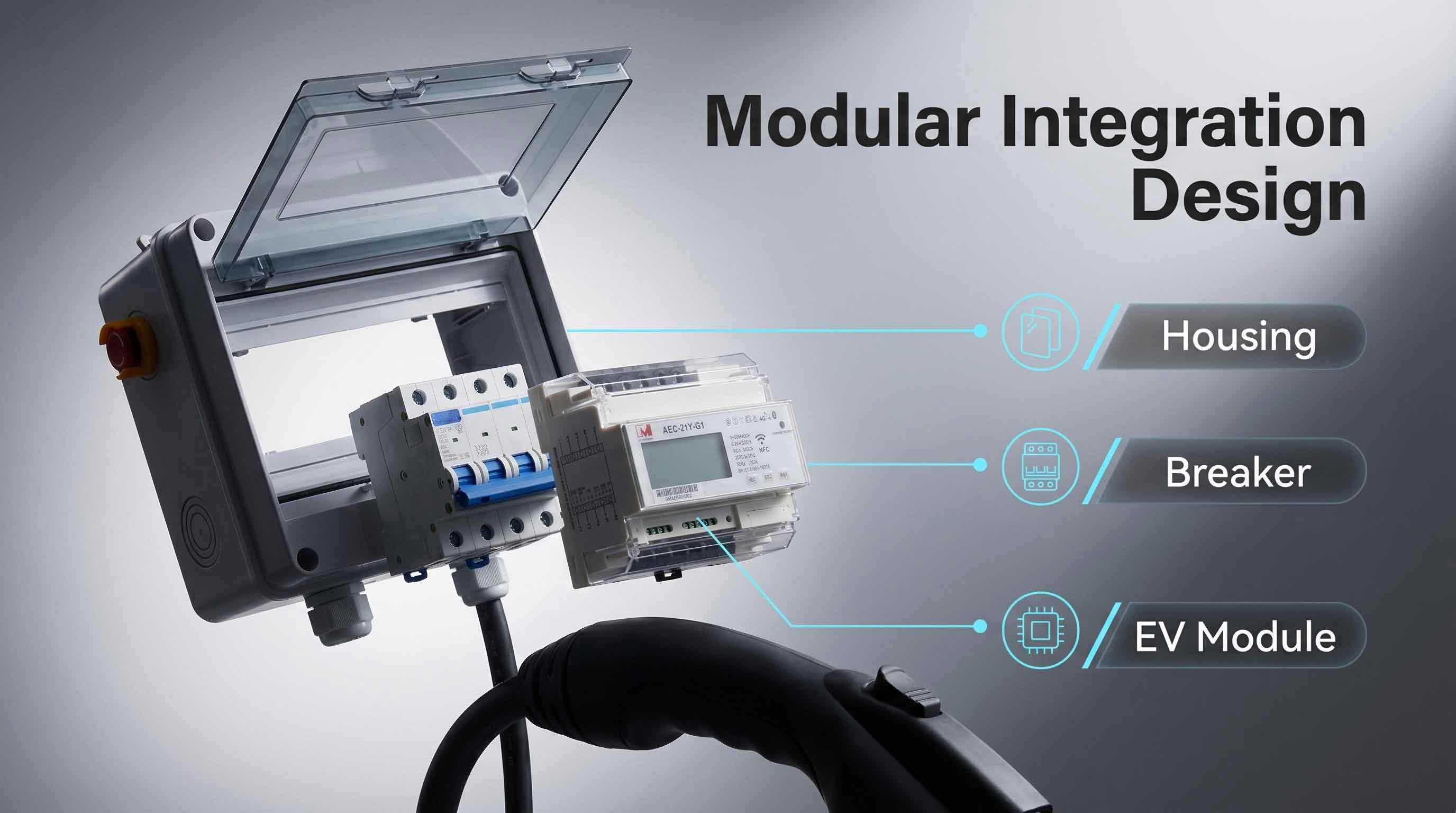

• Modular design, rail installation
• Adjustable charging current (maximum 32A)
• Status LED and LCD display
• RCMU detects 6mA or greater DC leakage current detection
• 14 Type safety protectoion, inclduing PEN fault protection, etc
Product Function
【Fast Charging】32A electric vehicle charging station can achieve high-speed charging, significantly shortening the charging time of electric vehicles equipped with Type 1 & Type 2 (IEC 62196-2 & SAE J1772 standard) sockets.
【Multiple Protection】Our electric vehicle charger has better quality and higher durability. Safety protection measures such as overcurrent protection, overvoltage protection, under-voltage protection, leakage protection, overheating protection, IP66 waterproof level, etc. They can ensure the safety of your car charging.
【4G Communication】Remote communication functions: with 4G remote communication, can achieve control, authorization, payment, setting, and other functions
Product Parameters
Charging & Metering Parameters | Charging Type | AC charging (three-phase & single-phase) |
Charging Mode | Mode3 | |
Charging Voltage | 3*230/400V±15%（three phase）； 230V±10%（single phase）； | |
Charging Current | Maximum 32A | |
Charging Power | Maximum 21KW | |
Pulse Constant | 1000imp/kWh | |
Frequency | 50/60Hz | |
Accuracy | Class 1.0 | |
Leakage Protection Parameters | AC leakage current threshold | 30mA |
DC leakage current threshold | 6mA | |
Communication Parameters | Communication | 4G |
Bluetooth4.0-5.0（2.4 GHz） | ||
NFC（For charging by swiping card） | ||
RS485（For parameter configuration, etc.） | ||
Communication Protocol | IVY-BUSprotocol（IVY Own agreement） | |
Other Parameters | Dimensions | 123.5*110*75mm |
Weight | 0.6kg | |
Operating Temperature | -25～70℃ | |
Storage Temperature | -40～80℃ | |
Humidity | average≤75%，maximum≤95% | |
Protection Level | Determined by the charging pile shell, the module itself IP30 | |
Applicable Charging Gun Type | Type 1 (SAE J1772)；Type 2 (IEC 62196-2) |
