MD0630T01A PCB Mount RCD Module 6mA DC Fault Current Detection Leakage Sensor for EV AC Charger

Share :
Product parameters

Product Introduction

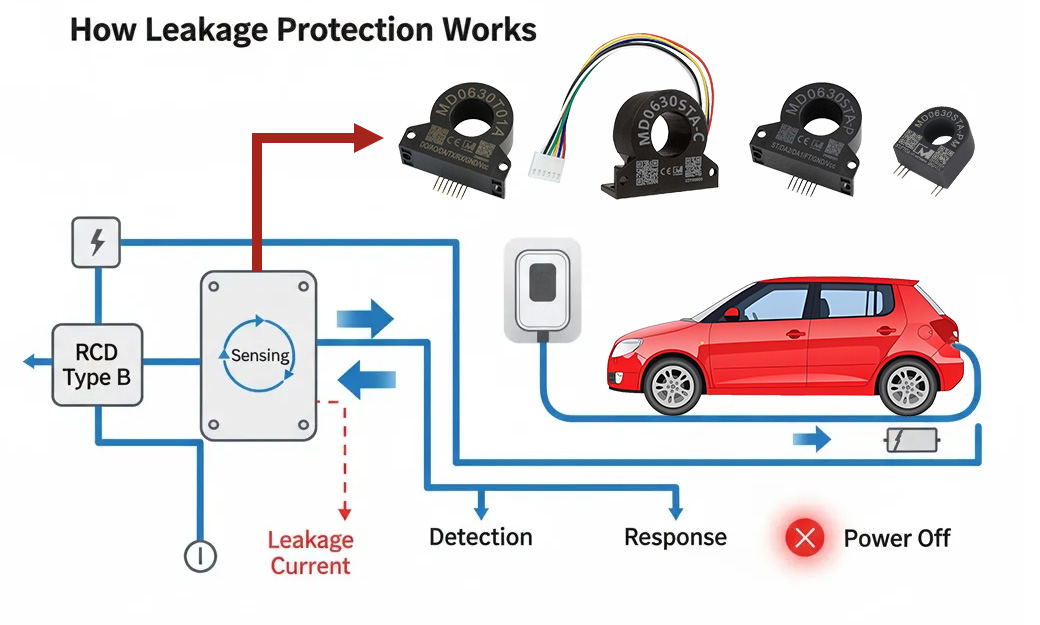

IVY offers MD0630T01A for monitoring and/or providing shock protection and fault protection on AC and DC installations and for EV charging applications. MD0630T01A is a RCD sensor specifically developed for EV-charging providing all-current sensitivity. The sensor can issues an alarm signal in case of hazardous electrical faults (DC and AC). It has the characteristics of accurate measurement, small size and integration. The RCD sensor can be set separately for AC and DC leakage and has a digital output function. MD0630T01A is an automotive grade leakage current sensor from IVY also called residual current monitoring (RCM), residual current detection (RCD), differential current sensor, leakage current detector and fault current sensor. Type A, B and B+, dedicated to detect to DC, AC and DC+AC leakage current measurement. The MD0630T01A can monitor DC (6mA) and AC (30mA) residual currents, it is connected in series with the AC supply to an EV and will provide a signal output if a DC current ≥ 6mA DC flows in the circuit.


Product Description

This product is fully compliant with TUV/CE-EMC
The MD0630T01A is a residual current monitor intended for the detection of DC and AC residual currents in 50Hz/60Hz AC installations.
The MD0630T01A is primarily intended for use in Mode 2 Electric Vehicle In-Cable Control and Protection Devices (IC-CPDs) and Mode 3 Wallbox Charger, to disconnect the supply to the Electric Vehicle under an AC or DC residual current fault condition.
The MD0630T01A may also be used to detect DC or AC residual currents in DC, single phase or multiphase installations.
The MD0630T01A is a compact solution designed to be mounted directly onto a PCB.


MD0630T01A PCB Mount RCD Module 6mA DC Fault Current Detection Leakage Sensor for EV AC Charger


Product Features

1. Complies with the DC and AC protection requirements of IEC62752 or IEC62955

2. Small Size; Integration Design; Vertical(Pin, Pin&Cable Type)/Horizontal(Cable Type) Mounting Optional

3. AC DC Leakage Data Readable; Alarm Value Programmable; 3 Way Alarm Outputs; Digital Output

4. UART Comm, with Modbus Protocol; Standard: EN 61000-6-3:2007+A1, EN IEC 61000-6-1:2019

5. Certification: TUV(IEC62955/IEC62752/IEC61851-1/IEC62196); UL2231-1/UL2231-2; IS17017; CE-EMC

6. Type B RCD/RCM for EV Charger Protection; Electrical Safety at Low Cost (Compared to Type B RCCB)

7. Robust Mechanical and Electrical Design for Harsh Environmental Conditions


Pin Definition


Pin

Definition

Description

1

Vcc

12V±20% input voltage

2

GND

Input terminal grounded

3

RX

UART receive(UART output voltage 5V)(Modbus Protocol)

4

TX

UART transmit(UART output voltage 5V)(Modbus Protocol)

5

AD

AC、DC leakage alarming output( output voltage 5V)(Digital Signal)

6

AO

AC leakage alarming output( output voltage 5V)(Digital Signal)

7

DO

DC leakage alarming output(output voltage 5V)(Digital Signal)


Product Parameters

  • Wide voltage input: 12V±20%

  • Measuring current range: DC current 2-15mA; AC current 3-100mA (default threshold: DC 6mA, AC 30mA)

  • Accuracy : at 25℃, DC±0,2mA, AC±0.3mA

  • Can read current value and set alarm current value

  • Three outputs: DC alarm, AC alarm, AC/DC alarm

  • Working environment temperature: -25℃~+80℃

  • Plastic case, small SIP package


EV Charger Application

  • Leakage current measurement for OBC in-cable (mode 2) and for wall boxes (mode 3) contact and protection device

  • Automotive On Board Chargers (OBC) 1-3 phases 3.3 kW to 22 kW

  • V2X Vehicle to Everything (V2G Vehicle to Grid,V2L Vehicle to Load)

  • Insulated or None insulated On Board Charger

  • Wall box charger

MD0630T01A Small Size Residual Current Detection AC DC Leakage Current Sensor for on-board Charger








Appliance ground fault detection
Solar inverter residual current
Converter leakage current detection
UPS and other power ground fault detection
Electric vehicle charge station
Single or 3 Phases differential current detection
