Product parameters

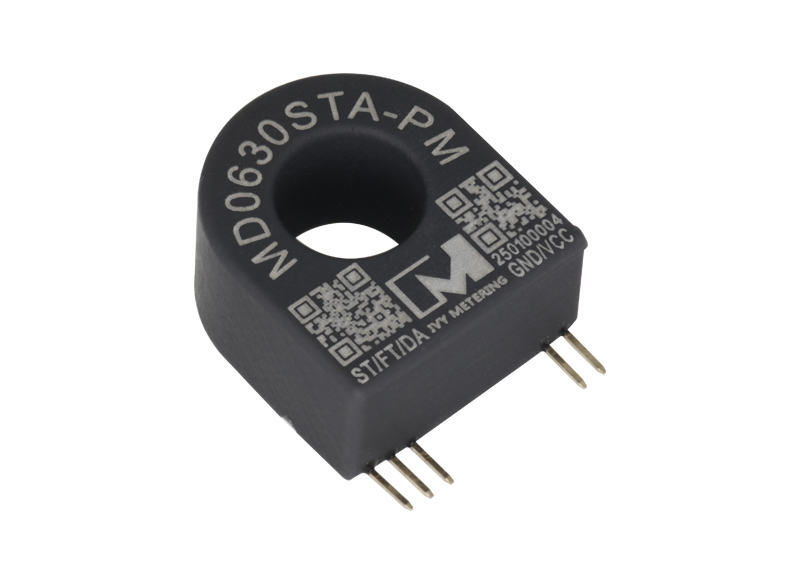

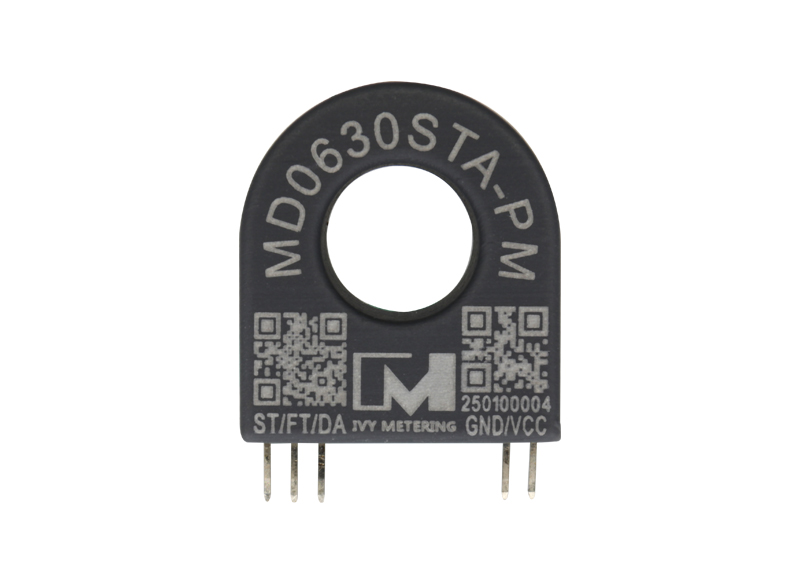

MD0630STA-PM Introduction
The MD0630STA-PM AC DC leakage current sensor(compatible with Type A and Type B) features high sensitivity, accurate measurement, and a compact & integrated design. It outputs an alarm signal when it detects a DC leakage current of 3-6mA or an AC leakage current of 15-30mA. It also has a self-test function. Its outstanding features are its ultra-small size and ultra-low price(Type B Quality, Type A Price).
This series of products has important applications in various fields, including industrial equipment, medical instruments, new energy, and smart cities. It is particularly suitable for charging electric vehicles, electric motorcycles, and electric bicycles in various public places. It is simple to use and install.
Product Feature
Wide voltage input: DC 4.85-5.5V
Measurement current range: DC 2-15mA, AC 3-100mA
Alarm current range: DC 3-6mA, AC 15-30mA
Alarm output: Open collector output
Self-test function: Use the test pin to determine whether the sensor is functioning properly
Operating temperature: -25°C to +80°C

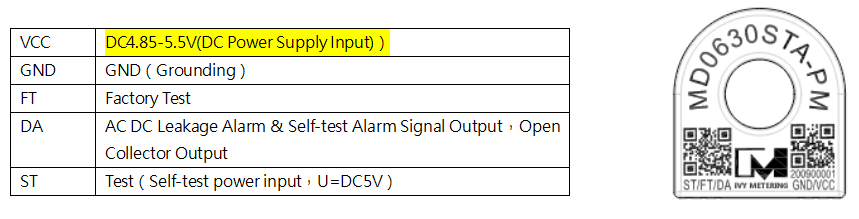

Pins Definition
1. Being able to detect smooth DC residual currents which can occur in EV charger stations and photovoltaic systems, IVY RCD guarantees the safety of the people and of the installation
2. Can guarantee dependable protection for field technicians and installed machinery by detecting high frequency residual current and protecting against smooth DC residual currents in the event of a fault.
3. Can prevent damage to installed equipment and avoid operational impacts in situations where service interruption and out of order can cause discomfort.
4. In installation where we cannot necessarily withstand any sort of interruption, IVY RCD can minimize outages, equipment damage, failures and interruption of any critical operation
