Product parameters
Product Introduction
100A DC immune current transformer resistant to external magnetic field
CT SPEC: 5(100)A/2mA, 2500:1, class 0.1, 10Ω; with DC Immunity & 500mT Magnetic immunity; Shell thickness 1.5mm.

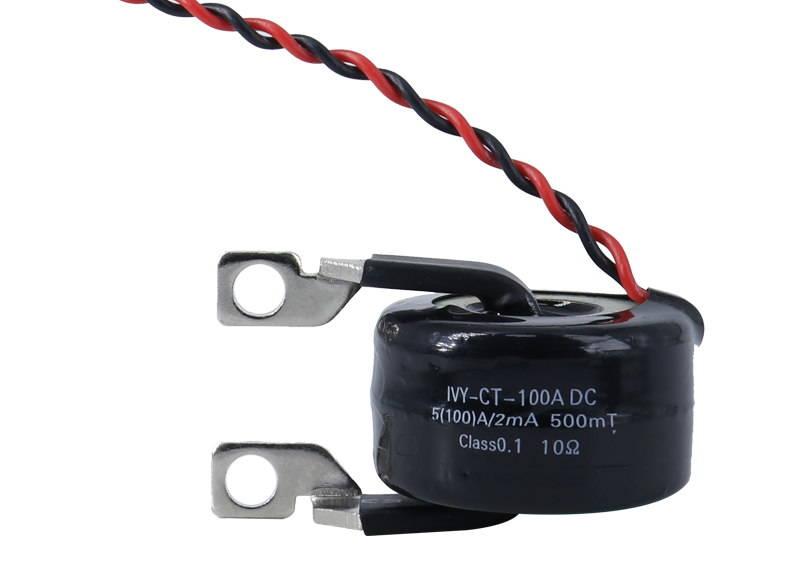

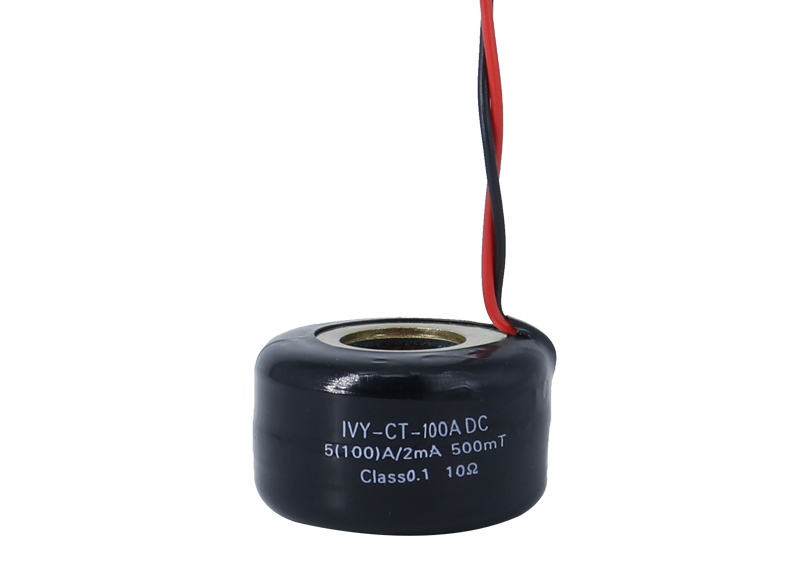

Type: Finished CT(U-shaped copper) and semi-finished CT(support customized)
According to IEC62053-21, The energy meter shall be protected against external magnetic field, to face the potential tampering situation. IVY Metering shielded Current transformer IVY-CT-05-100ADC-500mT adopted customized shield for protect against external magnetic field.
Product Characteristics
1. It applied for electronic electricity meters, single phase energy meter, and three phase energy meters.
2. Adopted high quality amorphous alloy and nanocrystalline core, good linearity, and high precision.
3. The CT case adopted flame-retardant PBT materials, with good mechanical and electrical strength.
4. Encapsulated with epoxy resin with strong insulation ability.
5. DC immune current transformers (DCT) can be used in electricity meters, conform to IEC62053-21.
6. Metal shield adopted to protect the CT against external magnetic field 500mT.

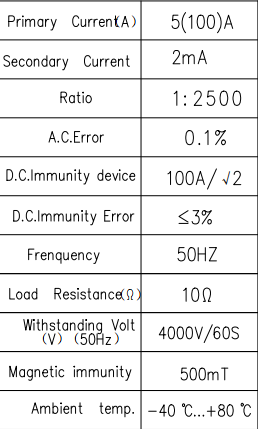

Electrical Specification
