Product parameters
1. Product Introduction

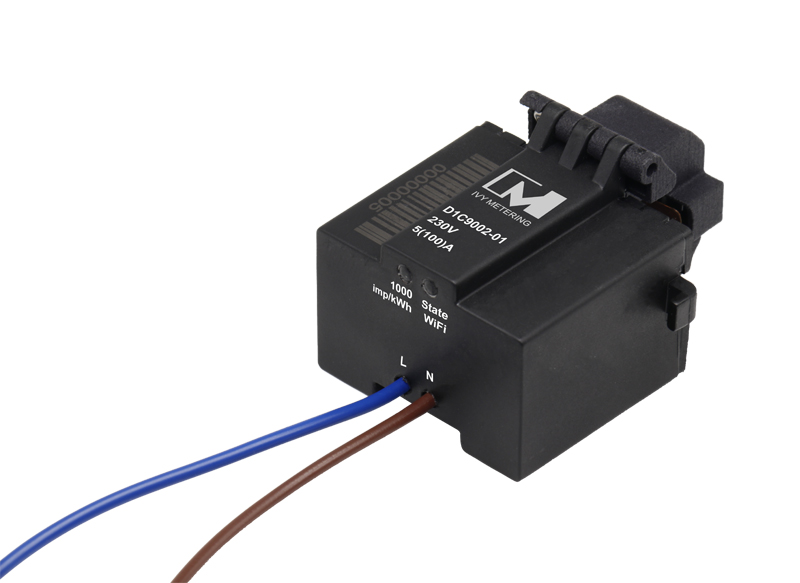

The D1C9002-01 all-in-one device offers real-time monitoring with dual WiFi and Bluetooth communication, measures up to 100A, supports multiple parameters, real-time monitoring, and provides instant data reporting.
The D1C9002-01 is a wireless solution for energy usage monitoring and management. D1C9002-01 Wi-Fi sensor can measure multiple parameters like voltage, current, power, power factor, frequency, active energy, etc. It can be used for energy monitoring of various applications, such as solar PV systems, EV chargers, smart buildings, residential, industrial equipment, etc.
2. Main features
Wireless transmission: Supports WiFi/Bluetooth communication, convenient data transmission, and no wiring required.

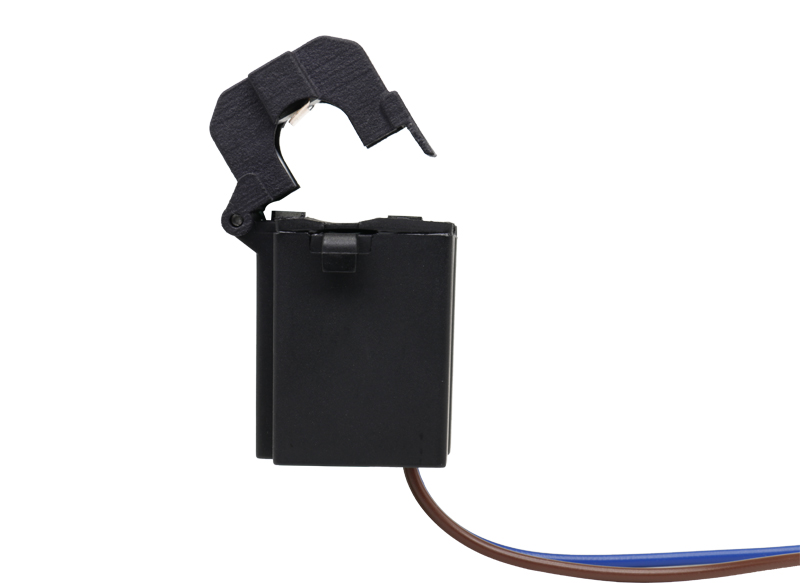

Easy installation: The split-core structure, easy to disassemble, but need to turn off the power.
Real-time Monitoring: Current/voltage/power/frequency data can be viewed anytime, anywhere via the network.
Data Reporting: Data can be reported to the cloud platform via Modbus and other protocols
Bidirectional Measurement: Measures forward and reverse current and power.
3. Technical parameters
Voltage input: 230V (±20%)
Current: 5(100)A
Starting current: 0.04%Ib(4mA)
Minimum current: 5%Ib(250mA)
Pulse constant: 1000imp/kwh
Measurement accuracy: 2%
Rated frequency: 50~60Hz
Threading hole diameter: ≤φ12mm
Temperature range: -20 ~ +60℃

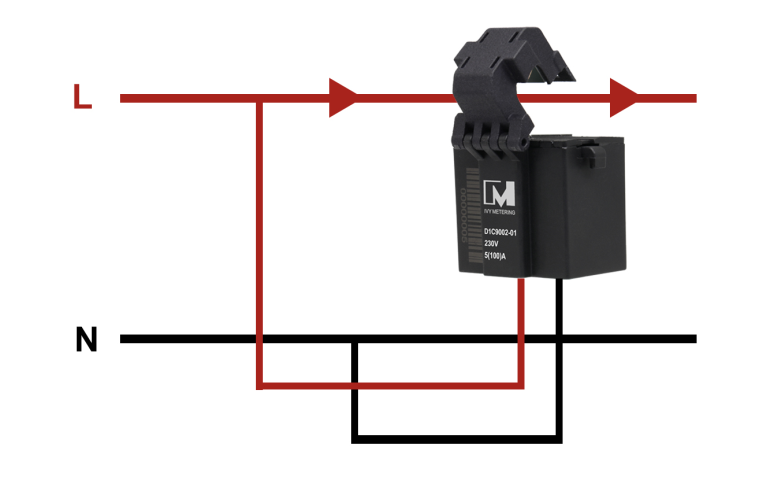

4. Product Wiring
5. Product Application
Smart home: monitor the power consumption of home appliances and realize intelligent power management.
Industrial automation: used for current monitoring of AC motors, lighting equipment, air compressors, and other equipment to achieve predictive maintenance
Energy management: monitor power consumption and optimize energy use in smart grids and building automation systems
EV Charger: measure the current output by the charging pile in real time and accurately, providing accurate data for billing and electricity management.
