IVY is specialized in the research, development, and manufacturing of high powered, high quality, highly reliable latching relays. We offer latching relays from 32A to 200A for both single, dual and three phase switching purposes. Our relays are designed to meet the industry's highest performance standard and it offers the best value in the Metering Market. We develop the product using innovative ways to save money and power for both consumers and producers of electricity. We are adhered to provide the best product with the lowest failure rate in the industry.
IVY Metering motor latching relay IM-M series is newly launched! Compared with magnetic latching relays, it is smaller in size, has lower contact resistance, and permanent magentic immune up to 500mT. Comply with the new standard of IEC62052-11:2020.

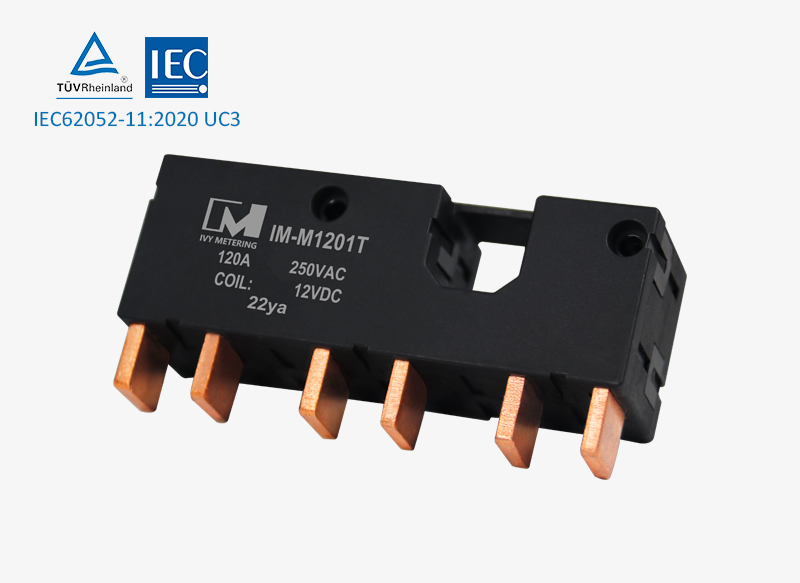

IM-M1201T 3 phase motor latching relay has the following characteristics:
Driven by internal small motor instead of coil drive, saving power and stable performance.
Small size, light weight, compact structure, built-in 500mT anti-constant magnetic field.
IEC62052-11 UC3 Certified, in accordance with IEC 60404-8-1:2015,IEC 60404-5:2015,IEC 60404-8-4:2013
Product Parameters
Basic parameters | Dimension（mm） | 79*28*25.5mm | ||
Weight | ≈103g | |||
Ambient | -45~+85℃ | |||
Contact parameters | Contact Material | AgSnO2 | ||
Contact Arrangement | 3A/3B | |||
Contact Resistance | ≤1.0mΩ | |||
Contact Load | 250VAC,120A | |||
Electrical Life | 32ΩMotor（Control voltage DC12~15V, rated resistive load） | ≧5000 cycles | ||
12ΩMotor（Control voltage DC12V, rated resistive load） | 10000 cycles | |||
Mechanical Life | Control Voltage（DC12V Contact no load or micro current load） | ≧50000 cycles | ||
Performance parameters | Rated Driving Voltage | 32ΩMotor | 12V（Advise pulse width 130-150ms） | |
32ΩMotor | 15V（Advise pulse width 90-110ms） | |||
12ΩMotor | 10V（Advise pulse width 80-100ms） | |||
12ΩMotor | 12V（Advise pulse width 70-80ms） | |||
Motor Resistance（two styles optional） | 32（1±15%）Ω | |||
12（1±15%）Ω | ||||
Vibration | 1.5mm(double amplitude),10~ 50Hz | |||
Shock | 1000m/s²,(100G) | |||
Surge Current | 6000A/10ms | |||
Insulation Resistance | ＞1000MΩ（500VDC） | |||
Dielectric Strength | Motor to Contact | ＞4000VAC,1 min | ||
Across Open Contact | ＞2000VAC,1 min | |||
Pole to Pole Contact | ＞4000VAC, 1min | |||
Closing time at rated drive voltage | 32ΩMotor（12V） | ≤110ms | ||
32ΩMotor（15V） | ≤80ms | |||
12ΩMotor（10V） | ≤70ms | |||
12ΩMotor（12V） | ≤60ms | |||
Breaking time at rated driving voltage | 32ΩMotor（12V） | ≤80ms | ||
32ΩMotor（15V） | ≤50ms | |||
12ΩMotor（10V） | ≤50ms | |||
12ΩMotor（12V） | ≤40ms | |||
TYPICAL APPLICATION：
Mainly used for prepayment electric energy meters, RS485 meters with the break & make function used in centralized meter reading system;
It might also be used for combination switches of electiric power factor compensation switch-capacitor, home appliances and automatic control devices.
