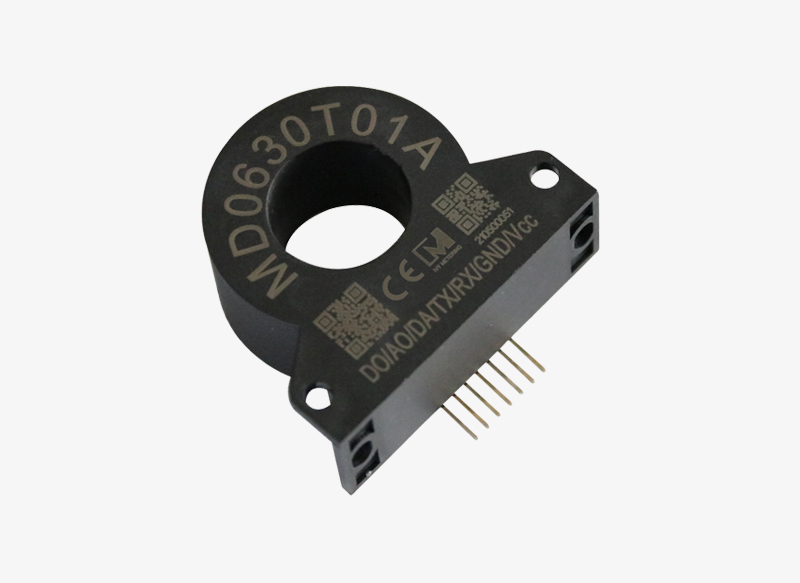

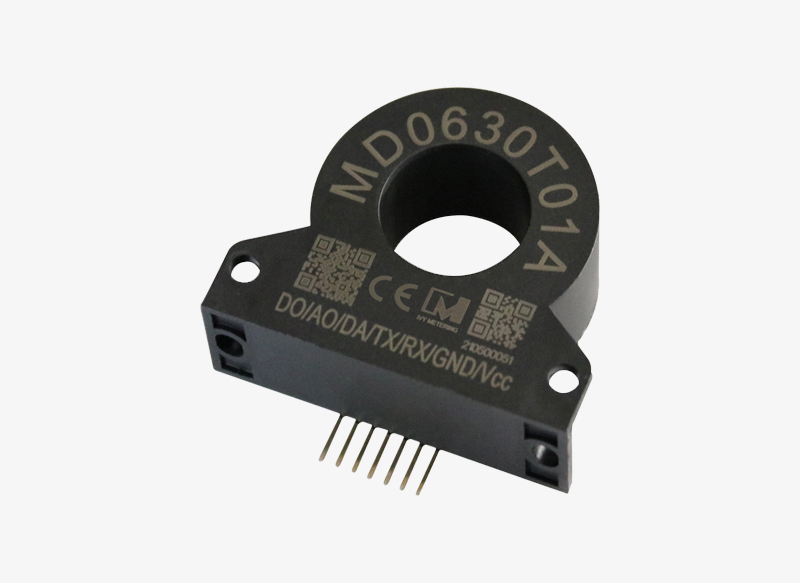

MD0630T01A EV PCB Mount RCD Sensor 6mA DC 30mA AC Residual Current Protective Device with UART Modbus

Product Introduction

IVY MD0630T01A is an automotive grade high sensitivity leakage current sensor also called residual current monitoring (RCM), residual current detection (RCD), differential current sensor, earth leakage detector, differential current sensor and fault current sensor. Dedicated to detecting to type AC/A/F/B leakage currents measurement. It is specifically developed for EV-charging providing all-current sensitivity. The sensor can issues an alarm signal in case of hazardous electrical faults (DC and AC). It has the characteristics of accurate measurement, small size and integration. The RCD sensor can be set separately for AC and DC leakage and has a digital output function. The MD0630T01A can monitor DC (6mA) and AC (30mA) residual currents, it is connected in series with the AC supply to an EV and will provide a signal output if a DC current ≥ 6mA DC flows in the circuit.

This small RCD protection device is practical and more cost effective for integrators to use and install into charging solutions. Primarily intended for use in Mode 2 Electric Vehicle In-Cable Control and Protection Devices (IC-CPDs) and Mode 3 Wallbox Charger, to output an alarm signal under AC or DC residual currents fault condition. The MD0630T01A is a compact solution designed to be mounted directly onto a PCB. Allows the protection of electric vehicle charging points. Besides, it widely used for photovoltaic systems, medical instruments, inverters, UPS, smart home, industrial machines, IOT etc. In addition, our delivery time is also guaranteed.

Product Features

1. Complies with the DC and AC protection requirements of IEC62752 or IEC62955

2. Small Size; Integration Design; Vertical(Pin, Pin&Cable Type)/Horizontal(Cable Type) Mounting Optional

3. Type B RCMU/RCD Protection; Type B Leakage Detection(Including AC/A/F)

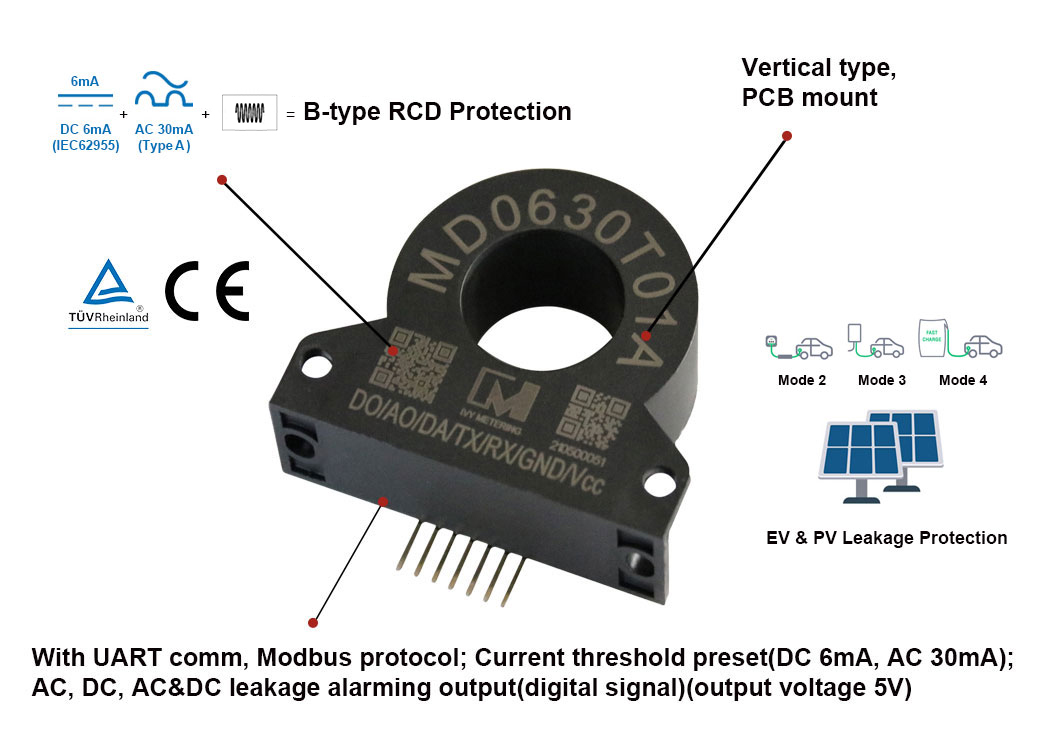

4. AC DC Leakage Data Readable; Alarm Value Programmable; 3 Way Alarm Outputs; Digital Output

5. With UART Comm and Modbus Protocol; Standard: EN 61000-6-3:2007+A1, EN IEC 61000-6-1:2019

6. Certification: TUV(IEC62955/IEC62752/IEC61851-1/IEC62196); UL2231-1/UL2231-2; IS17017; CE-EMC

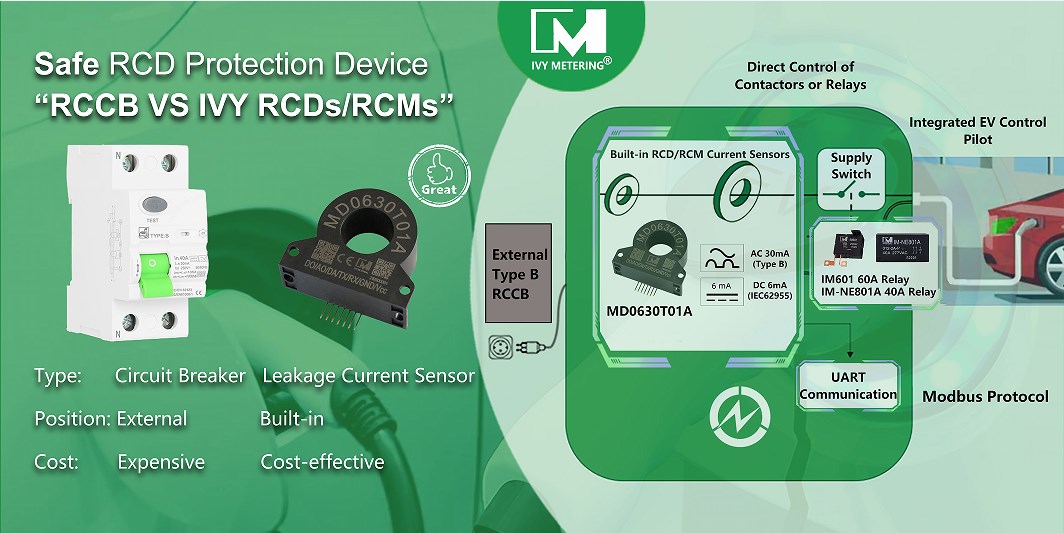

7. Electrical Safety at Low Cost (Compared to Type B RCCB)

8. Robust Mechanical and Electrical Design for Harsh Environmental Conditions

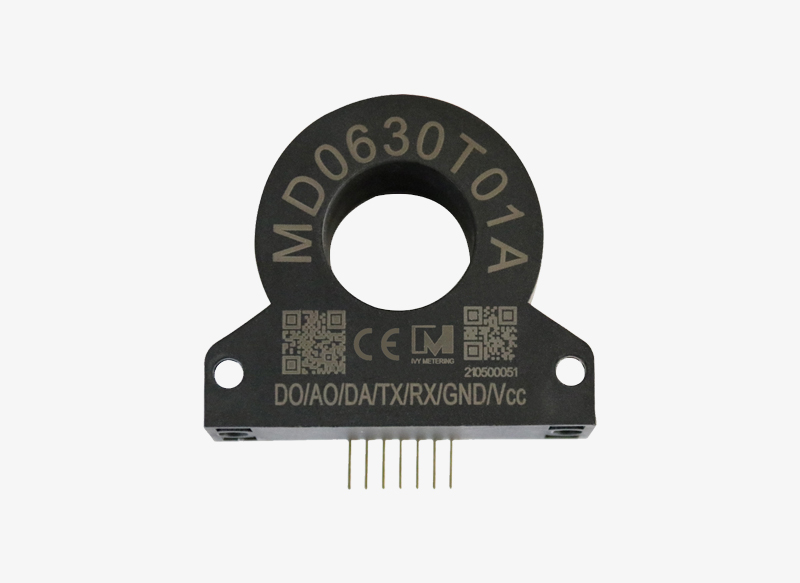

Pin Definition

Typical Application

• Ground fault current detection

• Solar inverter residual current

• Converter leakage current detection

• UPS and other power ground fault detection

• Electric vehicle charging station

• Single or 3 Phases differential current detection

• Indusrtrail Automation, Smart Home, IOT Field, Power Distribution Cabinet
