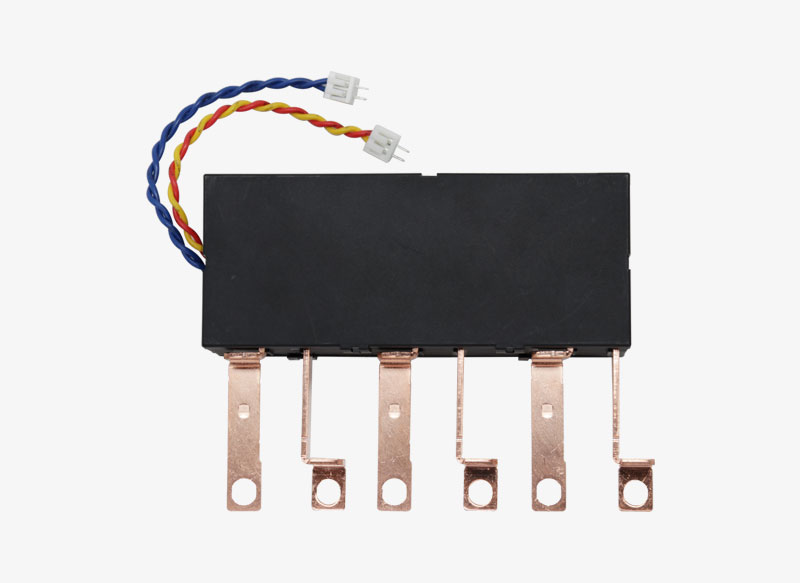

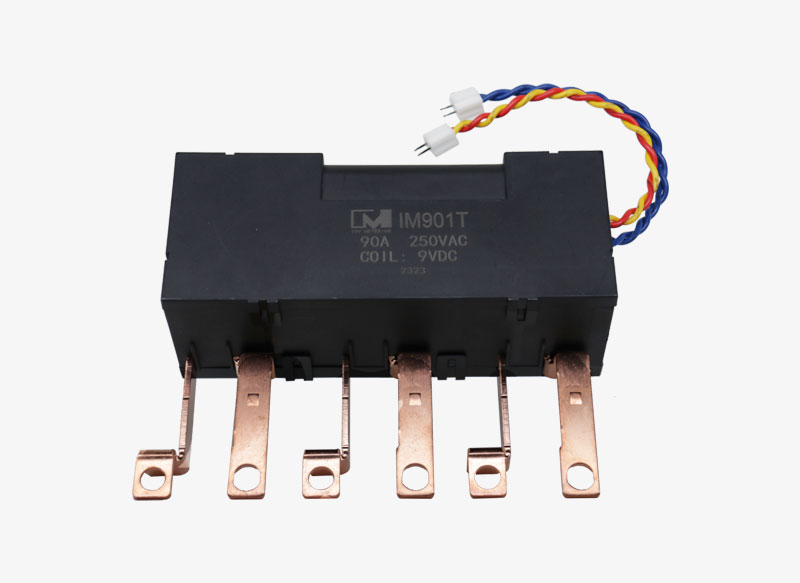

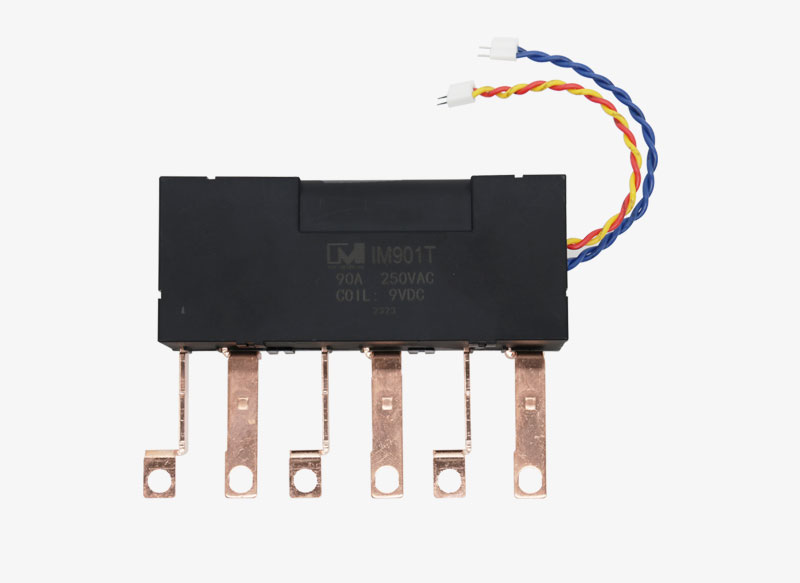

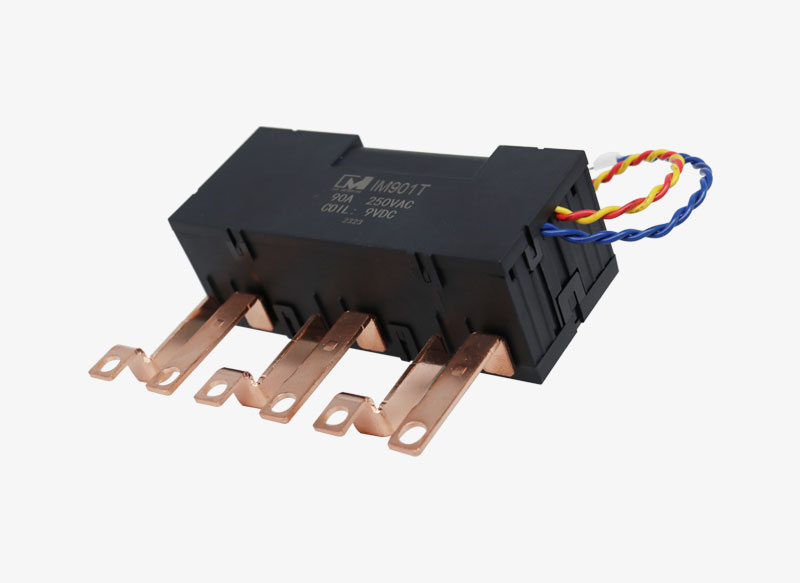

IM901T UC3 Compact 90A 12VDC 3 Phase Magnetic Latching Electromagnetic Relay for Energy Meter

Share :
Product parameters

Prouduct Details

IM901T is a three-phase latching relay designed for 3 phase smart meter. As a 90a 3 phase power latch relay, it has integrated design and long service life. This 3 phase magnetic latching relay have got RoHs/CE/IEC certificate, Energy-saving and pollution-free, there is a TUV certificate that meets the built-in relay of the electric meter. Generally speaking, a three-phase electric meter needs to be equipped with 3 single-phase relays, IM901T Relay has three sets of contacts and can meet the requirements, so it is cost-efficiency. Compared with other latching relays, the high power latching relay switch has the following characteristics:

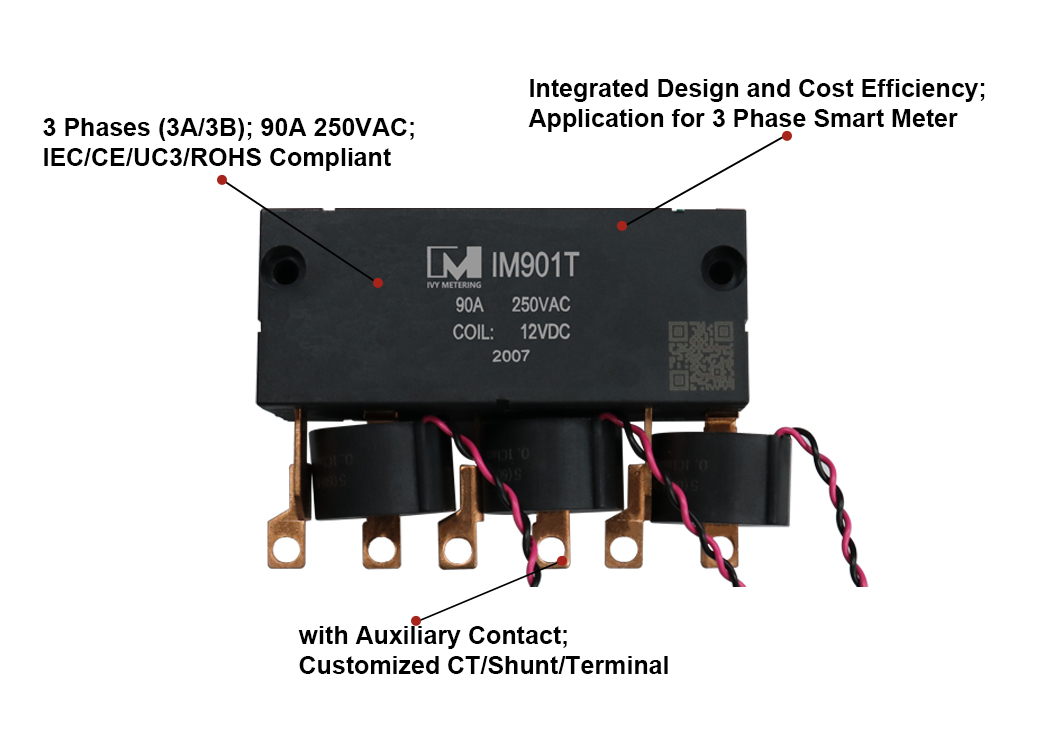

3 Phase (3A/3B);90A 250VAC Latching Relay;IEC/CE/UC3/ROHS Compliant

with Auxiliary Contact;Customized CT/Shunt/Terminal

Integrated Design and Cost Efficiency; Application for 3 Phase Smart Meter


IM901T UC3 RoHs 90A 250VAC 3 Phase Latching Relay Switch with CT/Shunt/Terminal

Product Parameters

Rated Load: 90A 250VAC

Contact Form: 3A/B

Contact Material: AgSnO2

Max. Switching Power: 22500VA

Contact Resistance: <2mΩ

Pick-up Time: 20ms

Release Time: 20ms

Electrical Endurance: 10000 Cycles

Mechanical Endurance: 100000 Cycles

Insulation Resistance: 1000MΩ(DC 500V)

Dielectric Strength:

Coil to Contact: 4000VAC,50/60Hz,1Min.

Across Open Contacts: 2000VAC,50/60Hz,1Min.

Ambient Temperature: -40℃~70℃

Ambient Humidity: 45%~90%RH

Vibration: 1.5mm(DA),10 ~ 55Hz

Shock Resistance:

Functional: 10G(100m/s2)

Destructive: 100G(1000m/s2)

Surge Immunity: 2200A/10ms
