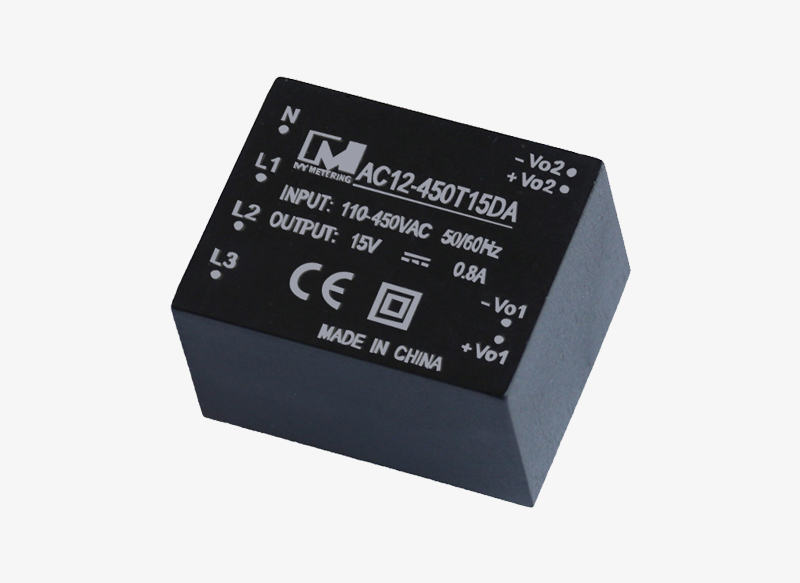

AC12-450T15DA Integrated Single Output PSU Modules Full Isolation AC-DC Switching Power Supply

Share :
Product parameters

1. Product Detail

AX series ac dc power module is a small size, high efficiency switching power supply for customers. This series of power supply module main features as follow: input voltage:110-450vac, output voltage:5v-15v, output power:5w-15w; 3 phase input voltage; single/dual way output optioal; four parameter mode optional; Over current / Short circuit /Over temperature protection, Self-furbish; PCB board in-line Type Installation. Built-in anti-4KV lightning surge and anti-EMI circuit at the power input. This series of products have important applications in many fields such as air conditioning, industrial equipment, medical instruments, lighting control, EV charger, smart cities, and the IOT field.


Compared with bare board power modules on the market, our ac dc converter has following advantages:

Anti-EMI circuit; Encapsulated type, PCB Mount

Isolation Withstand Voltage 4000VAC between Input and Output


AC12-450T15DA PCB Installation Withstand Voltage 4KVac AC DC Switching Power Supply

2. Technical Parameters

P/N

AC12-450T15DA

AC12-450S12DA

AC6-450T15DA

AC6-450S5DA

Input Voltage Range

110Vac450Vac

Output Voltage/Current

Vo1(V)

15V

12 V

15 V

5V

Io1(mA)

800mA

1000mA

1000mA

1200mA

Vo2(V)

15V


15V


Io2(mA)

50mA


50mA


Maximum  Capacitive Load

1000 uF

Input Frequency Range

120mVp-p

120mVp-p

120mVp-p

80mVp-p

Ripple & Noise (20MHz,Full Load)

70%

70%

76%

78%

Standby Power Consumption

0.15W

Short-circuit Power

1.20W

Input Current

2.3mA (Max) @Vin=110Vac

2.2mA (Max) @Vin=220Vac

Voltage Accuracy

Vo1±0.5%TYP,1.0%Max;Vo2±3.0%TYP,5.0%Max;

Efficiency

Basic voltage input,full load

Vo≤5.0V,73% typical

Vo>5.0V,80% typical

Switching Frequency

60KHz (Typical)

Operating Temperature

-40℃~+85

Temperature Effect

0.02%/℃ (Main)

Storage Temperature

-40℃ ~ +105℃

Max Case Temperature

+95℃

Relative Humidity

10%~90%

Case Material

Flame Retardant Material

Isolation Voltage

Input & Vo1 Input-output 4000Vac ≤ 1.5mA/1minInput & Vo2 Input-output 1500Vac ≤ 1.5mA/1min

(MTBF)

>300,000H @25


3. Pin Assignments

Pin Assignments

1

2

3

4

5

6

7

8



Single Way(S)

AC(L3)

AC(L2)

AC(L1)

AC9N)

+Vo1

-Vo1

NC

NC

Input N

Input L1

Input L2

Input L3

Input +

Output -





Double Way (T)

AC(〇)

AC(L2)

AC(L1)

AC(N)

+Vo1

-Vo1

+Vo2

-Vo2

Input N

Input L1

Input L2

Input L3

Input1 +

Output 1 -

Output 2 +

Output 2 -
