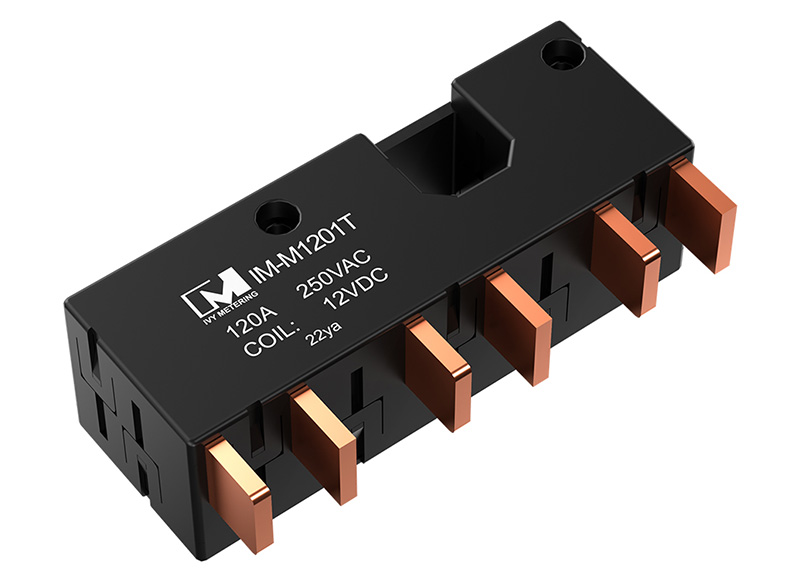

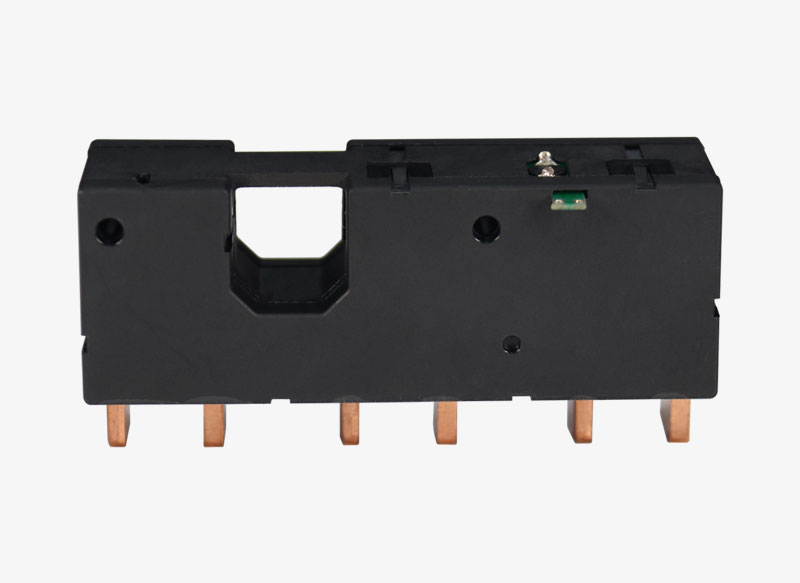

IM-M1201T Low Consumption 120A 250VAC 3A/3B 12VDC Miniature 3 Pole Motor Latching Relay for Smart Meter

Share :
Product parameters

Prouduct Details

IVY is specialized in the research, development, and manufacturing of high powered, high quality, highly reliable latching relays. We offer latching relays from 32A to 200A for both single, dual and three phase switching purposes. Our relays are designed to meet the industry's highest performance standard and it offers the best value in the Metering Market. We develop the product using innovative ways to save money and power for both consumers and producers of electricity. We are adhered to provide the best product with the lowest failure rate in the industry.

Latching relay is a new type of relay which uses magnetic principle to control circuit's on and off. Its normally open and closed state are provided completely by permanent magnet steel'working and completed the conversion of on-off state base on the triggering of a certain width pulse signal.


IM-M1201T is a new 3 phase motor latching relay, compared with 3 phase magnetic latching relay, It has the following characteristics:

Driven by internal small motor instead of coil drive, saving power and stable performance.

Small size, light weight, compact structure, cheaper price, built-in 500mT anti-constant magnetic field.


IM-M1201T Anti-Magnetic 500mT 120A 250VAC 12VDC 3 Pole Miniature Latching Relay for Three Phase Meter


Product Parameters

Basic parameters

Dimensionmm

79*28*25.5mm

Weight

103g

Ambient

-45~+85

Contact parameters

Contact Material

AgSnO2

Contact Arrangement

3A/3B

Contact Resistance

1.0mΩ

Contact Load

250VAC,120A

Electrical Life

32ΩMotorControl voltage DC12~15V, rated resistive load

≧5000 cycles

12ΩMotorControl voltage DC12V, rated resistive load

10000 cycles

Mechanical Life

Control VoltageDC12V Contact no load or micro current load

50000 cycles

Performance parameters

Rated Driving Voltage

32ΩMotor

12VAdvise pulse width 130-150ms

32ΩMotor

15VAdvise pulse width 90-110ms

12ΩMotor

10VAdvise pulse width 80-100ms

12ΩMotor

12VAdvise pulse width 70-80ms

Motor Resistancetwo styles optional

321±15%)Ω

121±15%)Ω

Vibration

1.5mm(double amplitude),10~ 50Hz

Shock

1000m/s²,(100G)

Surge Current

6000A/10ms

Insulation Resistance

1000MΩ(500VDC

Dielectric Strength

Motor to Contact

4000VAC,1 min

Across Open Contact

2000VAC,1 min

Pole to Pole Contact

4000VAC, 1min

Closing time at rated drive voltage

32ΩMotor12V

110ms

32ΩMotor15V

80ms

12ΩMotor10V

70ms

12ΩMotor12V

60ms

Breaking time at rated driving voltage

32ΩMotor12V

80ms

32ΩMotor15V

50ms

12ΩMotor10V

50ms

12ΩMotor12V

40ms


TYPICAL APPLICATION:
Mainly used for prepayment electric energy meters, RS485 meters with the break & make function used in centralized meter reading system;
It might also be used for combination switches of electiric power factor compensation switch-capacitor, home appliances and automatic control devices.
