IM901 UC3 Approved Single Dual Coil Remote Control 90A High Power Latching Relay Solar Relay

Share :
Product parameters

Prouduct Details

IM901 is 90A high power magnetic latching relay, this automotive latching relay can be used in EV charger and Solar PV System.

Custom Assemblies  with Integrated Shunts, Flex-wire and Copper Extensions and Brass Terminals

As a miniature type switch breaker also pass UC3 certification,

Dielectric Strength of 4kV

RoHS Compliant Materials and Process

This super compact 250vac relay can be widely used in Energy Meter,RCCB, EV Charger, IOT Device etc.

Rated Coil Consumption: 1.5 / 3W(20ms)

Cost Efficiency & Surge Protection

Single Coil Double Coil Optional

Compact Size:38*30*16.5mm

External Shielding Case Available

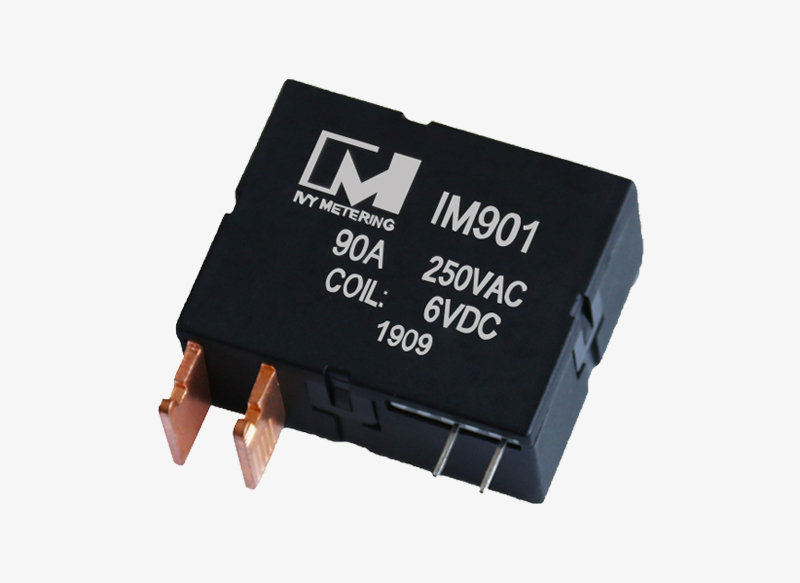

IM901 Remote Control High Power Dual Coil Latching Relay 24V with 90A 250VAC

Product Parameters

  • Contact Form: 1A/B

  • Contact Material: AgSnO2

  • Max. Switching Voltage: 250VAC

  • Max. Switching Current: 90A

  • Max. Switching Power: 22500VA

  • Contact Resistance: <2mΩ

  • Pick-up Time: 20ms

  • Release Time: 20ms

  • Electrical Endurance: 10000 Cycles

  • Mechanical Endurance: 100000 Cycles

  • Temp.Rise: ≤55K When Ambient 40℃
