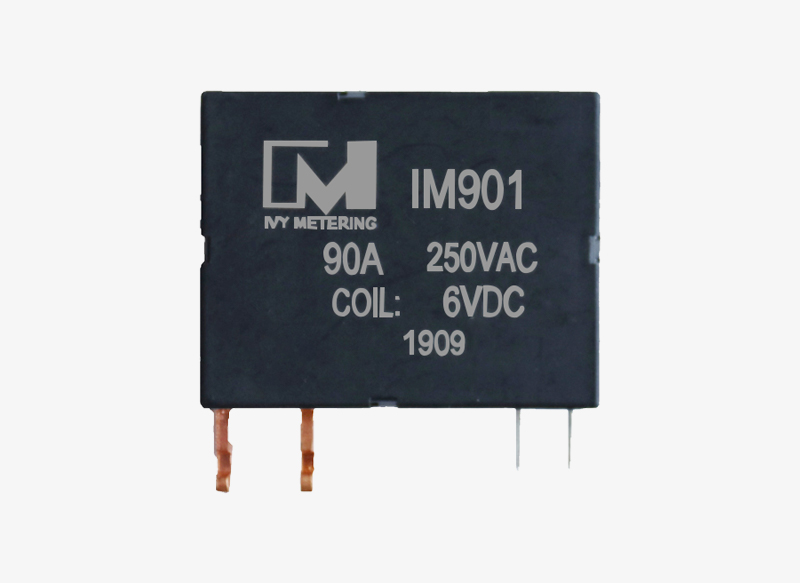

IM901 90A 12VDC 24VDC 250VAC Remote on-off Magnetic Switch Bistable Latching Relay

Share :
Product parameters

General

Relay is a kind of automatic switching component with isolation function, which is widely used in Remote control, remote measuring, telecom, automatic control, integration of machinery and Electrification, electric and electronic equipments. It's one of the most important controlling Components. Generally, relays have the inductive organ (input part) that can reflect the input value (such as Current, voltage, power, impedance, frequency, temperature, pressure, speed, light etc. ); Have the executive organ (output part) that has the capability of switching the controlled circuit "on" or "off"; Between the input and output parts, there is the medium organ (actuator) that can make Input value coupling-isolation and drive the output part.


IM901 90A 220V Power Switching Relay UC3 Meter Relay SPDT Latching Relay

Prouduct Details

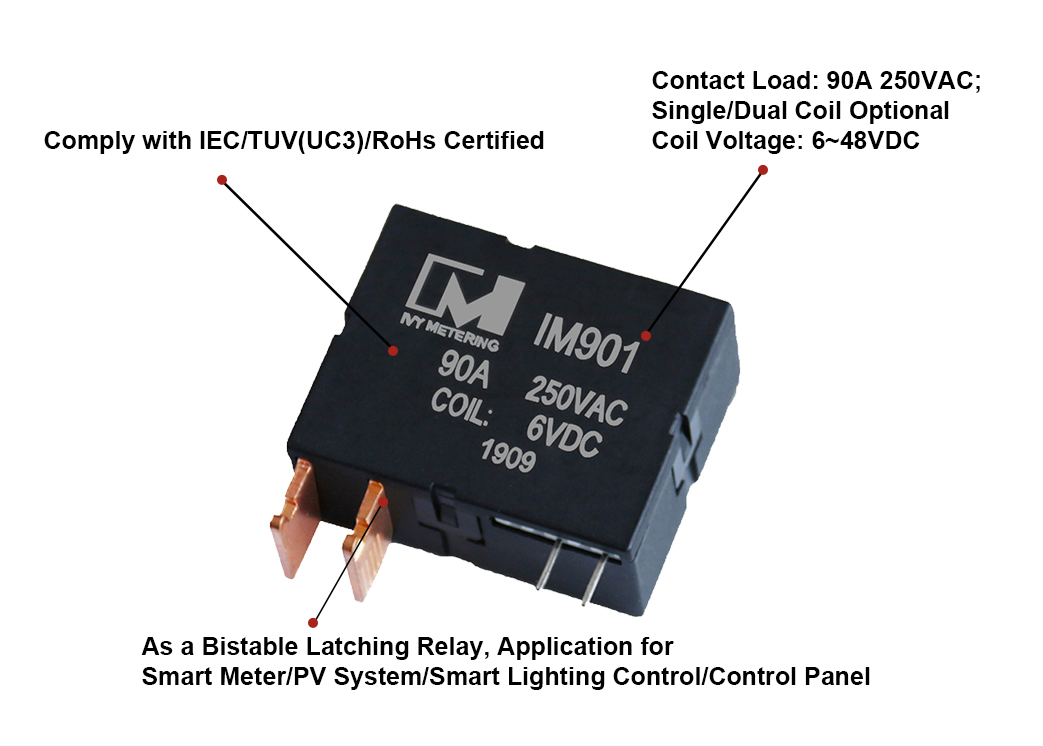

IM901 is 90A high power magnetic latching relay, this bistable latching relay are widely used in smart meter/solar system/EV charger.

Custom Assemblies  with Integrated Shunts, Flex-wire and Copper Extensions and Brass Terminals

As a miniature type switch breaker also pass UC3 certification

Dielectric Strength of 4kV

RoHS Compliant Materials and Process

This super compact 250vac relay can be widely used in Energy Meter,RCCB, EV Charger, IOT Device etc.

Rated Coil Consumption: 1.5 / 3W(20ms)

Cost Efficiency & Surge Protection

Single Coil Double Coil Optional

Compact Size:38*30*16.5mm

External Shielding Case Available

IM901 90A 12V Spst Relay Electronic Latching Relay for Lighting Control Device

Product Parameters

  • Contact Form: 1A/B

  • Contact Material: AgSnO2

  • Max. Switching Voltage: 250VAC

  • Max. Switching Current: 90A

  • Max. Switching Power: 22500VA

  • Contact Resistance: <2mΩ

  • Pick-up Time: 20ms

  • Release Time: 20ms

  • Electrical Endurance: 10000 Cycles

  • Mechanical Endurance: 100000 Cycles

  • Temp.Rise: ≤55K When Ambient 40℃


Application

- Prepayment energy meter

- Smart meter

- Concentrated meter reading system

- Street lamp control system

- Compound switch, Combination switch

- Automatic control device/ system

- AMR system

- Elevator control
