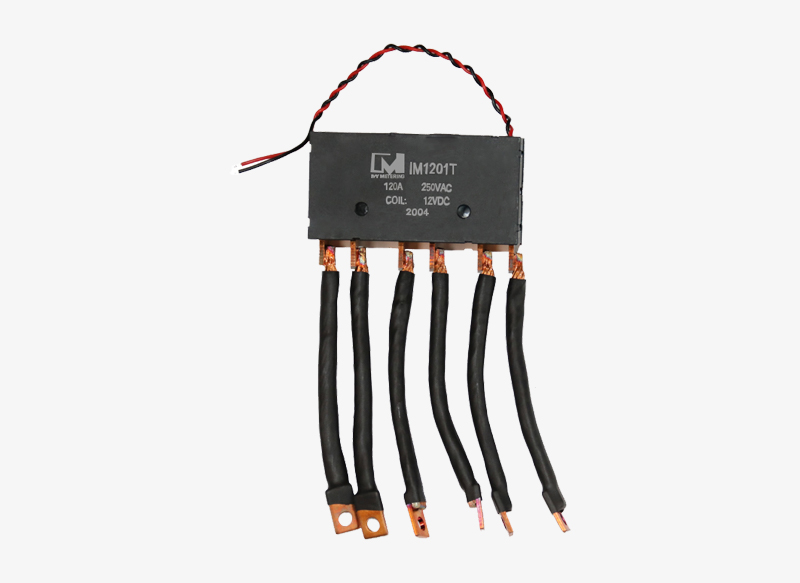

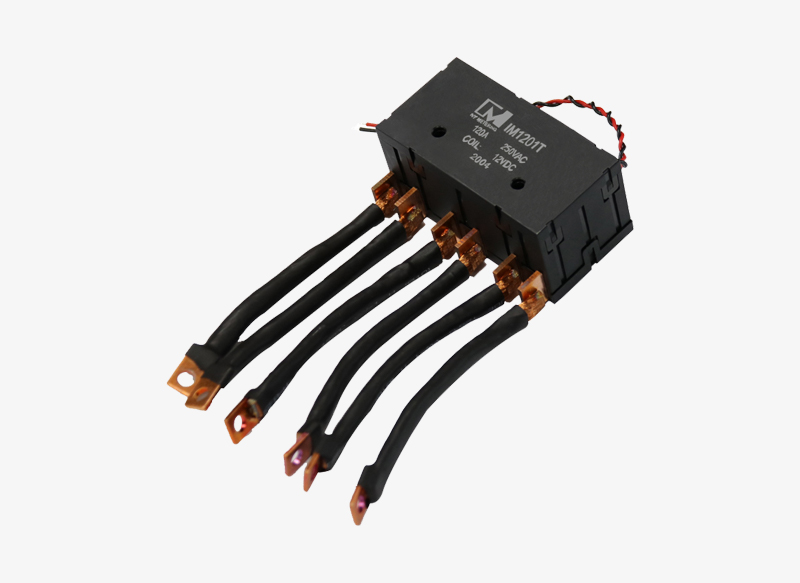

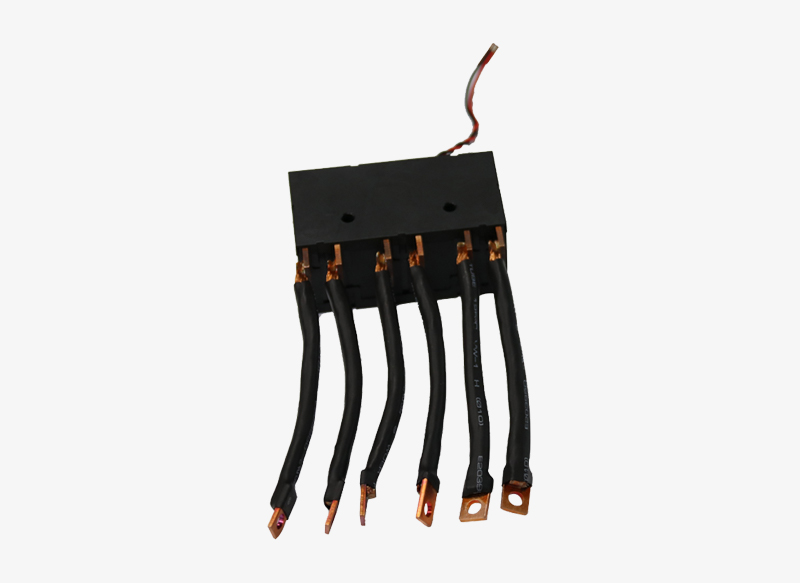

IM1201T Customized 120A Coil 12VDC 24VDC 3 Phase Power Latch Relay for Industrial Automation

Share :
Product parameters

Prouduct Detail

IM1201T is a 120A 3 phase latching relay built for the global metering market. This relay is able to switch 120 Amps while still maintaining a very low temperature rise. It is also available with an integrated CT/Shunt.

IM1201 is ideally designed for electric meters for the global metering market. Our metering customers have been pleased with the product's performance and reliability. Given our ability to understand our customer's needs, we've been able to design, build, and test customized solutions that allow them to receive our products and plug them right into their systems without additional assembly.

IM1201T is a three-phase latching relay. As a compact 3 phase monitoring relay, it has stable performance and long service life. It's main characteristics as follows:

Three poles contact, three way control, contact form: 3A/3B

Maximum switching current 120A, with auxiliary switch

UC3 capability as per IEC 62052-31, RoHS compliant

Custom Assemblies  with Integrated Shunts, Flex-wire and Copper Extensions and Brass Terminals

Wide Application for Energy Meter, RCCB, EV Charger, IOT Device, Ligting System, Industrial Control.


IM1201T 120A External CT Assembly Automotive Latching Electromagnetic Relay

Product Parameter

  • Rated Load: 120A 250VAC

  • Contact Form: 3A/3B

  • Rated Coil Consumption:  3.0/6.0W(30ms)

  • Dielectric Strength: 4kV

  • Compact Size:78.6*40.3*37.8mm

  • Contact Material: AgSnO2

  • Max. Switching Power: 30000VA

  • Contact Resistance; <2.0mΩ

  • Pick-up Time; 30ms

  • Release Time: 30ms

  • Electrical Endurance; 10000 Cycles

  • Mechanical Endurance; 100000 Cycles

  • Temp.Rise; ≦55k

  • Ambient Temperature: -40℃~70℃

  • Ambient Humidity; 5%~98%RH
