Product parameters
Product Introduction
A motor latching relay is a special bistable relay based on latching principles. Unlike ordinary electromagnetic relays, it does not require continuous energization to maintain the closed or open state of the contacts. This type of relay is particularly suitable for industrial and control applications requiring energy saving and state memory.

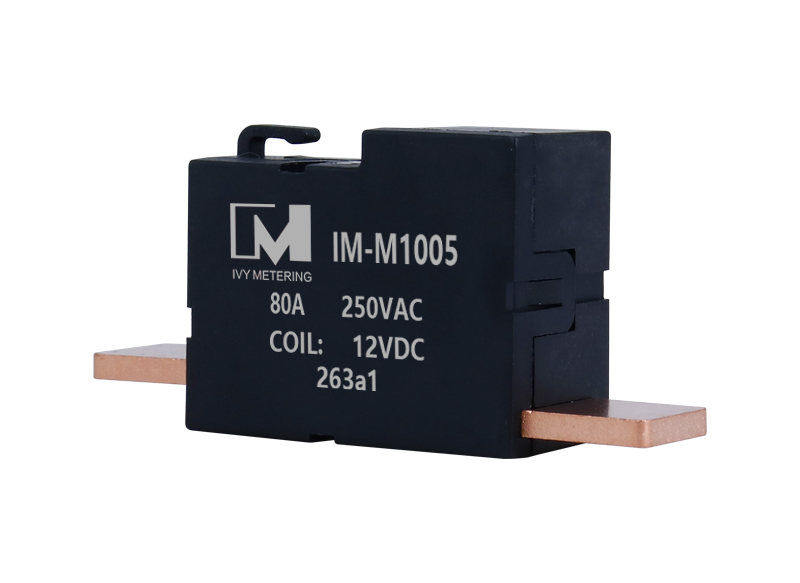

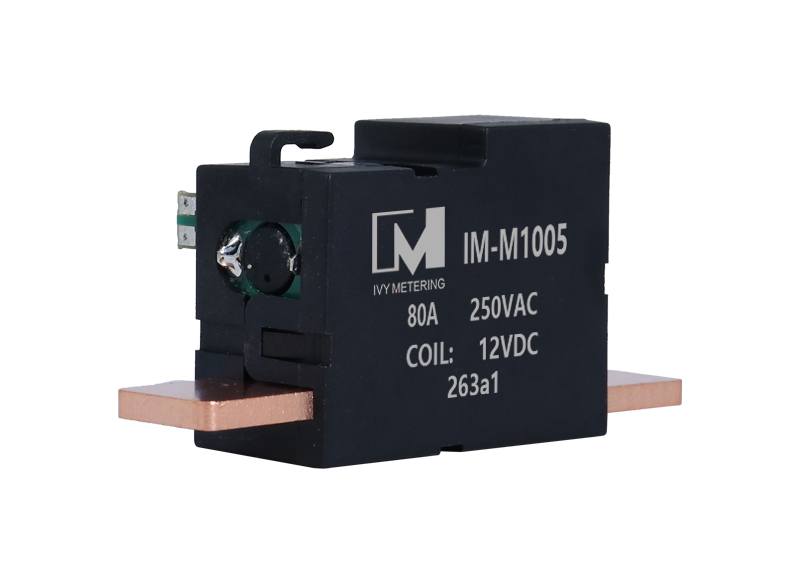

IM-M1005 motorized latching relay is an 80A automatic control switching element suitable for high load current and low power consumption motor-driven. It is mainly used in smart meters, industrial control, equipment power distribution, and other fields.
Product Main Description
Rated Load: 80A 250VAC
Contact Form: 1A/1B
Rated Drive Voltage: 12VDC
Recommended Drive Pulse Width: 80-100ms
Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt

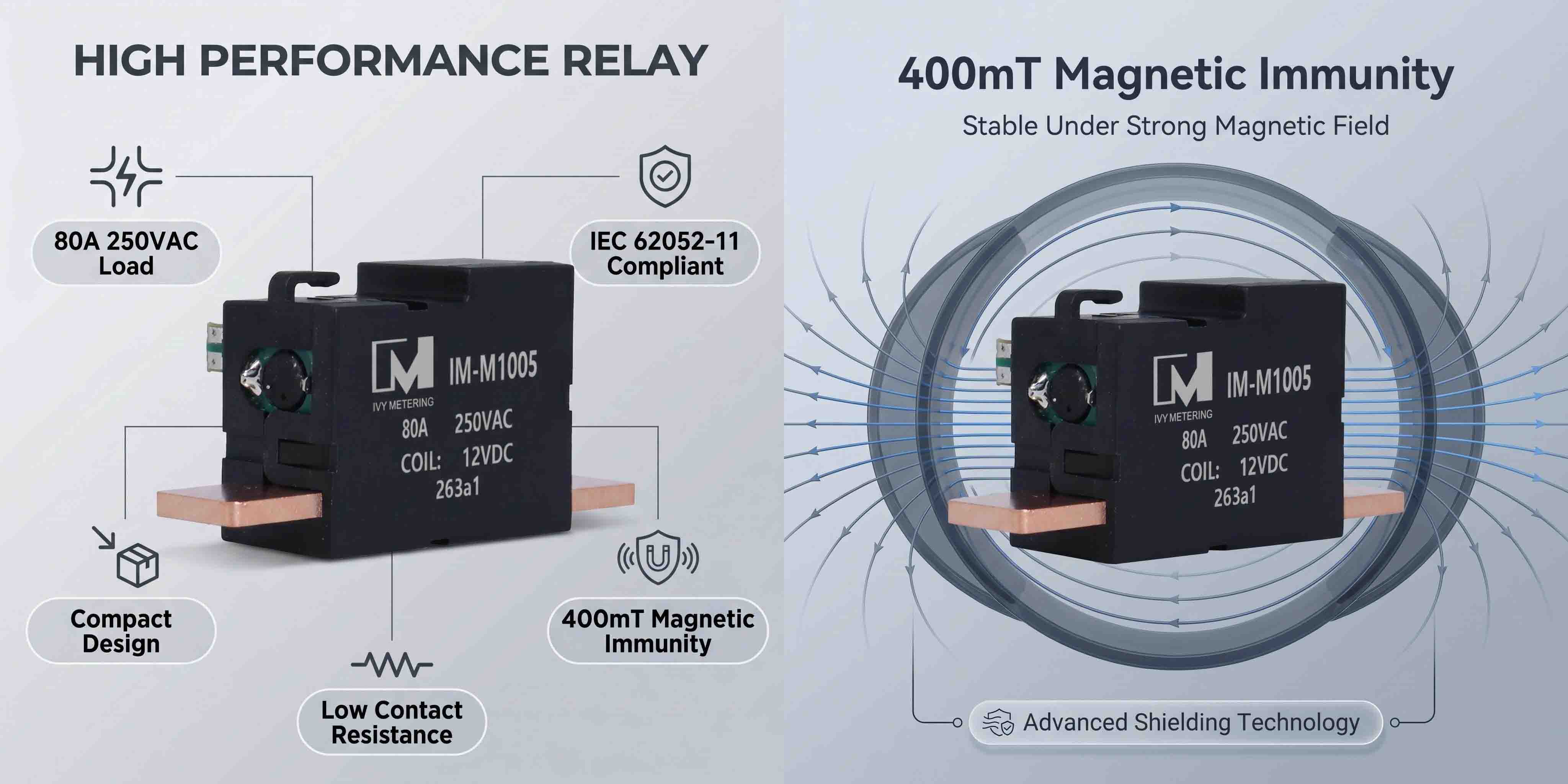

The motor has strong magnetic resistance characteristics and can directly meet the requirements of the latest IEC62052-11 400MT.
Core Advantages of Motor Latching Relays
Strong Anti-interference Capability and State Memory: Even if the system loses power, the relay will lock in its last state. When power is restored, the system can automatically maintain the previous logic operation, making it suitable for power outage protection scenarios.
No Coil Heat and Long Lifespan: Since there is no need for continuous power to maintain the state, no electrical energy flows through the coil, solving the coil aging and temperature rise problems caused by long-term operation of traditional relays, significantly extending its service life.
Structural Design Advantages: The new motor holding relay has a unique structure, typically using reduction gears and other transmission methods, achieving a compact structure while ensuring high load capacity.
Application areas:
Smart meters (prepaid control),
Industrial automation control,
Remote switching on/off,
Smart home systems, etc.
