IVY Metering specializes in the research, development, and manufacturing of high-power, high-quality, highly reliable latching relays. We offer latching relays from 40A to 200A for both single, dual, and three-phase switching purposes. Our relays are designed to meet the industry's highest performance standards, and we offer the best value in the Metering Market. We develop the product using innovative ways to save money and power for both consumers and producers of electricity. We are adhered to provide the best product with the lowest failure rate in the industry.
IVY Metering IM-M801D/IM-M1001D/IM-M1202D series 60A 80A 100A 2-phase relays are newly launched! Compared with similar latching relays, small in size, low contact resistance, permanent magnetic immunity up to 500mT, strong contact pull-in ability, and anti-shock/vibration ability.
Product Advantages
100A 250VAC two poles contacts switching capability
Small size, high reliability, stable performance
Resistance to external static magnetic field up to 400mT/500mT
Strong anti-shock/vibration ability and low contact resistance
Built-in small motor driven, with auxiliary switch
In accordance with IEC 62055-31 IEC 62052-11:2020 UC3
Custom assemblies available with flexible wire, copper straps, CT, and with integrated shunt
Product Parameters
Basic Parameter | dimension | 34.5*46.7*18mm | |
weight | ≈46g | ||
ambient temperature | -40~+85℃ | ||
Contact Parameter | Contact material | AgSnO2 | |
Contact form | 2A/2B | ||
contact resistance | ≤0.6mΩ（DC6~24V，1A） | ||
Maximum switching current | 100A | ||
Maximum switching voltage | 250VAC | ||
Performance parameters | Rated voltage | 12VDC | |
Motor resistance（R±15%） | 32Ω | ||
Motor power consumption | 4.5W | ||
vibration | 1.5mm(double amplitude),10~55Hz | ||
Anti-shock resistance | 1000m/s² (100G) | ||
Insulation resistance | ＞1000MΩ（500VDC） | ||
dielectric strength | motor to contacts | 4000VAC,50/60Hz，1min | |
across open contacts | 2000VAC,50/60Hz，1min | ||
Short circuit current withstand capability | 6000A（50/60Hz）, ≈10ms | ||
pulse time | 50ms~80ms（Advise） | ||
pull-in time | ≤45ms | ||
release time | ≤45ms | ||
Electrical life | 10000cylcle（resistive load 100A 230VAC） | ||
Mechanical life | 100000cylcle | ||

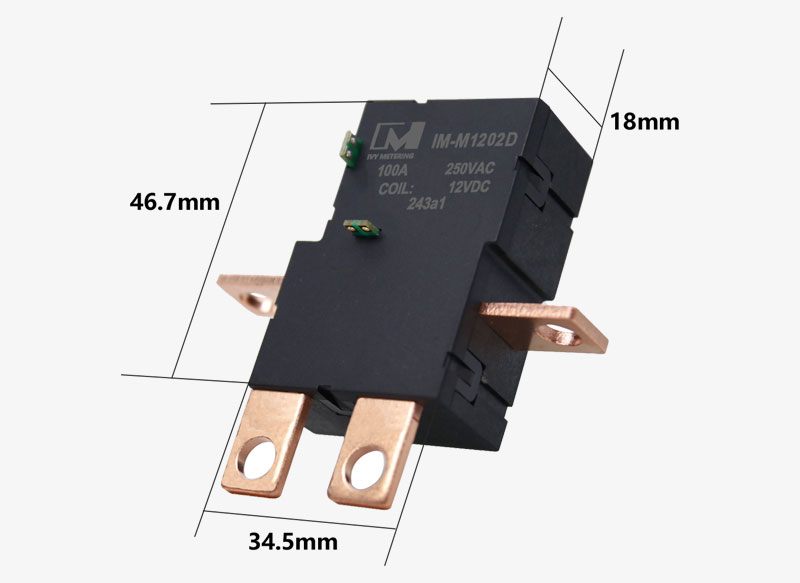

Product Dimension
TYPICAL APPLICATION：
Mainly used for prepayment electric energy meters, RS485 meters with the break & make function used in centralized meter reading system;
It might also be used for combination switches of electiric power factor compensation switch-capacitor, home appliances and automatic control devices.
