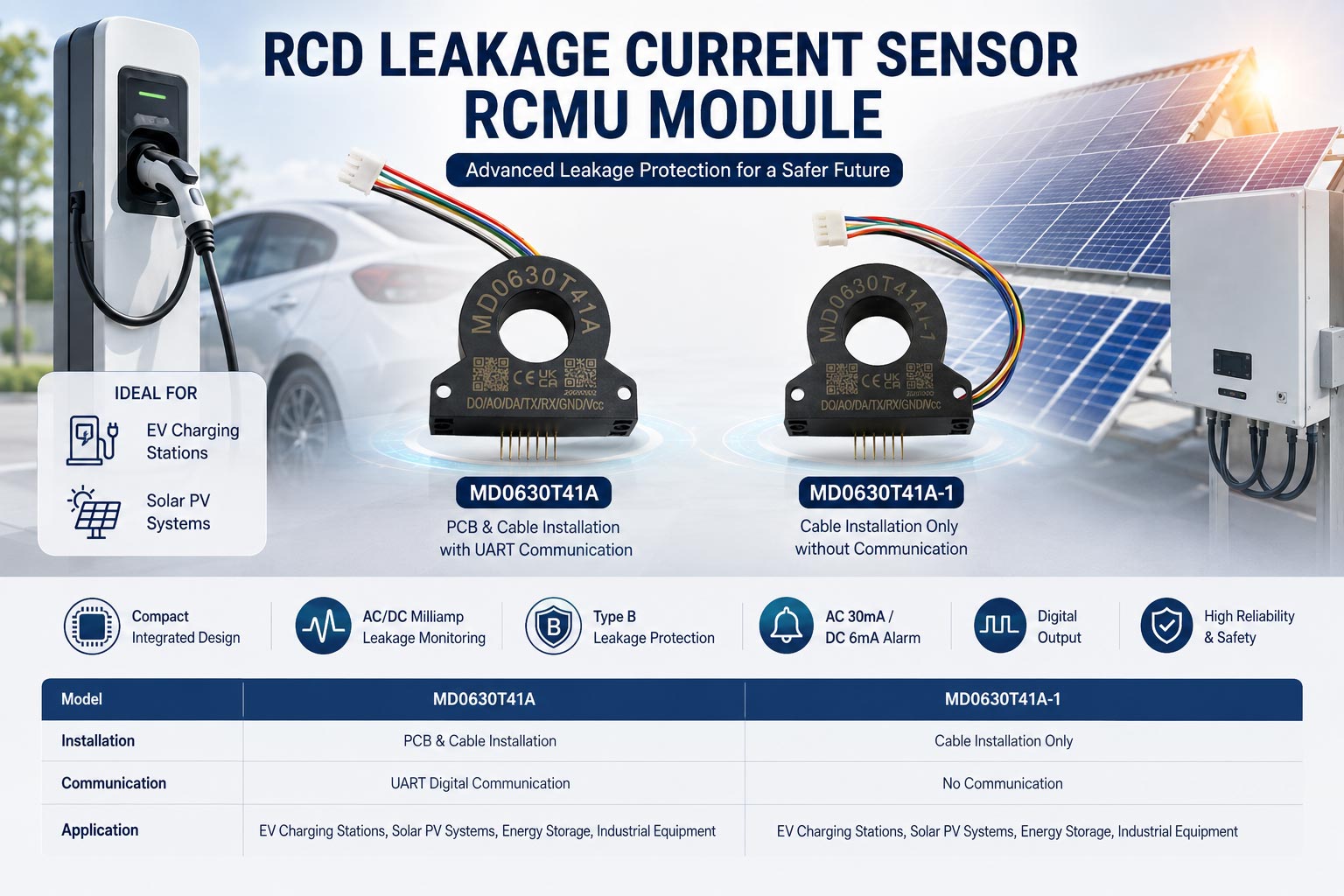

MD0630T41A-1 Cable Type Built-in Switch Output Earth Leakage Detector RCM Device Residual Current Sensor

Share :
Product parameters

Product Details

MD0630T41A-1 is an AC DC leakage current sensor (residual current monitoring) for EV charging station. It has the characteristics of high sensitivity, correct measurement, small size and compact/integration design. The residual current monitor can be set separately for AC and DC leakage. When leakage current is detected, an alarm signal is generated, and the switch control signal is output at the same time. The RCD sensor is connected in series with the AC supply to an EV and will provide a signal output if a DC current ≥ 6mA DC flows in the circuit. It can monitor DC (6mA) and AC (30mA) residual currents, and will signal to the Smart EVSE if a fault occurs.


To satisfy new standards including IEC 62752, IEC 62955, IEC 61851-1 etc, the charging of electrical vehicles requires residual current sensors to avoid hazardous situations in cases where the vehicle battery (DC) is connected to the home power supply (AC). This is new type of Fluxgate Current Sensor; it's based on the principle of magnetic modulation. It can be used to measure leakage currents including DC, AC, and AC and DC stacks, generally used as a DC leakage current detection and protection in equipment that uses DC operation.


MD series sensor are type B RCD/RCM, which are used where DC residual currents could occur, in addition to normal AC, can detect high-frequency AC and pure DC earth leakage currents. The tripping conditions are defined with different frequencies from 50Hz to 1kHz. Reducing the risk of fire or electrocution through output digital alarm signal. MD series Type B RCD is an ideal protection device against different leakage currents in applications of electric vehicle charging, photovoltaic systems (solar panels), industrial device, medical device, new energy, DC screen, fire distribution cabinet, IOT field etc.


MD0630T41A-1 IEC62752 EVSE Solutions Type B RCM 30mA AC 6mA DC Residual Current Monitoring Device


Product Feature

1. Fixed 6mA DC and 30mA AC trip levels; built-in switch output, 4KV isolation withstand voltage

2. Small Size, Integration Design, Vertical(Pin, Pin&Cable Type)/Horizontal(Cable Type) Mounting Optional

3. Integrated self-monitoring and test functions, Digital Output, Residual Fault Leakage Current Protection

4. AC DC Leakage Data Readable; Alarm Value Programmable; 3 Way Alarm Outputs

5. UART Comm, with Modbus Protocol; Standard: EN 61000-6-3:2007+A1 ,EN IEC 61000-6-1:2019

6. Professional Certification: TUV(IEC62955/IEC62752/IEC61851-1/IEC62196); UL 2231-1/UL 2231-2; CE-EMC

7. Used in EV Charger Project (Suitable for single phase load up to 80A or three phase loads up to 3*32A)


Product Parameters

Wide voltage input: 12V±20%

Measuring current range: DC current 2-15mA; AC current 3-100mA (default threshold: DC 6mA, AC 30mA)

Accuracy class: at 25℃, DC±0,2mA, AC±0.3mA

Working environment temperature: -25℃~+80℃

Installation: Cable Type

Plastic casing: SIP encapsulation


Typical Application

Charging mode 2

IC-CPD in charging cables for electric vehicles (EV) and plug-in hybrid electric vehicles (PHEV)

Charging mode 3

Wallboxes for charging EV and PHEV

Charging piles for charging EV and PHEV
