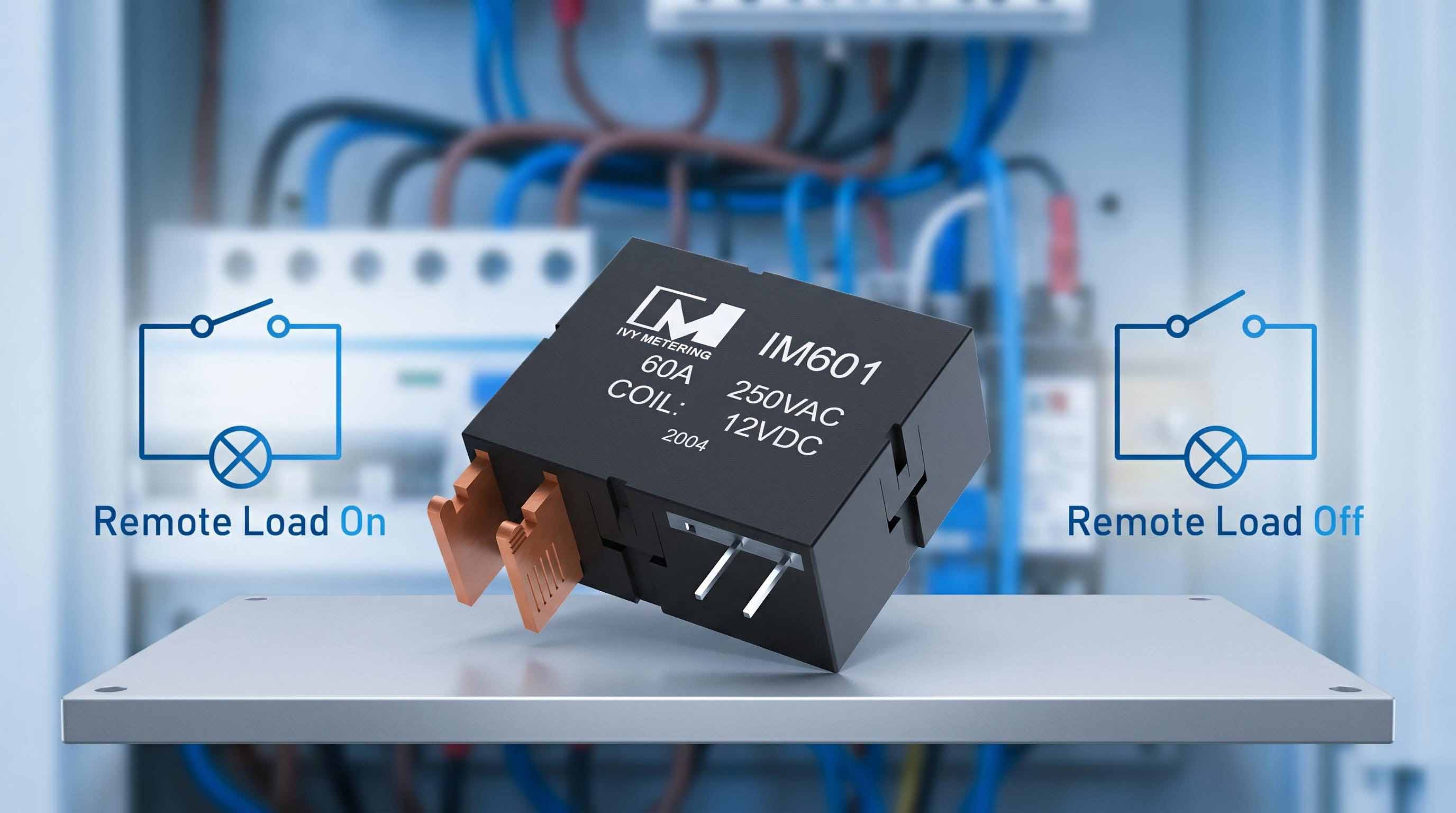

IM601 IEC62955 60A 230-250VAC Dual Coil 12VDC PCB Mount Bistable Latching Relay for AC EV Charger

Product Introduction

IVY specializes in the development and manufacturing of high-quality power latching relays. We offer a line of latching relays spanning from 32A to 200A for single-phase Two-phase and three-phase switching purposes. our relays meet the industry's highest performance standards and offer the best value in the energy management market. IVY latching relays are highly customisable with many variants of terminal arrangements, which can be made to suit customer's needs. Shunts and current transformers can also be included to special order.

AC switching elements are a crucial part of safety and protection function in charging stations and cables. Key parts of the IVY line-up are the 40A IM-NE801A 2 pole power relay and 60A IM601 bistable relay. They can be used in the latest generation of wallboxes which fulfill either IEC 61851-1 or the recent IEC 62955 norm. IM601 is a small industrial bistable latching power relay with continuous current up to 60A, and switching 60A 250VAC. Single and Double coil latching. Used in smart meters and for solar inverter, EV charger and lighting control etc.

Product Features

Switching Capacity: 60A, 250VAC; Single/Dual Coil Optional

Coil Voltage:6~48VDC; Long Electrical Endurance

4kV dielectric strength between coil and contacts

Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt

RoHS compliant materials and process

IEC62055-31 UC2 Certified

Application Scenarios

1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation equipment, etc.

4) New Energy Field: EV charger, PV Inverter

Product Parameters
