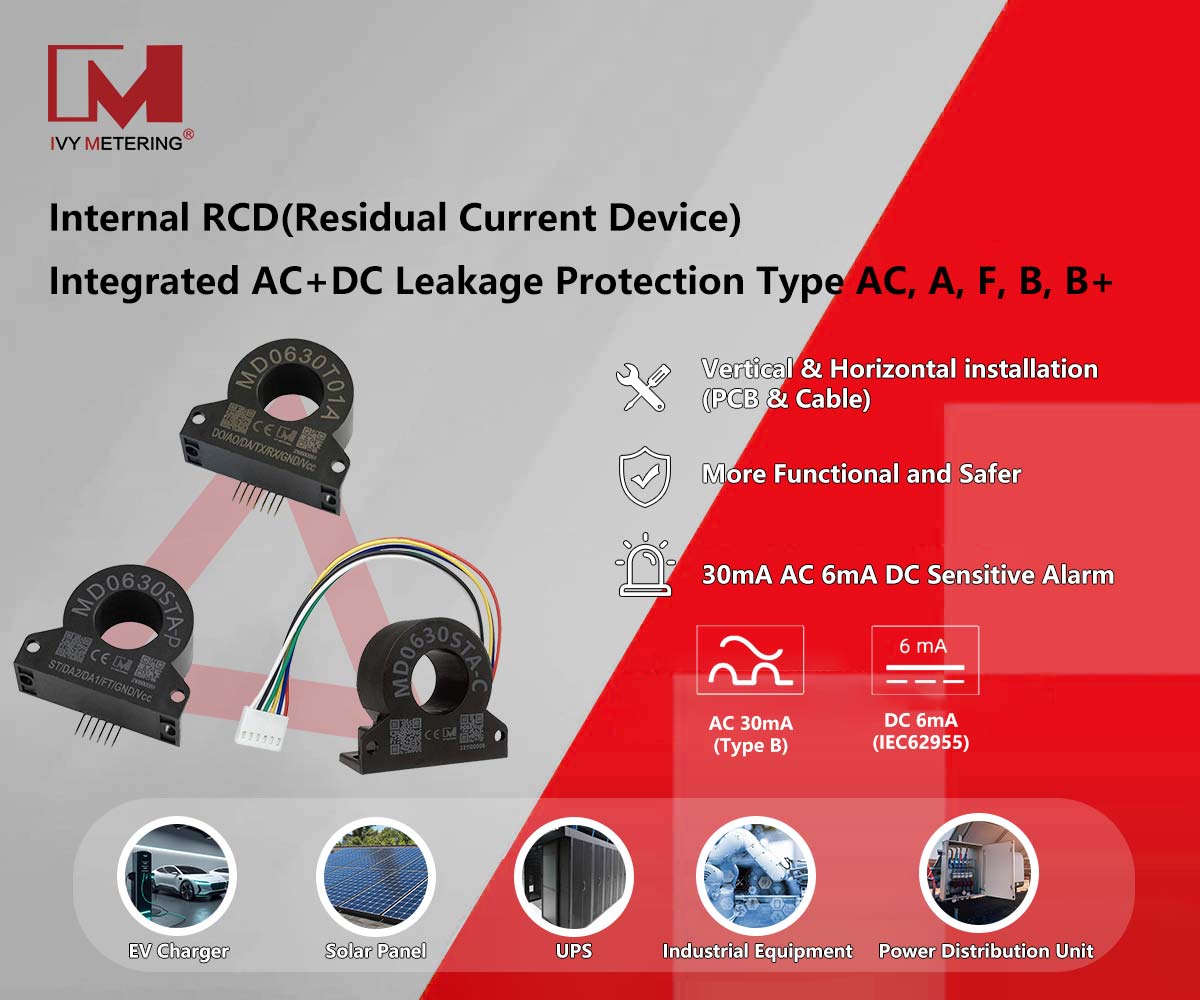

The MD0630STA-C residual current protection device is a high-sensitivity B-Type RCD sensor with open collector output of fault detection and integrated self-testing functions. Via self-testing function, It can be used to judge in real time whether the sensor is in a normal working state. If the sensor fails, the self-test output terminal will not be able to output a feedback signal. When a DC leakage current of 3~6mA or an AC leakage current of 15~30mA is detected, an alarm signal will be output.
This built-in sensor module monitors for and immediately blocks electric risks that may occur during an electric vehicle's charging. This module is cost-effective as it does not require the installation of a separate breaker. It is a leakage protection residual current sensor specifically developed for EV charging providing all-current sensitivity. Charging of electric vehicles at a standard wall socket or a wall box requires protection devices against DC fault currents to avoid electric shock. Installed type A residual current circuit breakers (RCCBs) are unable to identify and deactivate DC fault currents.
It can not only detect AC fault current, DC pulsing and smooth DC fault current, but also sinus wave AC fault current at a high frequency up to 1kHz. In addition to the use of charging piles. Also suitable for solar inverters, fire distribution cabinet, UPS, smart home, industrial machines, IOT etc. Provide more reliable protection. Protecting personal and electrical equipment safety.
Product Advantages
DC 2~15mA/AC 3~100mA micro current detection
DC 3~6mA/AC 15~30mA Alarm (Needn’t Set)
Self-test Function, Open collector alarm output
Electrical safety at low cost (compared to RCCB type B)
Compliant with standard IEC(61851/62955/62752) and UL 2231
Small volume and footprint for integration into compact IC-CPD
Protects against hazardous situations with fault currents, preserving RCCB type A from saturation
Robust mechanical and electrical design suitable for harsh environmental conditions
Product Dimension
Product PCB Board Installation Presentation
