Product parameters
Product Details
The 120A 3-phase latching relay (magnetic latching relay) is a low-power control device that performs excellently in high-current applications. Unlike traditional electromagnetic relays, it utilizes pulse drive, consuming energy only during the switching instant, and maintaining its state after switching through internal permanent magnet force, requiring no continuous power supply.

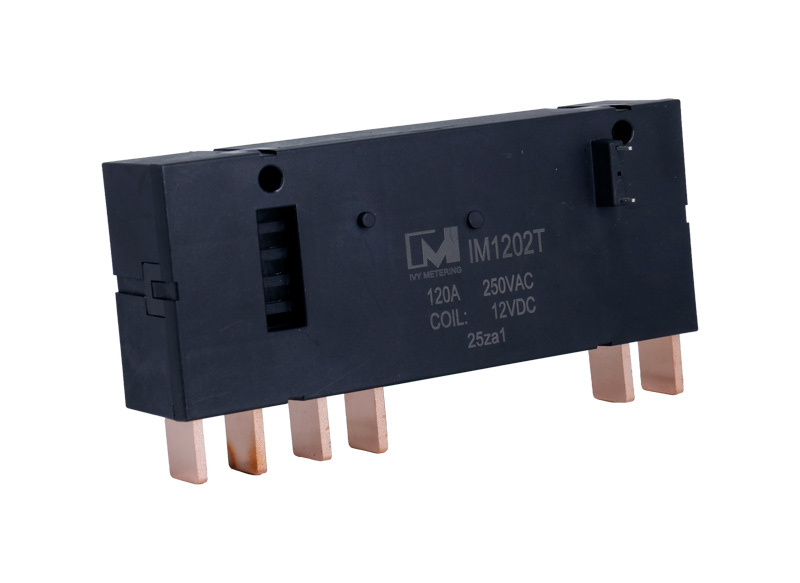

IM1202T 120A 3-phase Latching Relay
Three poles contact; three-way control.
Maximum switching current 120A, strong load capacity.
Low power consumption, pulse-driven.
Strong shock resistance, high reliability.
Meets IEC 62052-31:2020 UC2
Custom assemblies available with flex wire or copper straps, or with integrated shunt
Widely used in Energy Meter, Industrial Control, PDU, Control Panel, Lighting Control, and Smart Grid Systems.
Product Parameters
Rated Load 120A 250VAC
Contact Form 3A/3B
Rated Coil Consumption: 5.0/10.0W(30ms)
Dielectric Strength: 4kV
Compact Size:115*47*26mm
Contact Material: AgSnO2
Max. Switching Power: 30000VA
Contact Resistance: ≤1.0mΩ
Pick-up Time: 30ms
Release Time: 30ms
Electrical Endurance: 10000 Cycles
Mechanical Endurance: 100000 Cycles
Temp.Rise: ≦55k
Ambient Temperature: -40℃~85℃
Ambient Humidity: 45%~95%RH
