  • EM613005 Din Type DC Metering Device 48V Battery Monitor PV Off-Grid Solar Energy Meter with RS485

EM613005 Din Type DC Metering Device 48V Battery Monitor PV Off-Grid Solar Energy Meter with RS485

Share :
Product parameters

Product Details

1. There are 4 models of DC meter: 40-400V EM613001/ 5-1000V EM619001&EM619002/ 8-48V EM613005.

2. EM series DC energy meters are designed for measuring and monitoring DC systems.

3. The din rail DC energy meters can measure of important DC parameters: voltage, current, power, energy, etc. It also supports bi-directional measurement. All data in the meter are accessible via RS485 using Modbus RTU/DTL645.

4. The meter works with a DC power supply. Input voltage range up to 1000VDC, and current inputs are flexible with a DC shunt.

5. The multi-tariff version has an RTC equipped inside, it can provide multi-tariff information and monthly records.

6. EM series dc meter is suitable for DC energy metering of EV charging piles, battery, telecom tower, solar panels, and other devices with DC signals. It is also suitable for DC power distribution electricity systems of the mining industry, civil buildings, building automation systems, and so on.


EM613005 Din Type DC Metering Device 48V Battery Monitor PV Off-Grid Solar Energy Meter with RS485


Product Parameters

  • Reference voltage: DC8V-48V

  • Current: 10A-240A

  • Operation temp.: -20℃~+70℃

  • Accuracy class: Cl.1.0

  • Relative humidity: 95%

  • Communication: RS485 Communication

  • Communication protocol: DTL645/Modbus

  • Impulse constant: 1000 imp/kWh

  • LCD display: LCD 6+2

  • Power consumption: ≤0.4W,≤8VA


Features

  • Rate: Four Tariffs with 8 Time Slots

  • Alarm function: over-voltage, over-current alarm, threshold can be set.

  • Event record: The device itself stores the last 20 records when overvoltage, undervoltage, and overcurrent occur

  • Display: LCD displays DC power, current, voltage, tariff power, data wheel display (time interval 5S), you can also turn pages by pressing an external button.

  • Backlight: Press the page turning button to light up the backlight, which is convenient for viewing data when the light is insufficient

  • Communication: Supports RS485 communication with protocol DTL645, which allows parameters setting and read or write power data


EM613005 Din Type DC Metering Device 48V Battery Monitor PV Off-Grid Solar Energy Meter with RS485

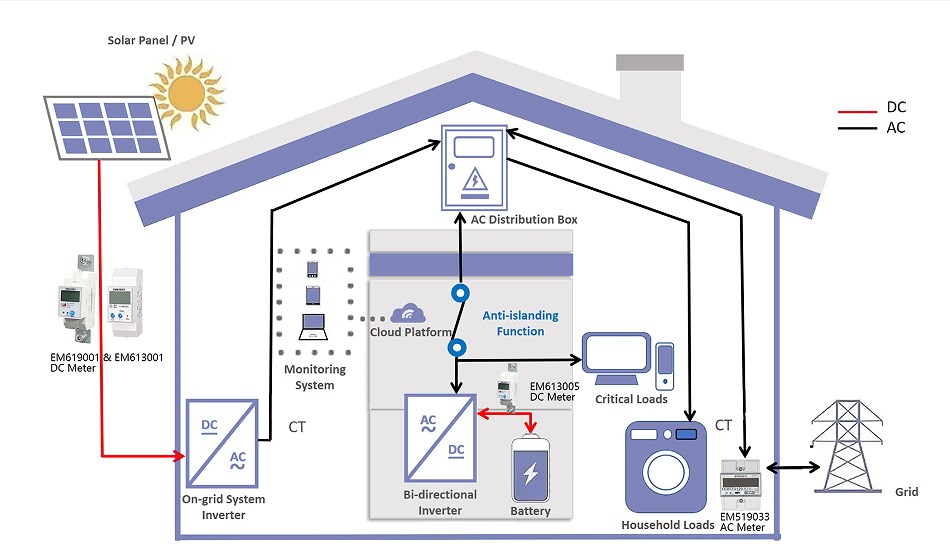

Application

  • New Energy Field- PV, Solar Power/EV charger

  • Telecommunication Based Station

  • Energy Management /Battery Storage System

  • Power Generation System
