AEC-21Y-G1 Introduction
IVY Metering has launched a Modular AC charging solution that comes with more functions to enhance user experience. The modular solution inside into EV Charger combines all of the control and monitoring functions essential for the charging process in one compact housing.

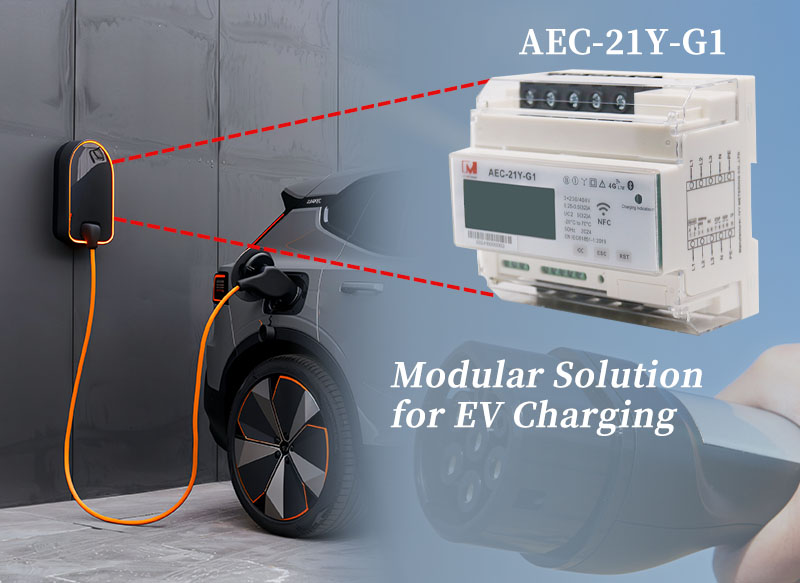

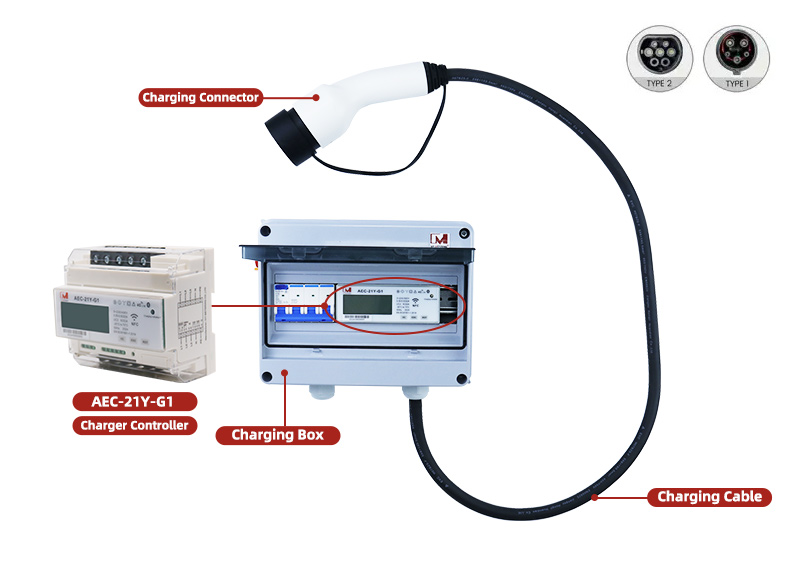

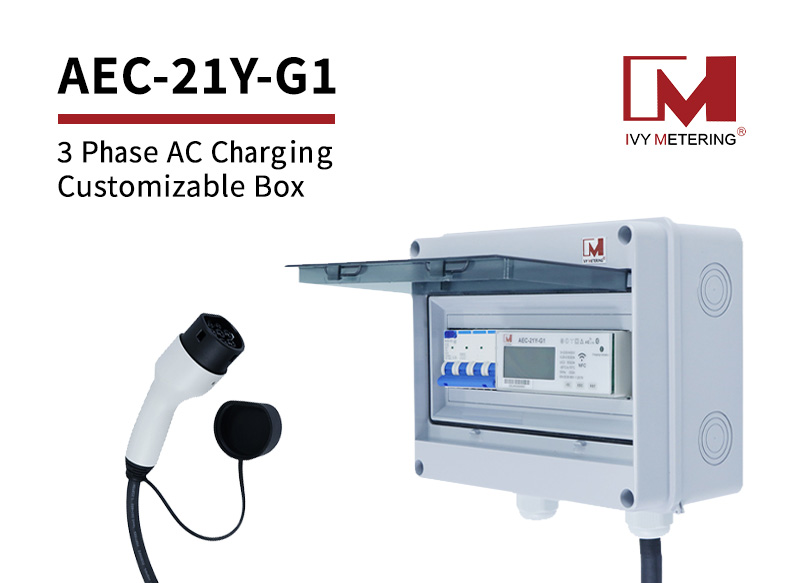

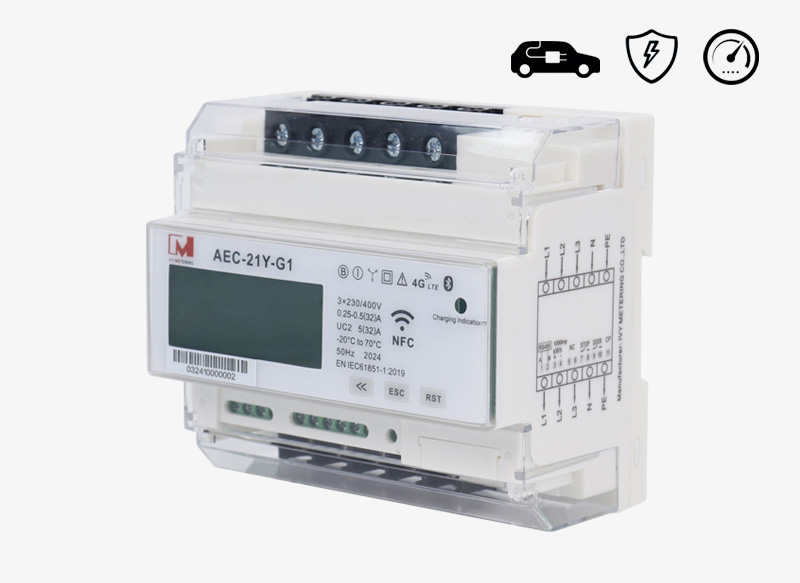

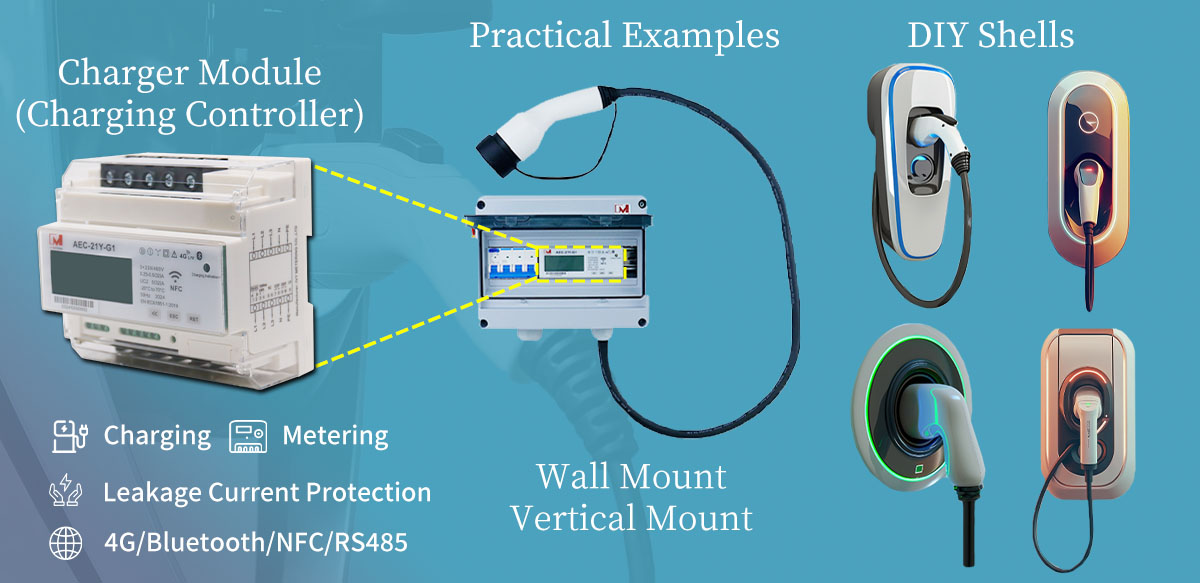

The AEC-21Y-G1 charging control unit can be integrated into OEM Electric Vehicle Supply Equipment (EVSE) for Mode 3 level 2 chargers, e.g. Charging Stations. AEC-21Y-G1 is an all-in-one AC EV charging module. Featuring 3.5~22kW, 5~32A single/three-phase charging, it integrates smart metering, leakage protection, and various communications (RS485/NFC/Bluetooth/4G, etc). With din-rail installation, versatile payment and authorization options, plus a compact, customizable design, it's a complete EV charging solution.
Product Features
• Complies with standard IEC61851-1 (mode 3 charging)
• Metering funtion
• Supports M-bus protocol, 4G, RS485 communication, OCPP-J-1.6/Wi-Fi/Ethernet pending

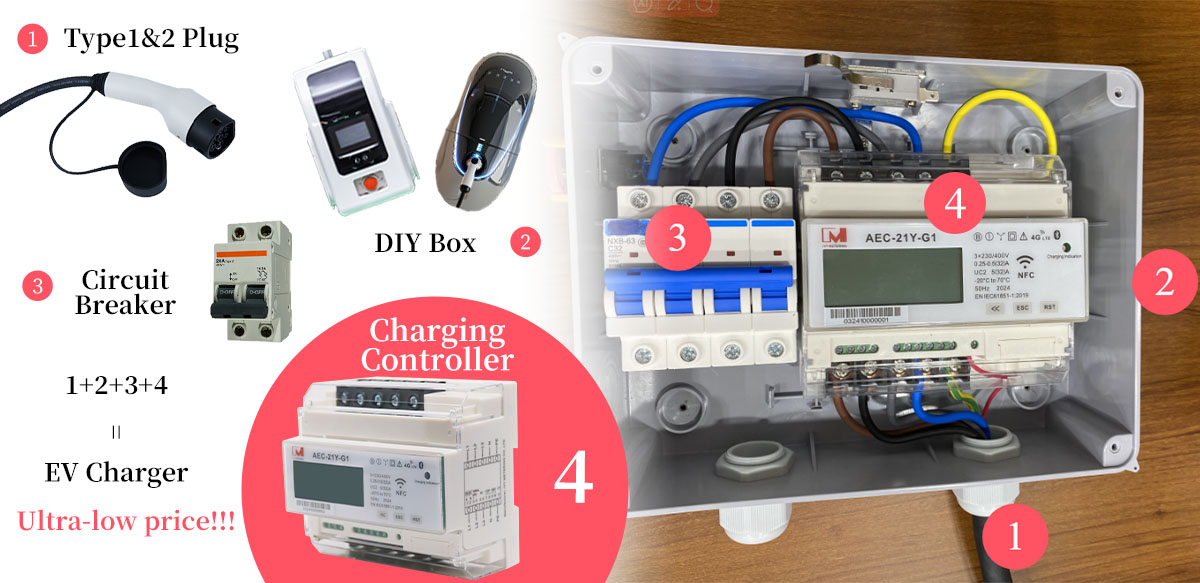

• Modular design, rail installation
• Adjustable charging current (maximum 32A)
• Status LED and LCD display
• RCMU detects 6mA or greater DC leakage current detection
• 14 Type safety protectoion, inclduing PEN fault protection, etc
Product Parameters
Charging & Metering Parameters | Charging Type | AC charging (three-phase & single-phase) |
Charging Mode | Mode3 | |
Charging Voltage | 3*230/400V±15%(three phase); 230V±10%(single phase); | |
Charging Current | Maximum 32A | |
Charging Power | Maximum 21KW | |
Pulse Constant | 1000imp/kWh | |
Frequency | 50/60Hz | |
Accuracy | Class 1.0 | |
Leakage Protection Parameters | AC leakage current threshold | 30mA |
DC leakage current threshold | 6mA | |
Communication Parameters | Communication | 4G |
Bluetooth4.0-5.0(2.4 GHz) | ||
NFC(For charging by swiping card) | ||
RS485(For parameter configuration, etc.) | ||
Communication Protocol | IVY-BUSprotocol(IVY Own agreement) | |
Other Parameters | Dimensions | 123.5*110*75mm |
Weight | 0.6kg | |
Operating Temperature | -25~70℃ | |
Storage Temperature | -40~80℃ | |
Humidity | average≤75%,maximum≤95% | |
Protection Level | Determined by the charging pile shell, the module itself IP30 | |
Applicable Charging Gun Type | Type 1 (SAE J1772);Type 2 (IEC 62196-2) |
