IM601 TUV 32A 60A 250VAC Coil 12VDC Bistable Switch PCB Power Latching Relay for EV Charger

Share :
Product parameters

Product Introduction

IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of latching relays spanning from 32A to 200A for single-phase Two-phase and three-phase switching purposes. our relays meet the industry's highest performance standards and offer the best value in the energy management market. IVY latching relays are highly customisable with many variants of terminal arrangements, which can be made to suit customer's needs. Shunts and current transformers can also be included to special order.

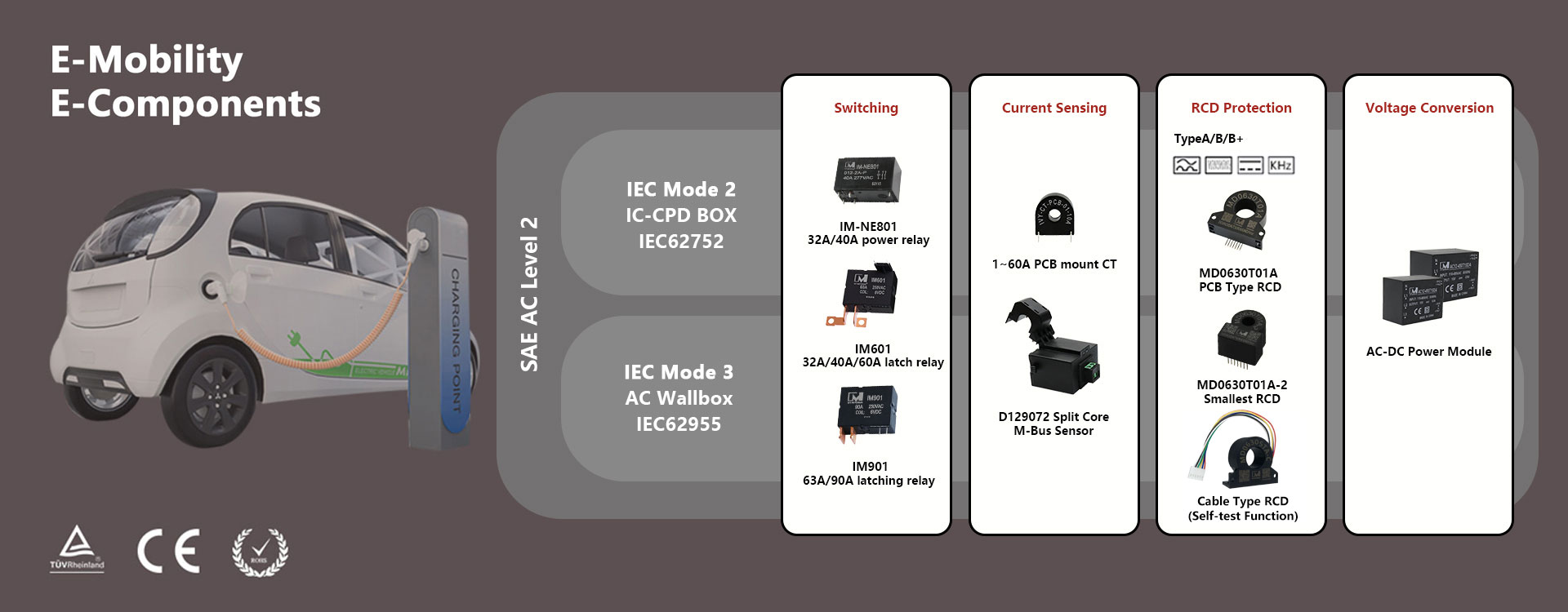

AC switching elements are a crucial part of safety and protection function in charging stations and cables. Key parts of the IVY line-up are the 40A IM-NE801A 2 pole power relay and 60A IM601 bistable relay. Both types are availabe with a mirror contact according to IEC 60947-1 and VDE / TUV/UL approvals. They can be used in the latest generation of wallboxes which fulfill either IEC 61851-1 or the recent IEC 62955 norm.


IM601 TUV 32A 60A 250VAC Coil 12VDC Bistable Switch PCB Power Latching Relay for EV Charger


IM601 60A Bistable Latching Relay (32A/40A Optional)

Switching Capacity: 60A, 250VAC; Single/Dual Coil Optional

Coil Voltage:6~48VDC; Long Electrical Endurance

4kV dielectric strength between coil and contacts

Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt

RoHS compliant materials and process

IEC62055-31 UC2 Certified


Application Scenarios



1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation equipment, etc.

4) New Energy Field: EV charger, PV Inverter


Product Parameters

  • Rated Load: 60A 250VAC

  • Contact Form: 1A/B

  • Contact Material: AgSnO2

  • Max. Switching Voltage: 250VAC

  • Max. Switching Current: 60A

  • Max. Switching Power: 15000VA

  • Contact Resistance: <1.5mΩ

  • Pick-up Time: 20ms

  • Release Time: 20ms

  • Electrical Endurance: 10000 Cycles

  • Mechanical Endurance: 100000 Cycles

  • Temp.Rise: ≤55K When Ambient 40℃
