Small size, space-saving.
Integrates multiple functions such as metering, charging, leakage protection, etc.

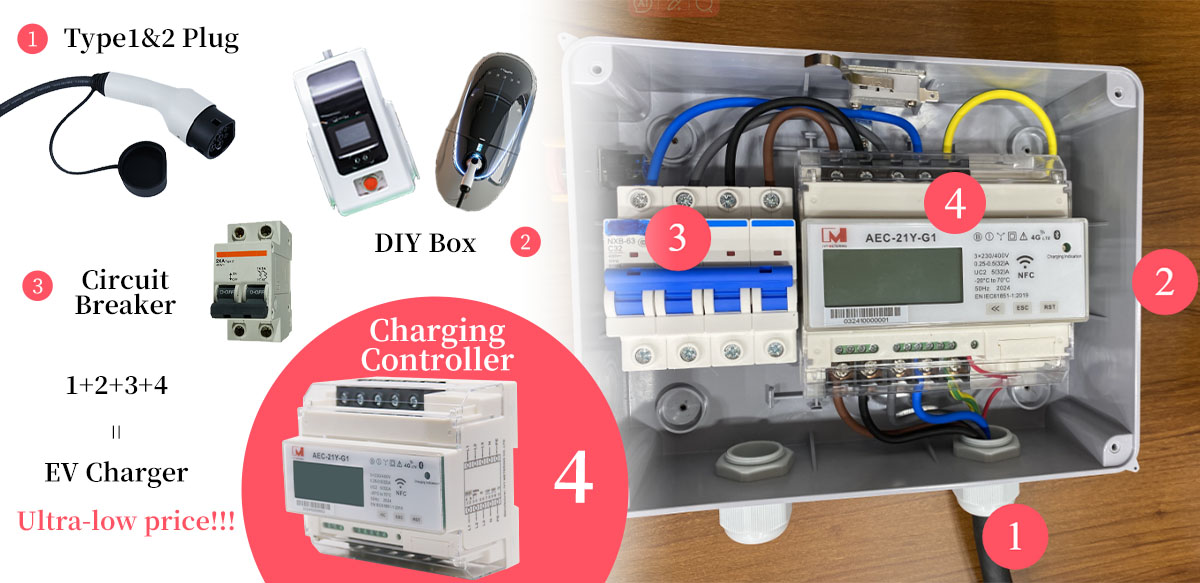

More cost-effective, only needs to be matched with a circuit breaker to achieve complete charging pile functions
Product parameters

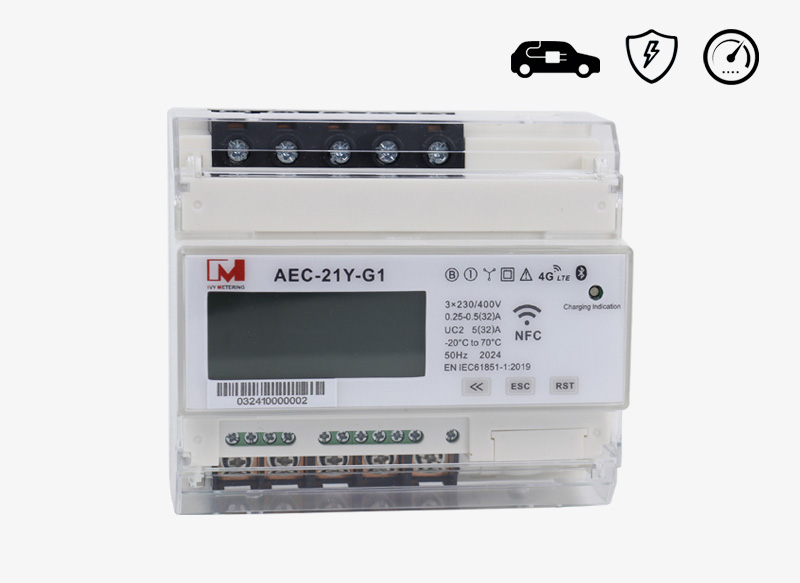

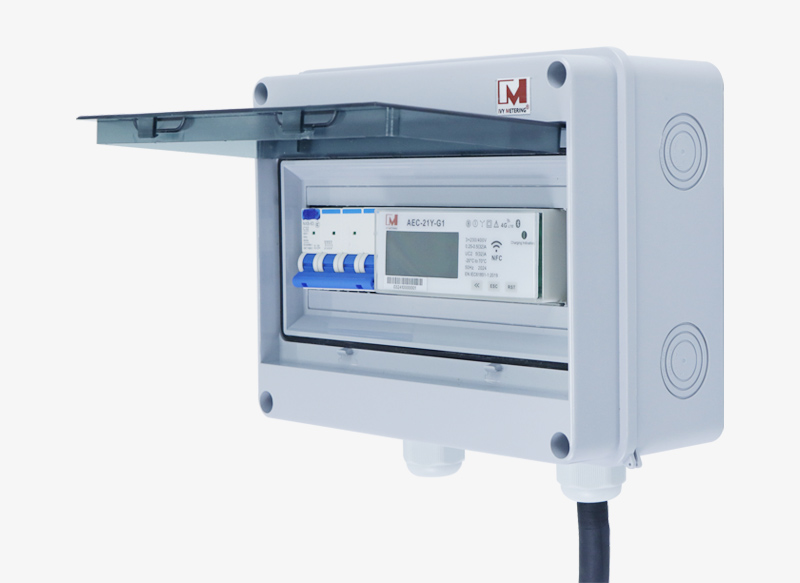

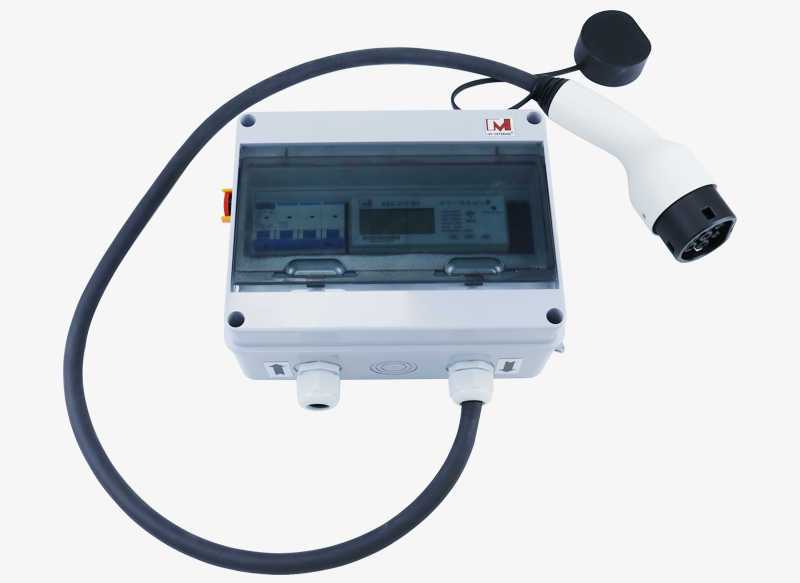

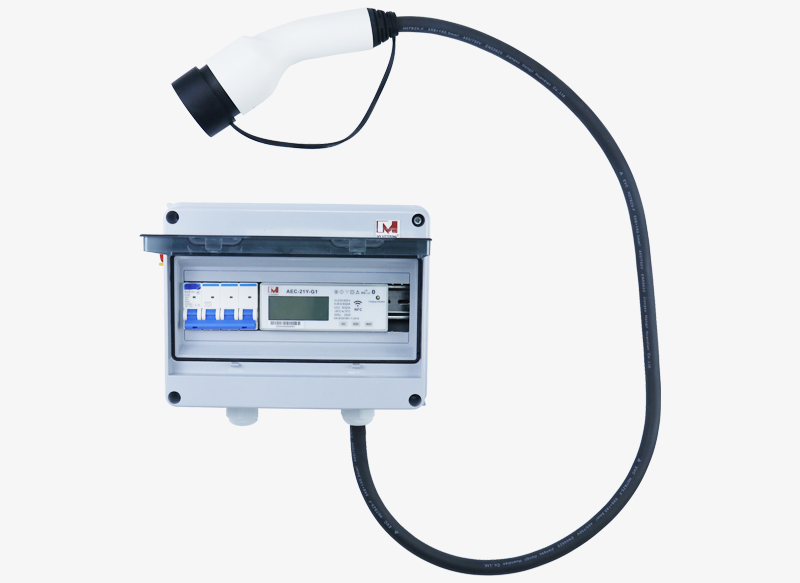

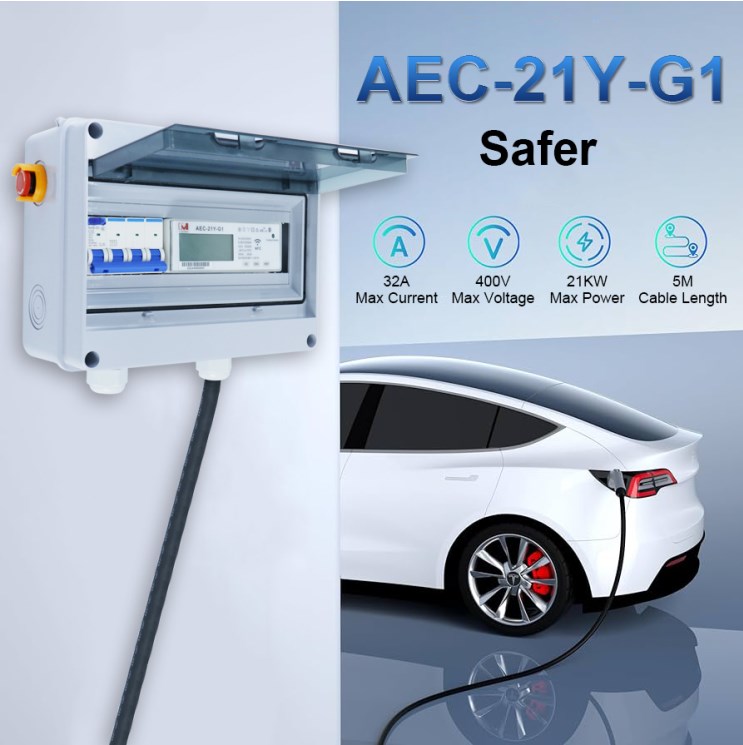

AEC-21Y-G1 Introduction

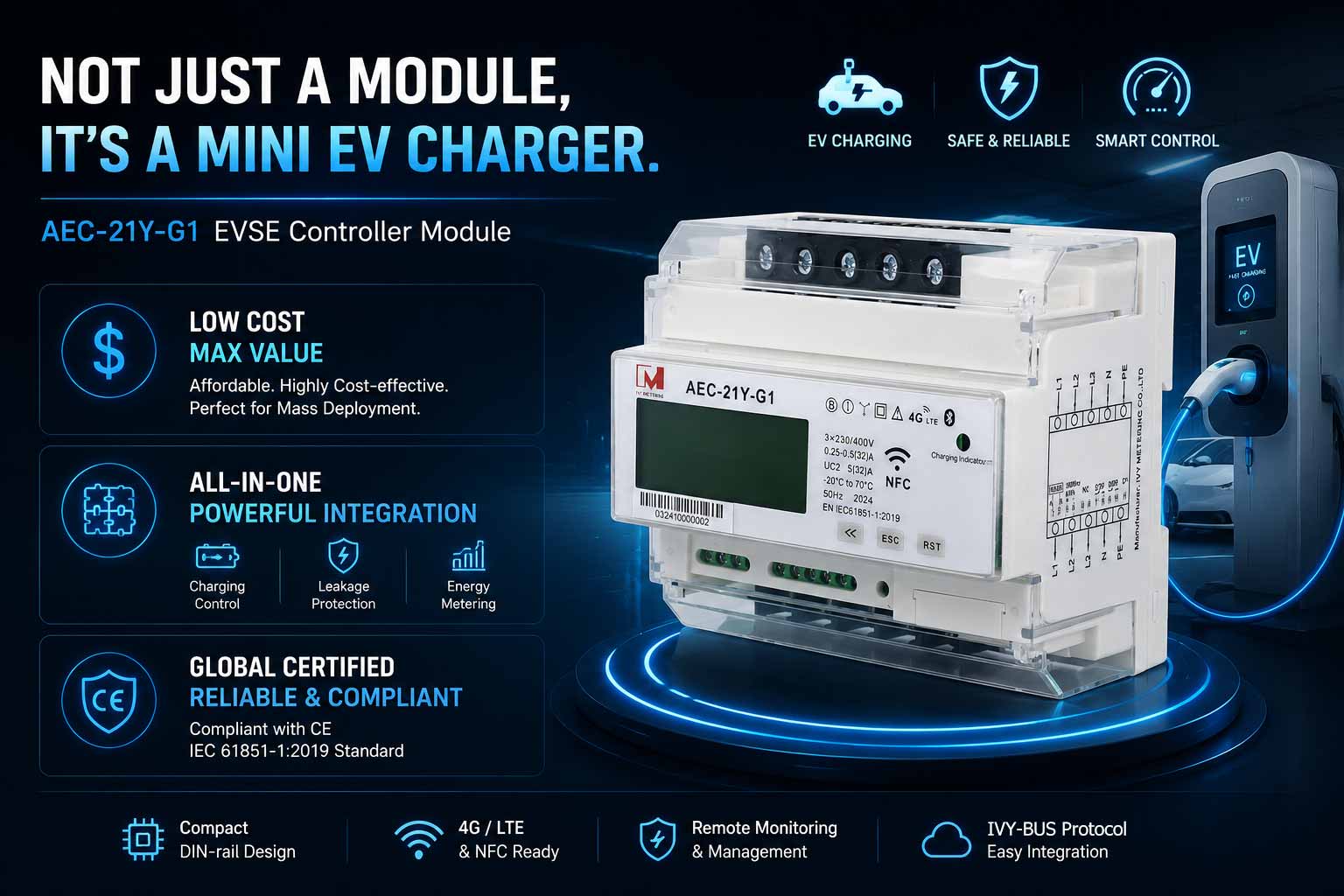

Not just a charging module, but also a smart ev charger. Comply with IEC 61851-1, CE-EMC&LVD, MID Compliant. AEC-21Y-G1 is a DIN rail mounted control module for IEC 61851 compatible EV charge points.
Key functions include charging control, energy monitoring, and leakage protection etc, helping charge station manufacturers and installers meet regulations in a cost-effective way and protect against electric shock in the unlikely event of an earth fault problem.
It is an intelligent and efficient, all-round charging solution:
Product Parameters
Charging & Metering Parameters | Charging Type | AC charging (three-phase & single-phase) |
Charging Mode | Mode3 | |
Charging Voltage | 3*230/400V±15%（three phase）； 230V±10%（single phase）； | |
Charging Current | Maximum 32A | |
Charging Power | Maximum 21KW | |
Pulse Constant | 1000imp/kWh | |
Frequency | 50/60Hz | |
Accuracy | Class 1.0 | |
Leakage Protection Parameters | AC leakage current threshold | 30mA |
DC leakage current threshold | 6mA | |
Communication Parameters | Communication | 4G |
Bluetooth4.0-5.0（2.4 GHz） | ||
NFC（For charging by swiping card） | ||
RS485（For parameter configuration, etc.） | ||
Communication Protocol | IVY-BUSprotocol（IVY Own agreement） | |
Other Parameters | Dimensions | 123.5*110*75mm |
Weight | 0.6kg | |
Operating Temperature | -25～70℃ | |
Storage Temperature | -40～80℃ | |
Humidity | average≤75%，maximum≤95% | |
Protection Level | Determined by the charging pile shell, the module itself IP30 | |
Applicable Charging Gun Type | Type 1 (SAE J1772)；Type 2 (IEC 62196-2) |

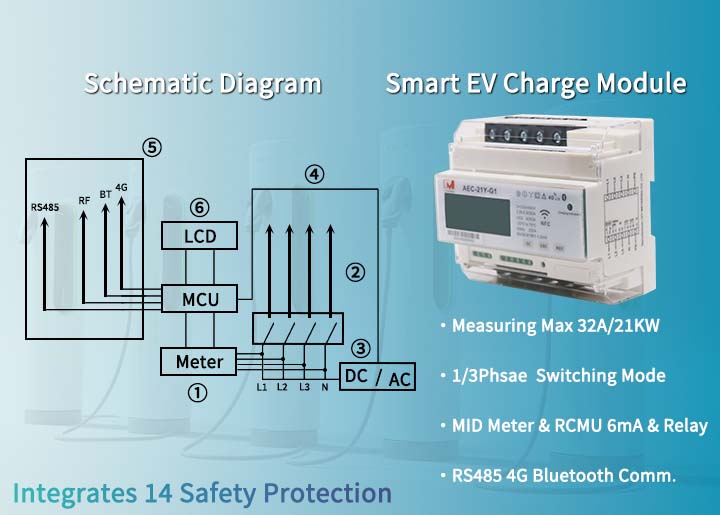

2. Core functions and technical highlights
Efficient charging capability: adopts three-phase charging design, with a maximum charging current of 32A and a maximum power of 21kW. It supports free switching between single-phase and three-phase modes.
Smart communication and management: supports RS485 local communication and 4G remote communication to achieve real-time monitoring and remote operation and maintenance of equipment; provides local dedicated/batch authorization mode, flexibly adapts to public or private scene management requirements, and can create an APP platform for service management.
Multi-payment compatibility: integrates card payment, mobile payment and prepaid functions to simplify user operation processes and improve the convenience of charging services.

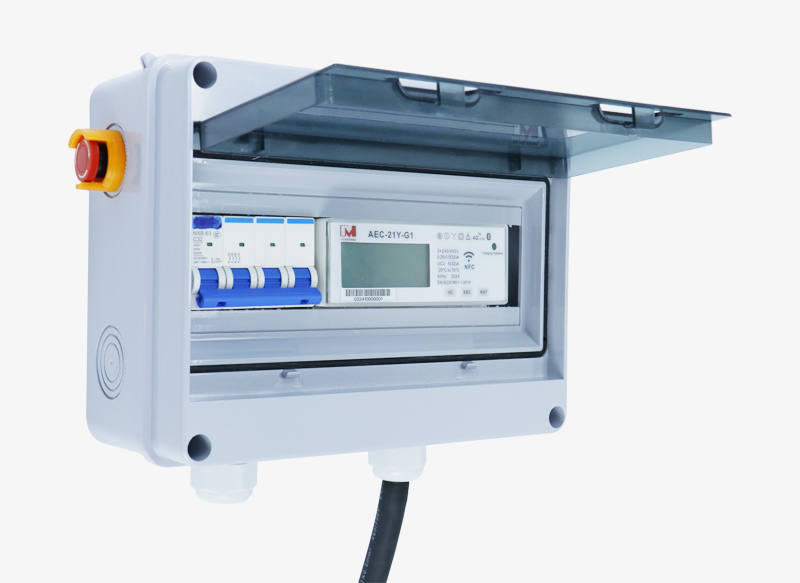

Compact design and flexible expansion: din rail installation, small size, and space saving; customers can carry out diversified shell designs and freely match the appearance of various charging piles.
3. Widely adaptable, full-scenario coverage
AEC-21Y-G1 is suitable for home garages, commercial parking lots, community charging stations, long-term rental operations and other scenarios, and is perfectly compatible with all kinds of new energy electric vehicles.
