1.There are 4 models of DC meter: EM613001/EM613002/EM619001/EM613005. It's worth to highlight that RS485 & NB-IOT communication are optional.
2.EM series DC energy meters are designed for measuring and monitoring in DC systems.
3.The din rail DC energy meters can measure of important DC parameters: Voltage, current, power and energy etc. It also support bi-directional measurement. All data in the meter are accessible via RS485 using Modbus RTU/DTL645.
4.The meter working with DC power supply. Input voltage range up to 1000VDC, and current inputs are flexible with DC shunt.
5.The multi-tariff version has a RTC equipped inside, it can provides multi-tariff information and monthly records.
6.EM series dc meter is designed for scenarios such as DC panel, battery storage system, solar PV system, charging pile and telecom base stations.

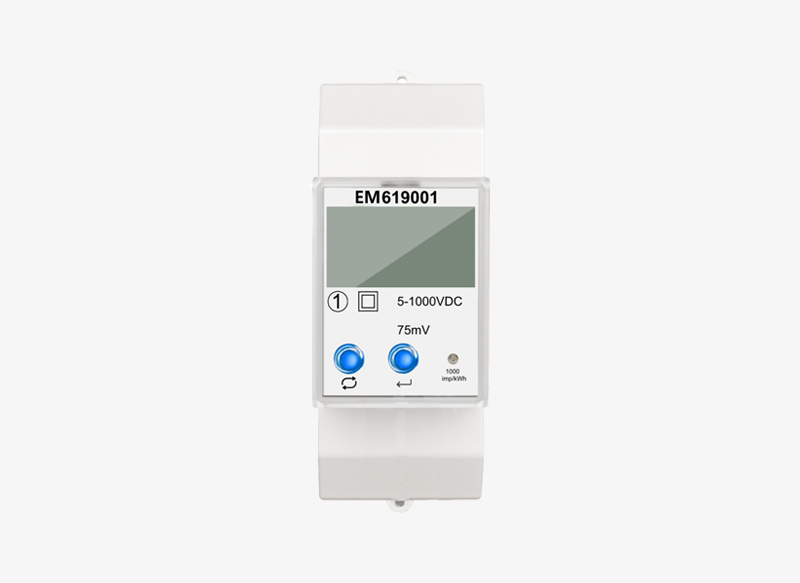

EM619001 is used to monitor and control DC system. They also support limit alarm, analog output, digital input, relay output and communication functions. It has the function of energy metering, data processing, real time monitoring and LCD display. It has the advantage of high overload, high accuracy, low power consumption, automatic data save after power failure, long service life and so on.
The meter can have relay alarm output and digital input function; You can set the ratio, alarm, and communication through the meter panel keys according to different requirements. The meter can have event recording of switch (Modbus protocol), programming and event setting records(645 protocol), instantaneous and timing freeze function of data (645 protocol), maximum and minimum value recording function of voltage and current power.
EM Series DC Meter Advantages
Din Rail Mount; Shunt Sampling; Class 1
Measuring Current up to 2000A
Voltage Input DC5~1000V; Current Input 75mV(max)
RS485 Communication with DTL645/Modbus Protocol
Over-current/Over-voltage/Over-load Alarm
Bi-directional Measurement; Net metering for Renewable systems
LCD Backlight; Multi-tariffs(RTC), Monthly Records
Product Parameters
Reference voltage: DC5V-1000V
Current: Measuring up to 2000A
Current input: 75mV(max)
Operation temp.: -25℃~+70℃
Accuracy class: Cl.1.0
Relative humidity: 95%
Communication: RS485 Communication
Communication protocol: DTL645/Modbus
Impulse constant: 1000 imp/kWh
LCD display: LCD 6+2
Power consumption: ≤0.4W,≤8VA
Features
Rate: Four Tariffs with 8 Time Slots
Alarm function: over-voltage, over-current alarm, threshold can be set.
Event record: The device itself stores the last 20 records when overvoltage, undervoltage, and overcurrent occur
Display: LCD displays DC power, current, voltage, tariff power, data wheel display (time interval 5S), you can also turn pages by pressing an external button.
Backlight: Press the page turning button to light up the backlight, which is convenient for viewing data when the light is insufficient
Communication: Supports RS485 communication with protocol DTL645, which allows parameters setting and read or write power data
Application
New Energy Field- PV, Solar Power/EV charger
Telecommunication Based Station
Energy Management /Battery Storage System
Power Generation System
