Product parameters
AEC-21Y-G1 Introduction

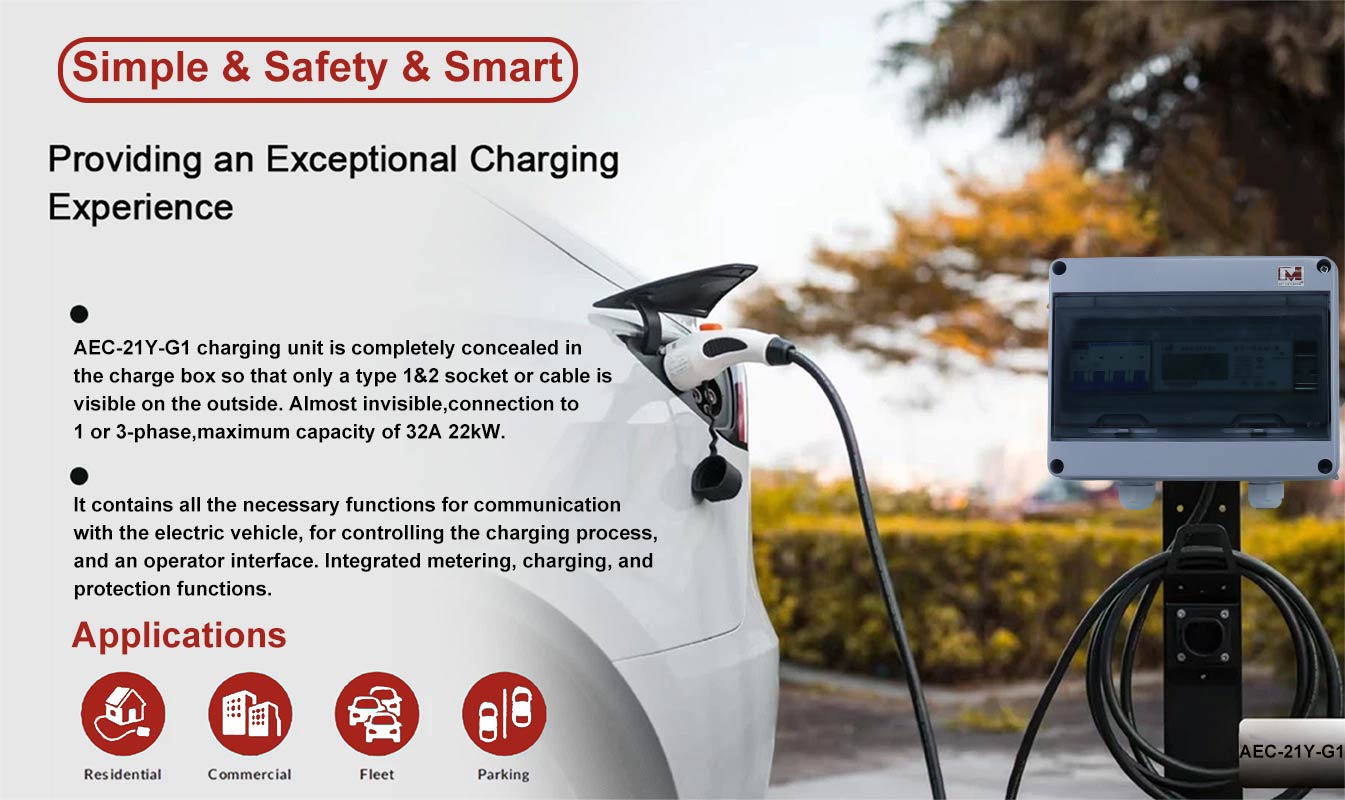

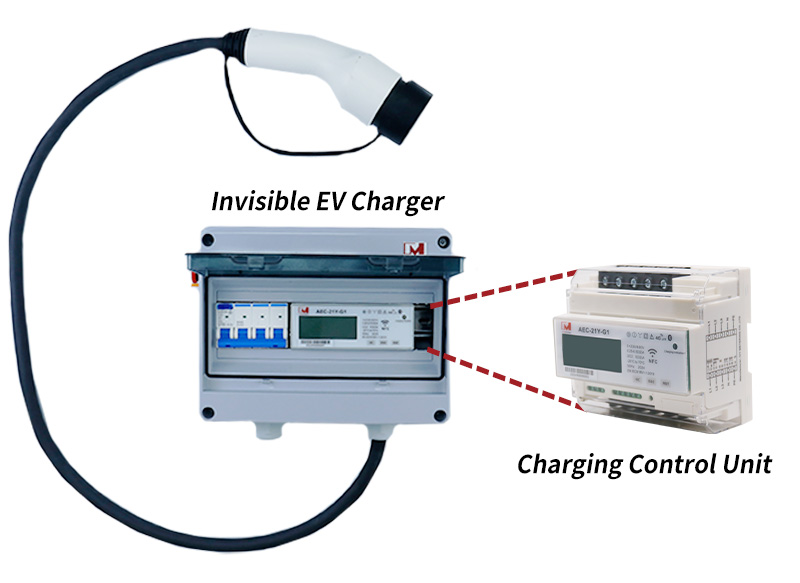

Don't want an ugly charging station on the wall but still want to charge your electric car safely? Then the IVY Invisible AEC-21Y-G1 charging module is the perfect charging station for you. The charging unit is completely concealed in the meter box so that only a type 1&2 socket or cable is visible on the outside. Almost invisible; Connection to 1 or 3-phase, maximum capacity of 22kW; Suitable for any meter box; Can be installed with a socket or charging cable.
AEC-21Y-G1 charging controller is designed for use in AC charging stations for electric vehicles in accordance with DIN EN 61851-1 charging mode 3.
It contains all the necessary functions for communication with the electric vehicle, for controlling the charging process and an operator interface. The integrated functions are diverse and enable the controlled charging of electric vehicles in accordance with RS485, 4G. This is particularly advantageous for use in charging facilities in private and semi-public environments.

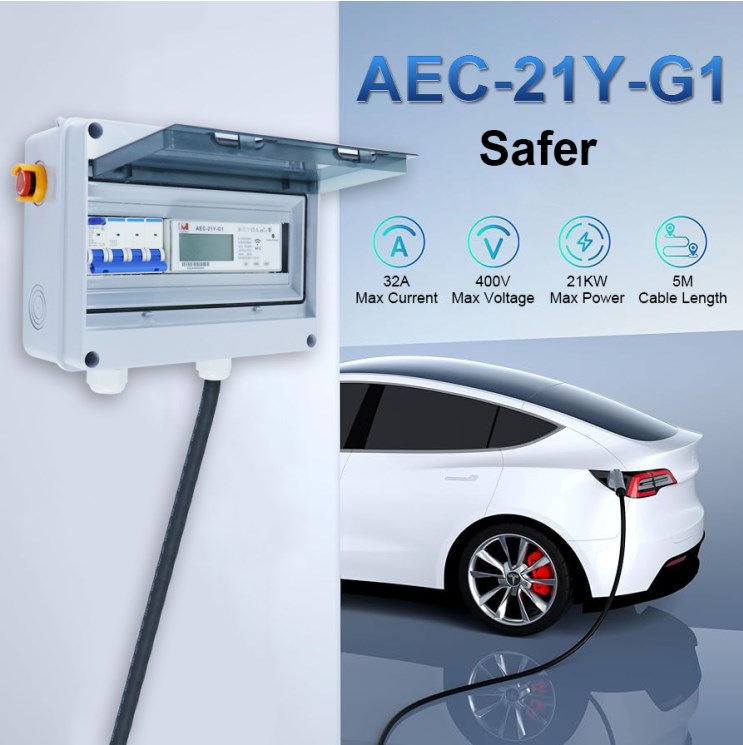

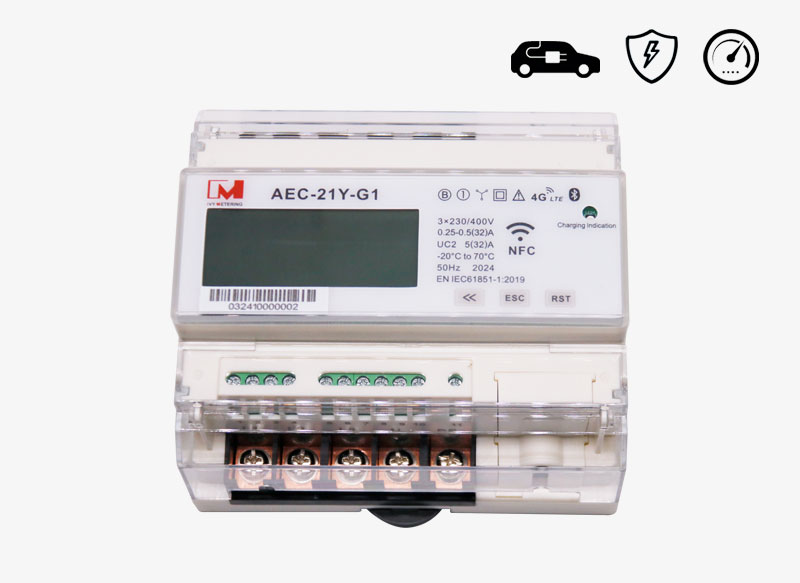

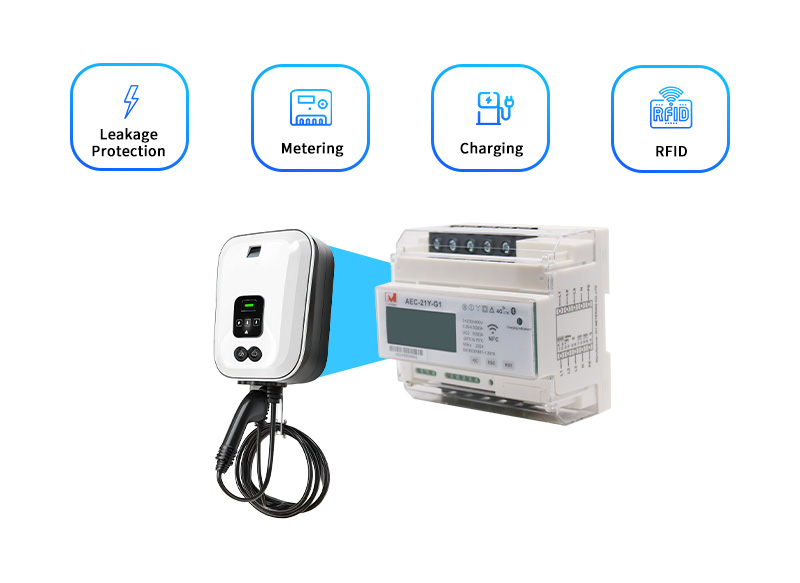

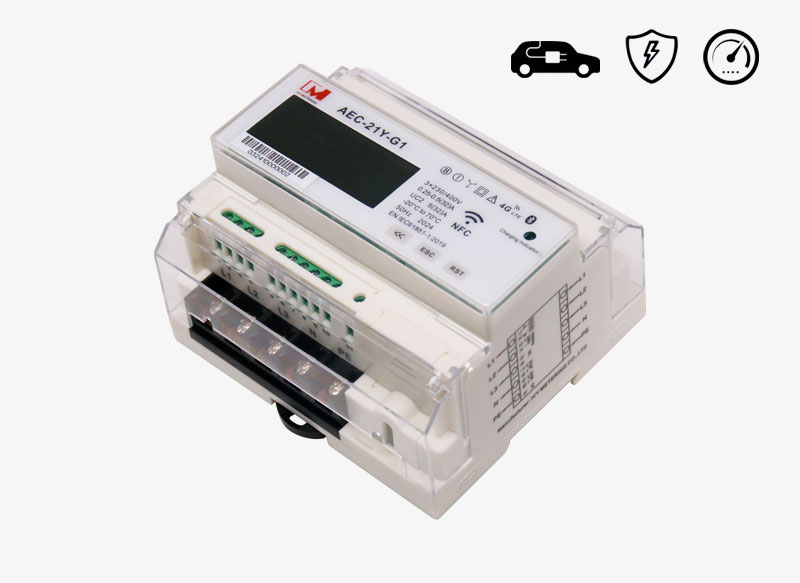

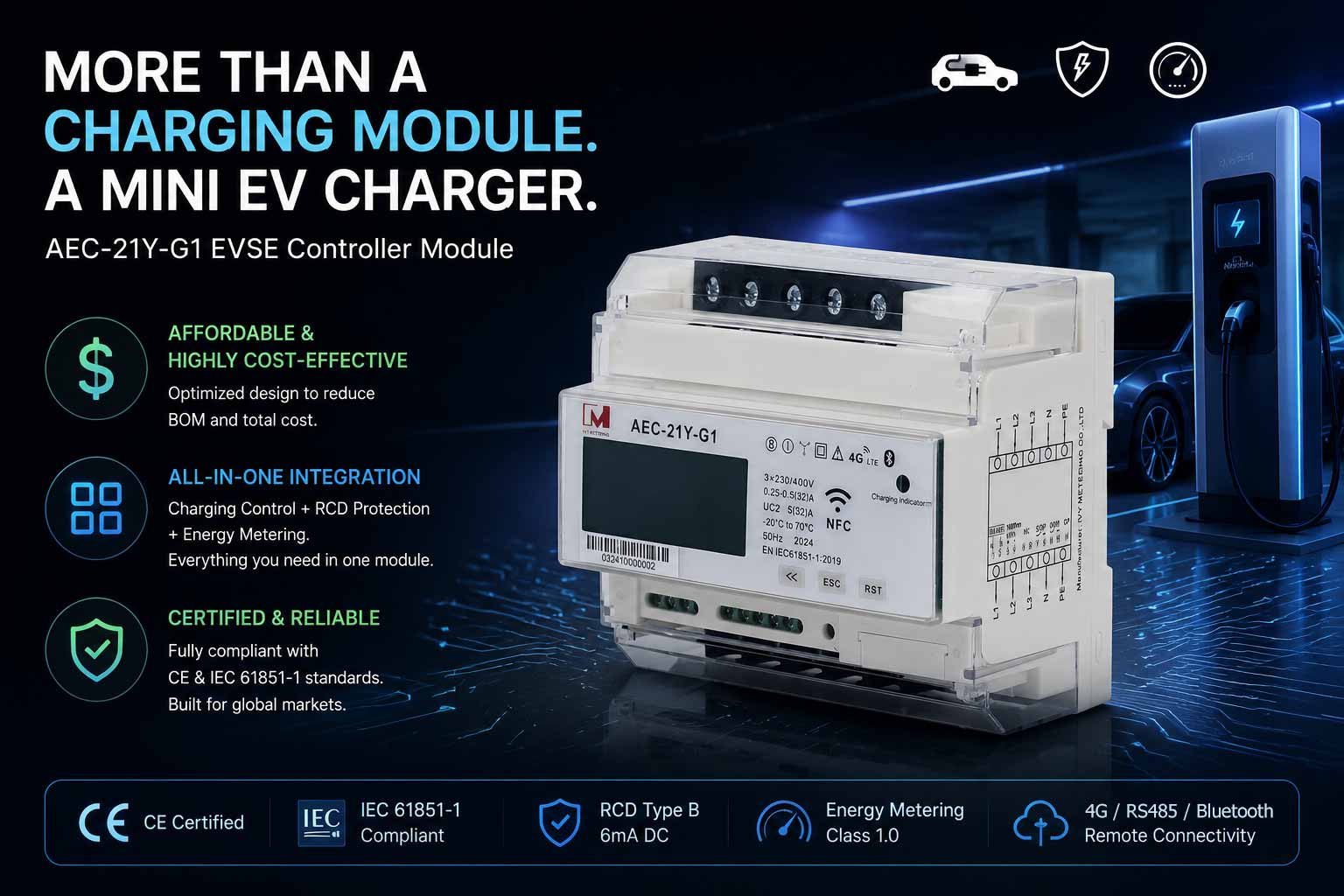

AEC-21Y-G1 Charging Control Unit (Power Supply Equipment Communication Controller) is a multi-function controller that can quickly realize intelligent charging piles. The controller can support single-phase and three-phase charging switching. They are ideal for commercial chargers, compact single charging piles, and wall-mounted charging boxes.
Product Parameters
Charging & Metering Parameters | Charging Type | AC charging (three-phase & single-phase) |
Charging Mode | Mode3 | |
Charging Voltage | 3*230/400V±15%（three phase）； 230V±10%（single phase）； | |
Charging Current | Maximum 32A | |
Charging Power | Maximum 21KW | |
Pulse Constant | 1000imp/kWh | |
Frequency | 50/60Hz | |
Accuracy | Class 1.0 | |
Leakage Protection Parameters | AC leakage current threshold | 30mA |
DC leakage current threshold | 6mA | |
Communication Parameters | Communication | 4G |
Bluetooth4.0-5.0（2.4 GHz） | ||
NFC（For charging by swiping card） | ||
RS485（For parameter configuration, etc.） | ||
Communication Protocol | IVY-BUSprotocol（IVY Own agreement） | |
Other Parameters | Dimensions | 123.5*110*75mm |
Weight | 0.6kg | |
Operating Temperature | -25～70℃ | |
Storage Temperature | -40～80℃ | |
Humidity | average≤75%，maximum≤95% | |
Protection Level | Determined by the charging pile shell, the module itself IP30 | |
Applicable Charging Gun Type | Type 1 (SAE J1772)；Type 2 (IEC 62196-2) |

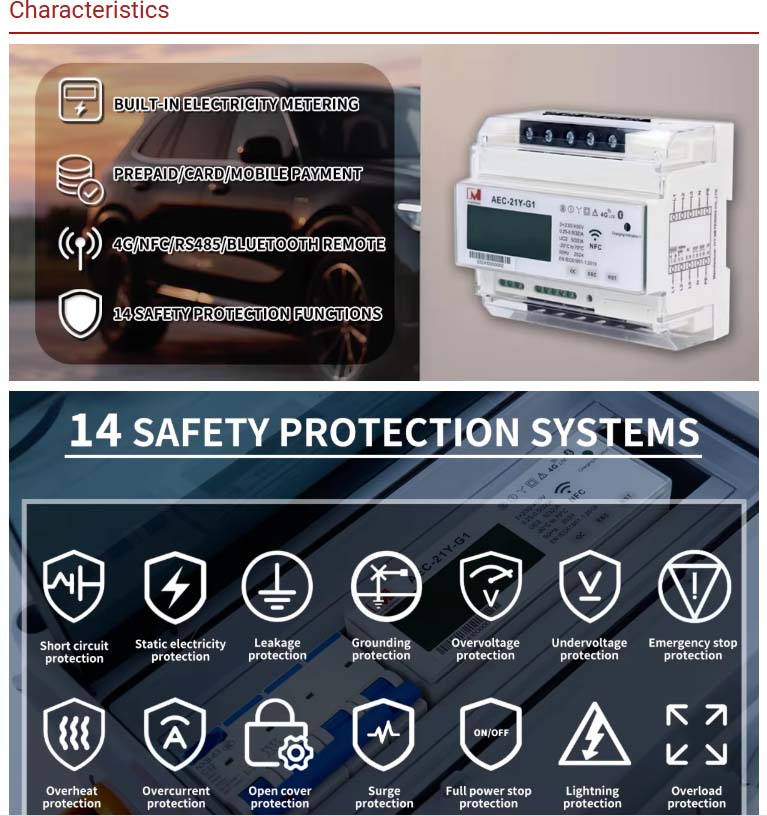

Product Function
Safety protection function:
leakage protection, grounding protection, short circuit protection, overload protection, overcurrent protection, overvoltage protection, undervoltage protection, surge protection, etc.
Metering function: built-in power metering, real-time reading of power, real-time upload
Payment function: card payment/mobile payment/prepaid payment, etc.
Communication function:
1.Remote communication function: with 4G remote communication, can achieve control, authorization, payment, setting and other functions
2.Convenient card swiping function: using NFC card reading method, can pay, can authorize charging.
3.Parameter setting function: use RS485 and Bluetooth to set parameters
Display function:LCD display: can display many parameters; Charging status indication; Page view function
