Product parameters
Product Details
1.There are 4 models of DC meter:EM613001/EM613002/EM619001/EM613005. It's worth to highlight that RS485 & NB-IOT communication are optional.
2.EM series DC energy meters are designed for measuring and monitoring in DC systems.
3.The din rail DC energy meters can measure of important DC parameters: Voltage, current, power and energy etc. It also support bi-directional measurement. All data in the meter are accessible via RS485 using Modbus RTU/DTL645.
4.The meter working with DC power supply. Input voltage range up to 1000VDC, and current inputs are flexible with DC shunt.
5.The multi-tariff version has a RTC equipped inside, it can provides multi-tariff information and monthly records.

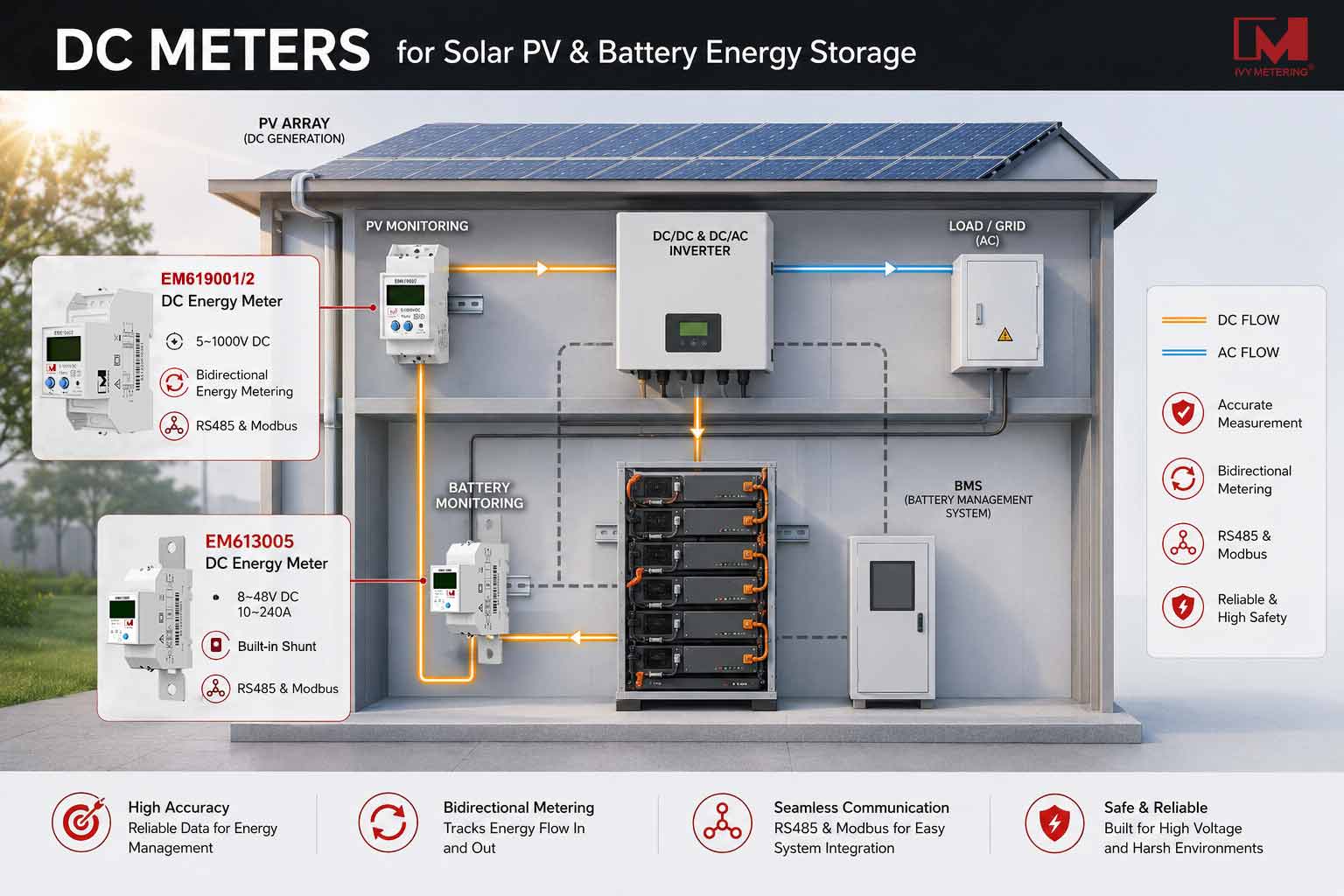

6.EM series dc meter is designed for scenarios such as DC panel, battery storage system, solar PV, EV charger and telecom base stations.
Solar PV panels are a growing source of renewable energy which involves DC electricity production. The need to monitor these systems, providing accurate energy measurement before conversion to AC is crucial for reflecting true efficiency and conversion losses. The DC charging station has an integrated converter that transforms the alternating current from the mains into direct current. This allows the electricity to be fed directly into the vehicle's battery.
Product Parameters
Reference voltage: DC40V-400V
Current: 10~240A
Operation temp.: -20℃~+70℃
Accuracy class: Cl.1.0
Average humidity: 75%
Relative humidity: 95%
Communication: RS485 Communication
Communication protocol: DTL645
Impulse constant: 100 imp/kWh
LCD display: LCD 6+2
Power consumption: ≤0.4W,≤8VA
Standard compliant: GB/T 17708-2017 Static DC Energy Meter
Features
Rate: Four Tariffs with 8 Time Slots
Alarm function: over-voltage, over-current alarm, threshold can be set.
Event record: The device itself stores the last 20 records when overvoltage, undervoltage, and overcurrent occur
Display: LCD displays DC power, current, voltage, tariff power, data wheel display (time interval 5S), you can also turn pages by pressing an external button.
Backlight: Press the page turning button to light up the backlight, which is convenient for viewing data when the light is insufficient
Communication: Supports RS485 communication with protocol DTL645, which allows parameters setting and read or write power data
Application
New Energy Field- PV, Solar Power/EV charger
Telecommunication Based Station
Energy Management /Battery Storage System
Power Generation System
