IM-M1202 100A 250VAC Coil 12VDC Magnetic Immune 500mT Bistable Latching Switch Small Motor Relay

Share :
Product parameters

IVY Latching Relay

IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of latching relays spanning from 32A to 200A for single-phase Two-phase and three-phase switching purposes. our relays meet the industry's highest performance standards and offer the best value in the energy management market. In particular, we have developed an innovative relay switch-motor latching relay. IVY latching relays are highly customisable with many variants of terminal arrangements, which can be made to suit customer's needs. Shunts and current transformers can also be included to special order. Compared with magnetic latching relay, motor latching relay with 500mT permanent magnetic immunity, prevent contacts from being interfered by magnetic fields. And, the size is much smaller.


IM-M1202 100A Motor Latching Relay

Meet the requirements of anti-frequency magnetic field and magnetic interference in the national network.

According to RoHS requirements

Large switching power with mini body

Drived by motor with high magnetic resistant capability.

Strong anti-shock and anti-vibration capability.

Permanent magnetic strength to keep stability, and save power consumption

Small contact resistance ,and little self-consumption with reliable working

Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt

IEC62055-31 UC3 Certified with Appearance Patent

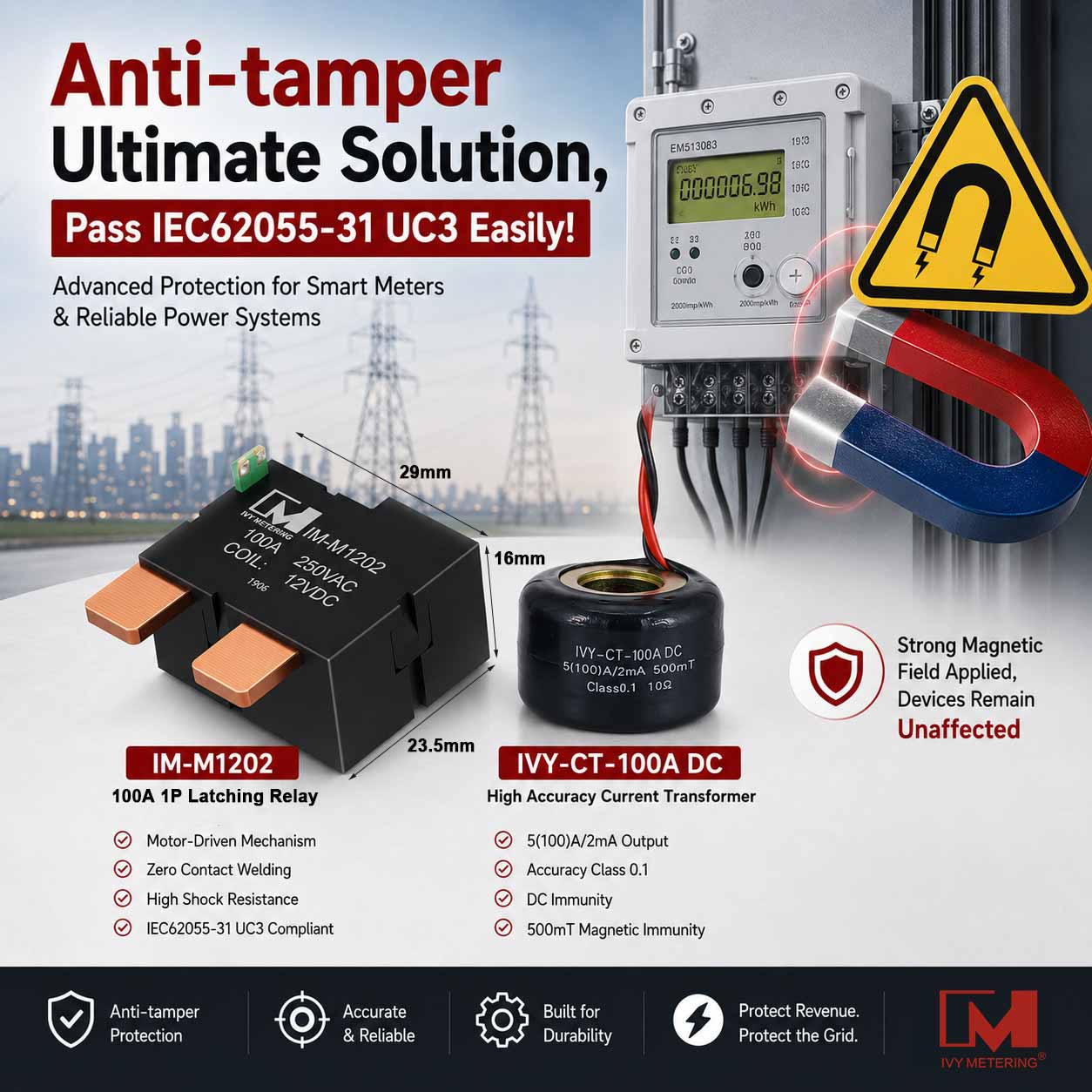

IM-M1202 Meter Components 100A 250VAC High Sensitivity Small Motor Latching Relay for Smart Grid


Application Scenarios

1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation equipment, etc.


Product Parameter

Basic DataDimensions(mm)29×23.5×16
Weight ( g )≈40g
Contact Arrangement1A/1B
Contact MaterialAgSnO2
Ambient Temperature-40~+75ºC
Vibration10~50Hz,1.5mm
Shock1000m/s²,(100g)
Specifications DataPower Consumption<3W
Operating Voltage10.5-16V
Max. Switching Current100A
Surge Current6000A/10ms
Motor Resistance32(1±15%)Ω
Contact Voltage<60mV
Contact Resistance≤1.0
Dielectric StrengthMotor to Contact>4000VAC,50/60Hz 1min
Across Open Contact>2000VAC,50/60Hz 1min
Electrical Life(120 cycles/H)10,000
(resistance 5 k + perceptual 5 k, co ϕ = 0.5)
Mechanical Life(3600 cycles/H)100,000
Pulse Time60ms(Advise 60ms~100ms)
Picking-up Time≤60ms
Release Time≤60ms
Insulation Resistance>1000MΩ(500VDC)
