Three-phase latching relays are primarily used in applications where a sustained change of state is needed with minimal continuous power consumption, such as in energy meters, smart grids, and industrial control systems. They are also valuable in applications requiring energy efficiency, IOT devices, and automated control systems.

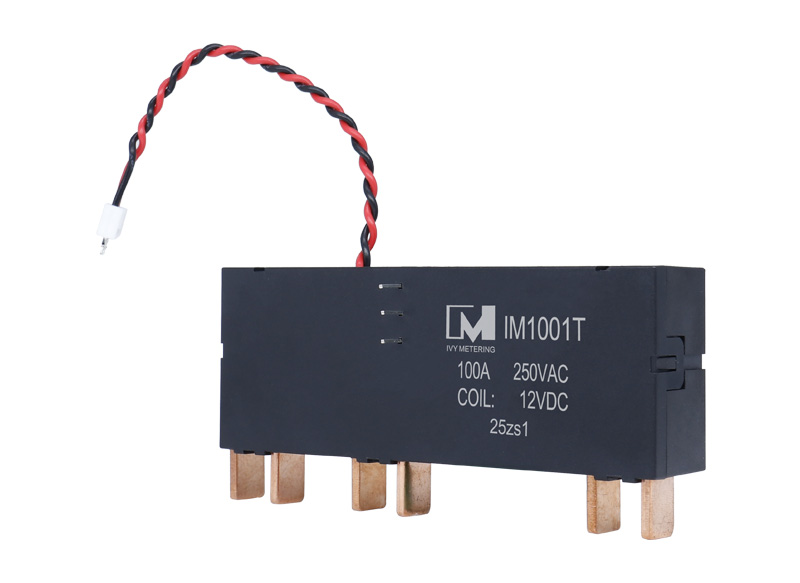

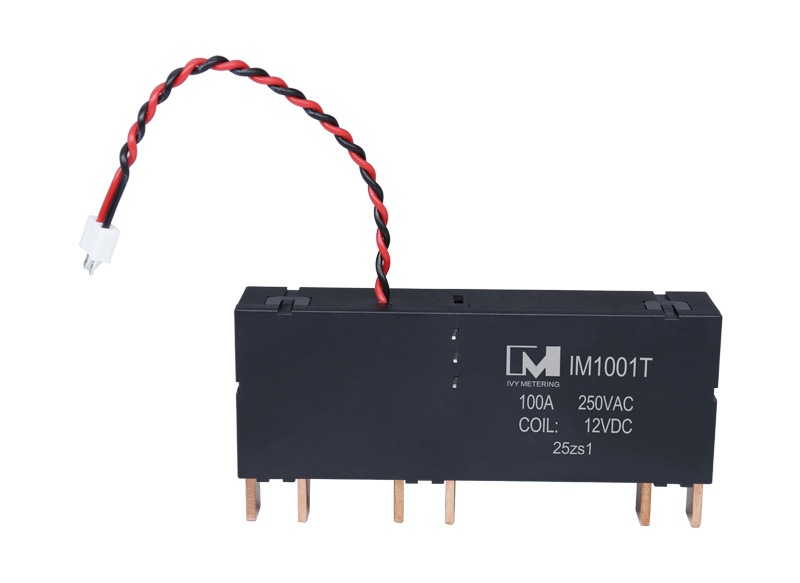

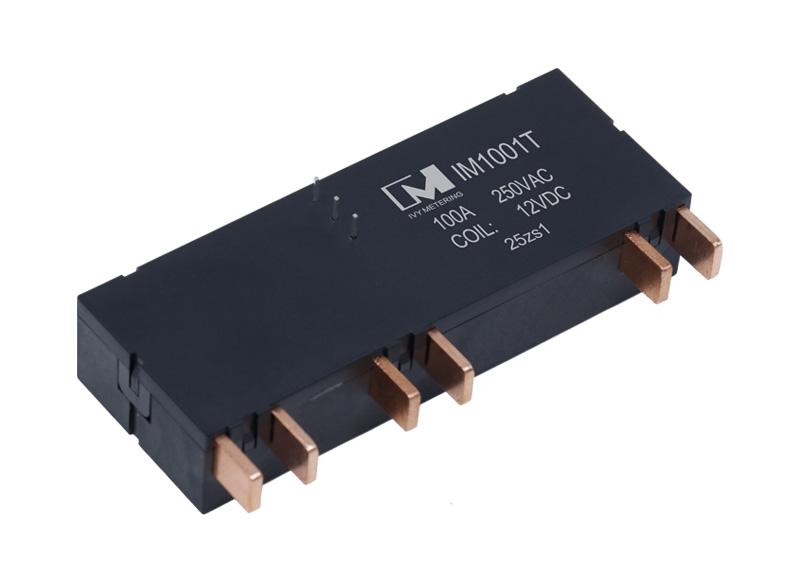

IM1001T is a 100A 3-phase latching relay(coil voltage 6~48VDC) built for the global metering market. This relay is able to switch 100 Amps while still maintaining a very low temperature rise. It is also available with an integrated CT/Shunt. IM1001T is ideally designed for electric meters for the global metering market. Our metering customers have been pleased with the product's performance and reliability. Given our ability to understand our customer's needs, we've been able to design, build, and test customized solutions that allow them to receive our products and plug them right into their systems without additional assembly.
It's main characteristics as follows:
Three poles contact, three way control, contact form: 3A/3B
Maximum switching current 100A, with auxiliary switch
UC3 capability as per IEC 62052-31, RoHS compliant
Custom Assemblies with Integrated Shunts, Flex-wire and Copper Extensions and Brass Terminals
Wide Application for Energy Meter, Electrical Panels, Power Distribution Cabinet, Ligting System, Industrial Control.
Product Parameter
Rated Load: 100A 250VAC
Contact Form: 3A/3B
Rated Coil Consumption: 3.0/6.0W(30ms)
Dielectric Strength: 4kV
Compact Size:98.6*35.5*18.8mm
Contact Material: AgSnO2
Max. Switching Power: 25000VA
Contact Resistance; <1.0mΩ
Pick-up Time; 30ms
Release Time: 30ms
Electrical Endurance; 10000 Cycles
Mechanical Endurance; 100000 Cycles
Temp.Rise; ≦55k
Ambient Temperature: -40℃~70℃
Ambient Humidity; 5%~98%RH
