IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of latching relays spanning from 32A to 200A for single-phase Two-phase and three-phase switching purposes. our relays meet the industry's highest performance standards and offer the best value in the energy management market. In particular, we have developed an innovative relay switch-motor latching relay. IVY latching relays are highly customisable with many variants of terminal arrangements, which can be made to suit customer's needs. Shunts and current transformers can also be included to special order.

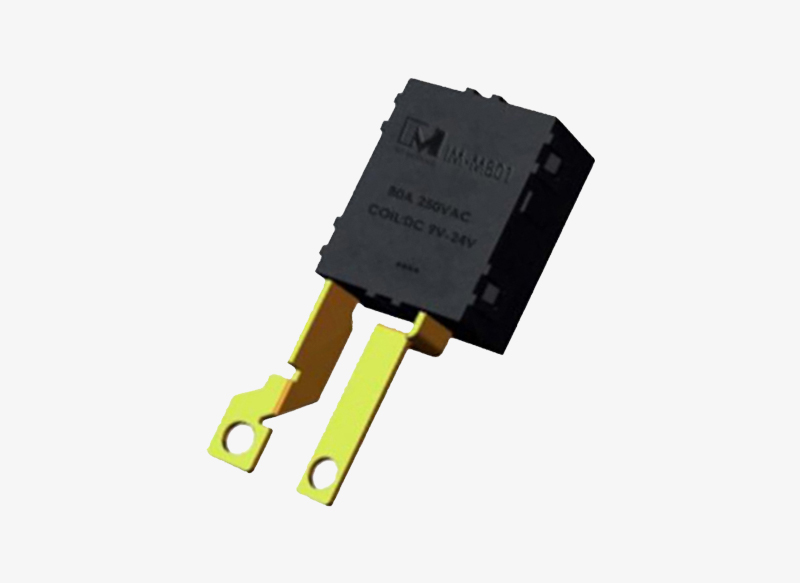

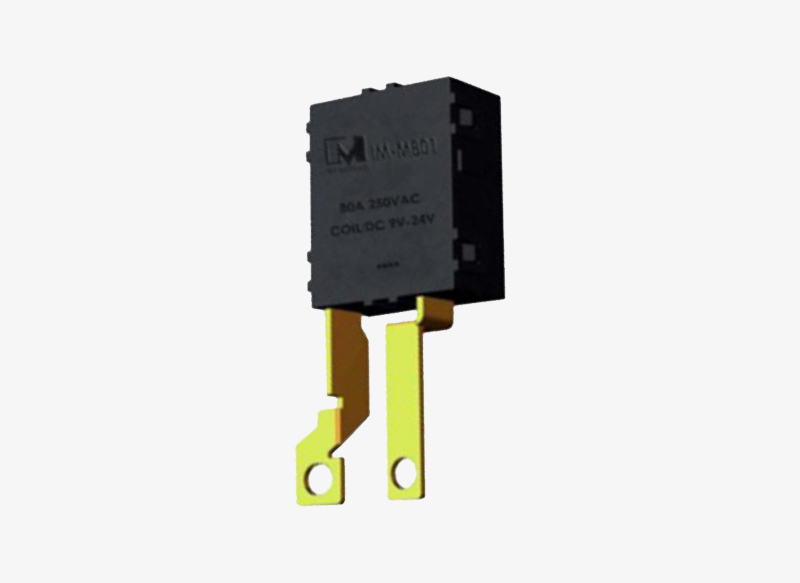

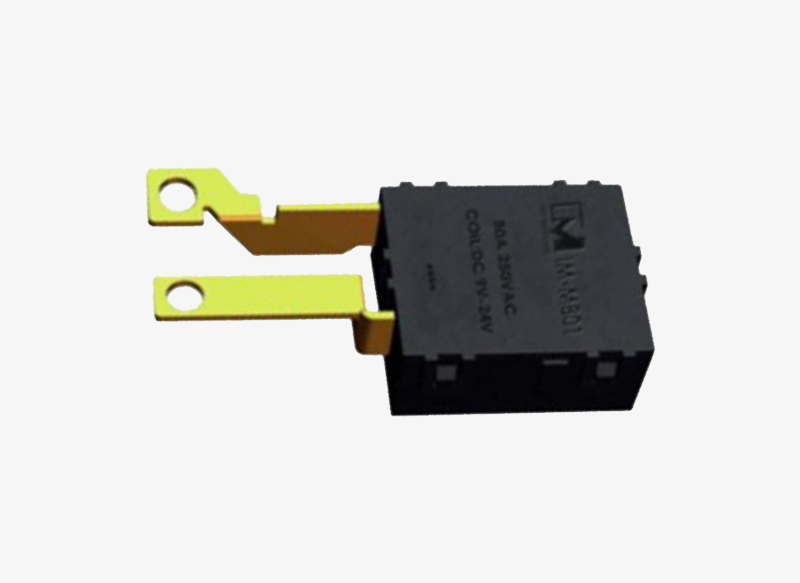

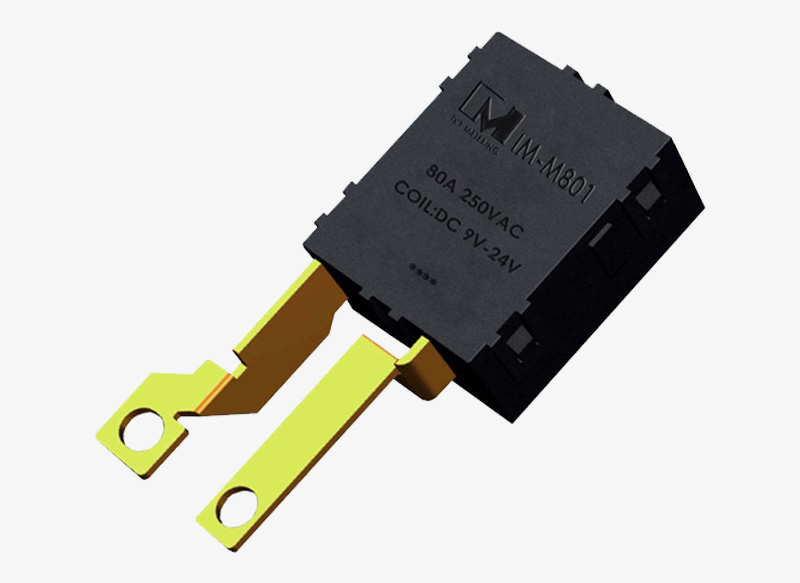

IM-M801 is a small industrial bistable latching power relay with continuous current up to 80A, and switching 80A 250VAC. Used in utility meters and for solar, EV charger and energy conservation. Compared with magnetic latching relay, motor latching relay with 500mT permanent magnetic immunity, prevent contacts from being interfered by magnetic fields. And, the size is much smaller.
Product Feature
Meet the requirements of anti-frequency magnetic field and magnetic interference in the national network.
According to RoHS requirements
Large switching power with mini body
Big strength of magnetic latching power, anti-shock of vibration
Pulse drive,economy of power consumption and no heat rising
Permanent magnetic strength to keep stability,and save power consumption
Small contact resistance ,and little self-consumption with reliable working
Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt
●Max Switching Current 80A
●Rated Coil Consumption: 1.5W(65ms)
●Dielectric Strength of 4kV
●Cost Efficiency & Surge Protection
●Compact Size:36.4*41*18.5mm
●RoHS Compliant Materials and Process
●Short Circuit per IEC 62055-31 UC3 Certificate
●Custom Assemblies with Integrated Shunts, Flex-wire and Copper Extensions and Brass Terminals
●Wide Application for Energy Meter,RCCB, EV Charger, IOT Device
Application Scenarios
1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation equipment, etc.
4) New Energy Field: EV charger, PV Inverter
