Product parameters
1. Product Introduction
Wifi current sensor refers to a sensor that can transmit current data via wireless network (WIFI). This sensor is usually used to monitor the current of equipment or lines, and send the data via WIFI to other devices or cloud platforms for analysis and storage.

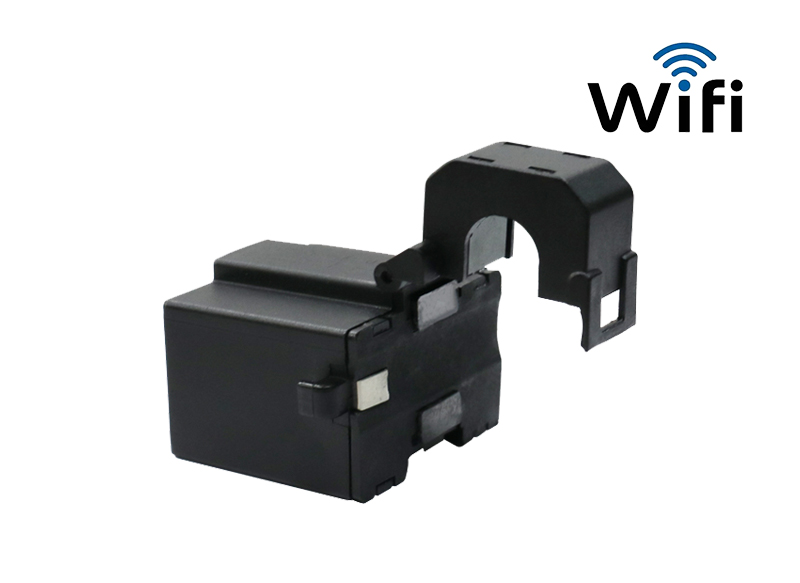

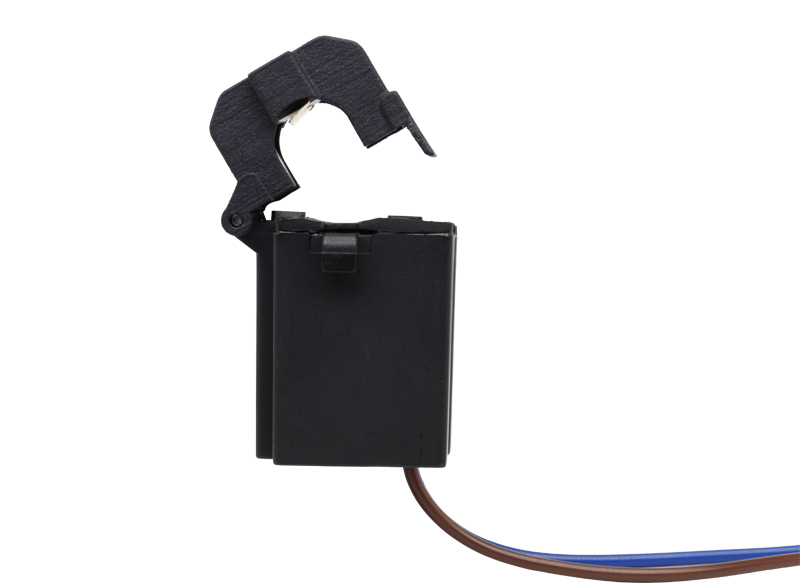

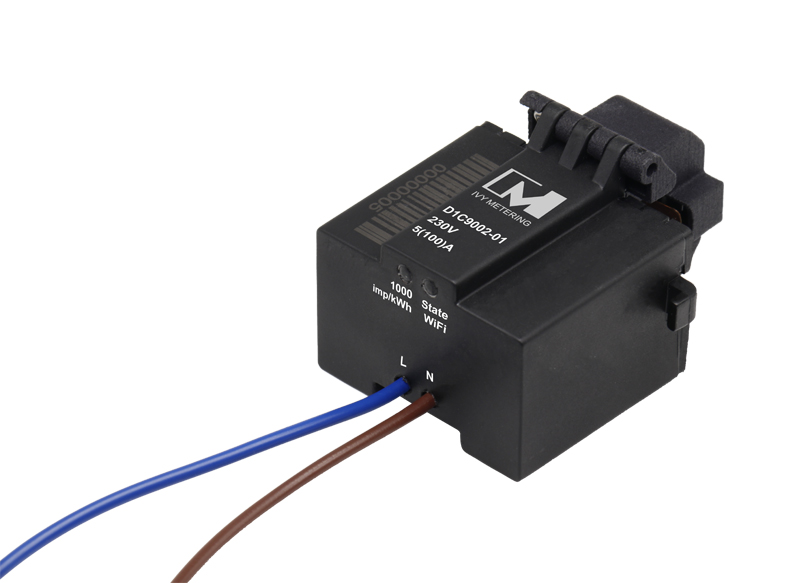

The D1C9002-01 split core smart current sensor uses high magnetic permeability ferrite as the magnetic material. It has the characteristics of high precision, stable performance, small size, easy installation, and no rust at the opening. It is suitable for measuring and monitoring parameters such as voltage, current, power, and power factor, and has WiFi and Bluetooth communication functions.
2. Main features
Wireless transmission: Supports WiFi/Bluetooth communication, convenient data transmission, and no wiring required.
Easy installation: The split-core structure, easy to disassemble, but need to turn off the power.
Remote Monitoring: Current/voltage/power/frequency data can be viewed anytime, anywhere via the network.
Data Reporting: Data can be reported to the cloud platform via Modbus and other protocols
Bidirectional Measurement: Measures forward and reverse current and power.
3. Technical parameters
Voltage input: 230V (±20%)
Current: 10(100)A
Starting current: 0.04%Ib(4mA)
Minimum current: 5%Ib(500mA)
Pulse constant: 1000imp/kwh
Measurement accuracy: 2%
Rated frequency: 50~60Hz
Threading hole diameter: ≤φ12mm
Temperature range: -20 ~ +60℃
4. Product Application
Smart home: monitor the power consumption of home appliances and realize intelligent power management.
Industrial automation: used for current monitoring of AC motors, lighting equipment, air compressors, and other equipment to achieve predictive maintenance
Energy management: monitor power consumption and optimize energy use in smart grids and building automation systems
EV Charger: measure the current output by the charging pile in real time and accurately, providing accurate data for billing and electricity management.
