What is a power latching relay?
Latching relays are commonly used in low power consumption or high temperature applications where applying. coil power for a long time cannot be afforded due to power consumption or self-heating of the coil. Instead of a. continuous voltage applied to the coil, they are operated with short voltage pulses instead.
IVY specializes in the development and manufacturing of high-quality latching relays. We offer a line of high-power latching relays for single-phase, two-phase, and three-phase switching purposes. Our relays met the industry's highest performance standards and offer the best value in the energy management market. In particular, we have developed an innovative relay switch-motor latching relay.

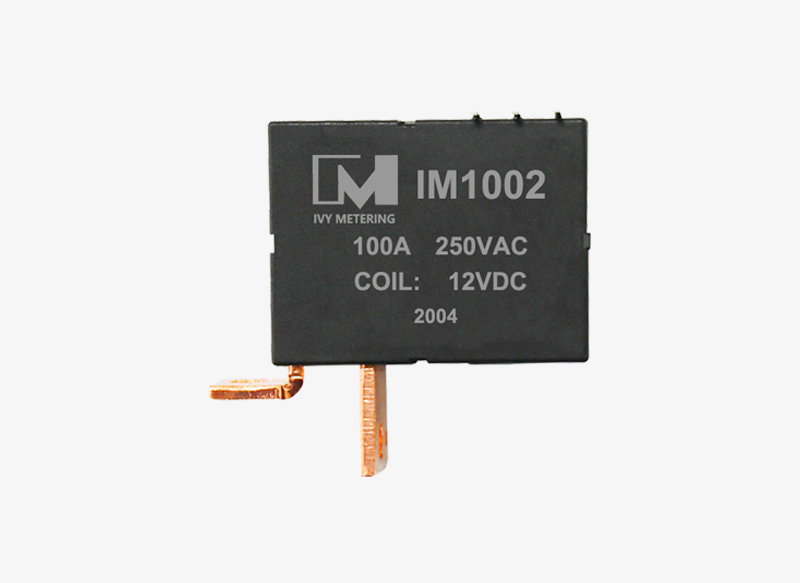

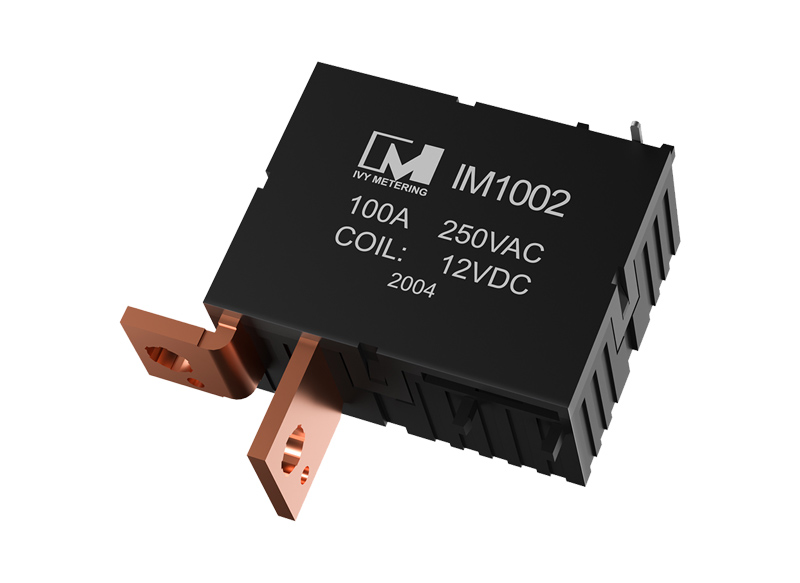

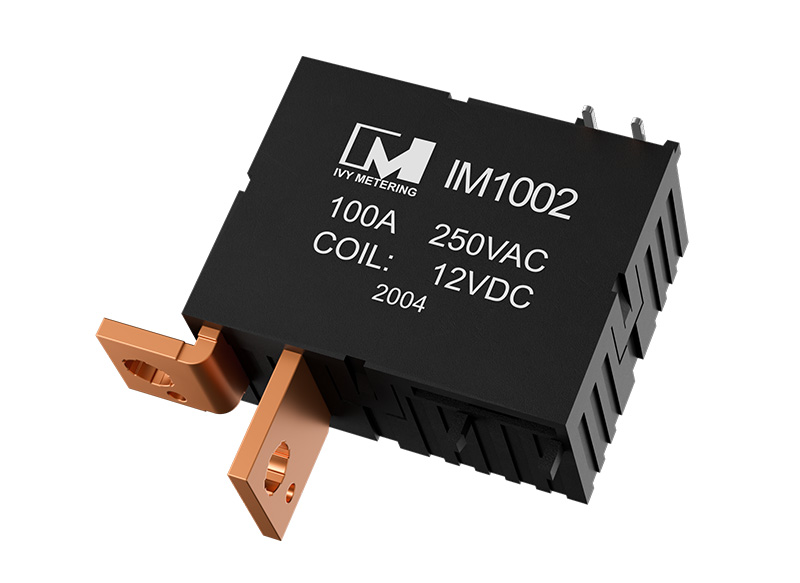

IM1002 is a 100A bistable magnetic latching relay(coil 6~48vdc), widely used in smart grid, remote control, combination switch, electrical power, electronic energy meter, automatic meter reading system, Lamp controller, home appliance, and automatic control equipment.
Product Features
100A 250VAC switching capability
Single coil & double coils are all available
Low power consumption, Pulse-driven operation
Strong resistance ability to shock and vibration
Dielectric strength 4kv(coil to contacts)
Small in size, Long service life, High reliability
Environmentally friendly products(Accord RoHS)
Comply with IEC62055-31 UC2 UC3 standard
Product Parameters
Rated Load: 100A 250VAC
Contact Form: 1A/B
Rated Coil Consumption: 1.5 / 3W(20ms)
Contact Material AgSnO2
Compact Size: 39*30*18.5mm
Max. Switching Voltage: 277VAC
Max. Switching Power: 27700VA
Contact Resistance: ≤1mΩ
Pick-up Time: 20ms
Release Time: 20ms
Electrical Endurance: 5000 Cycles
Mechanical Endurance: 100000 Cycles
Temp.Rise: ≤55K When Ambient 40℃
Ambient Temperature: -40℃~70℃
Ambient Humidity: 45%~90%RH
Application Scenarios
1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation equipment, etc.
