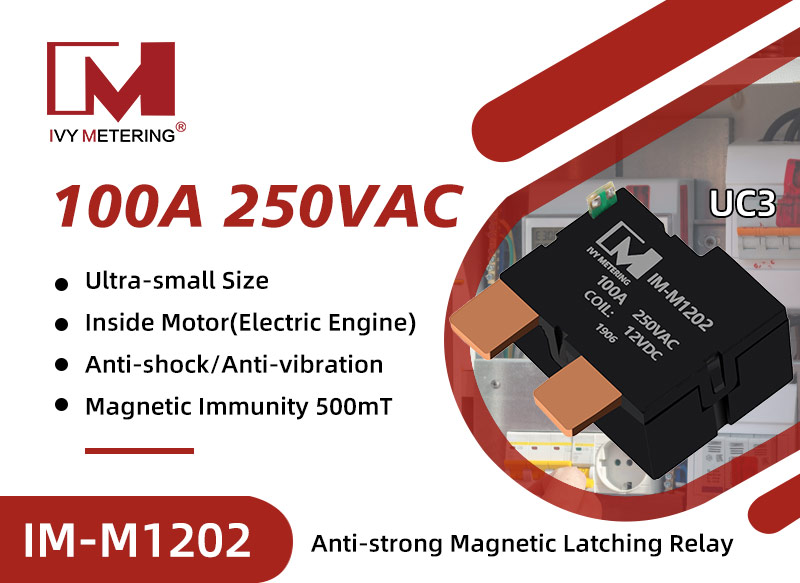

IM-M1202 100A Motorized Latching Relay

Contact Form:1A/B

Switching Capacity:100A,250VAC

Permanent Magnetic Immunity to 500mT

Power Consumption:3W(80ms)

Compact Design of Dimension:29*23.5*16mm

Custom assemblies available with flex wire and/or copper straps, and/or with integrated shunt

RoHS compliant materials and process.

IEC62055-31 UC3 Certified with Appearance Patent

IM-M1202 Anti-theft 100A 250VAC Industrial Control Coil 12VDC Small Motor Electrical Latching Relay


Application Scenarios

1) Smart meters: IC card meters, prepaid meters, single-phase meters, three-phase meters.
2) Reactive power compensation: synchronous switch, composite switch, smart capacitor.
3) Intelligent control: smart home, solar street light control, automation equipment, etc.


Product Parameter

Basic DataDimensions(mm)29×23.5×16
Weight ( g )≈40g
Contact Arrangement1A/1B
Contact MaterialAgSnO2
Ambient Temperature-40~+75ºC
Vibration10~50Hz,1.5mm
Shock1000m/s²,(100g)
Specifications DataPower Consumption<3W
Operating Voltage10.5-16V
Max. Switching Current100A
Surge Current6000A/10ms
Motor Resistance32(1±15%)Ω
Contact Voltage<60mV
Contact Resistance≤1.0
Dielectric StrengthMotor to Contact>4000VAC,50/60Hz 1min
Across Open Contact>2000VAC,50/60Hz 1min
Electrical Life(120 cycles/H)10,000
(resistance 5 k + perceptual 5 k, co ϕ = 0.5)
Mechanical Life(3600 cycles/H)100,000
Pulse Time60ms(Advise 60ms~100ms)
Picking-up Time≤60ms
Release Time≤60ms
Insulation Resistance>1000MΩ(500VDC)
